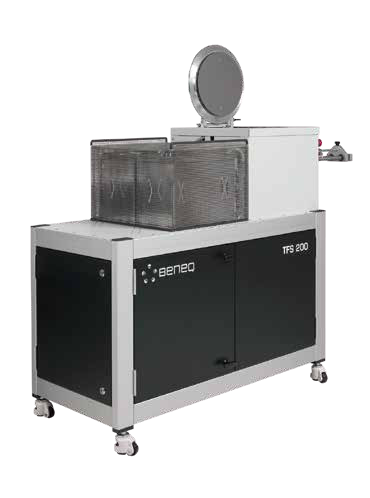

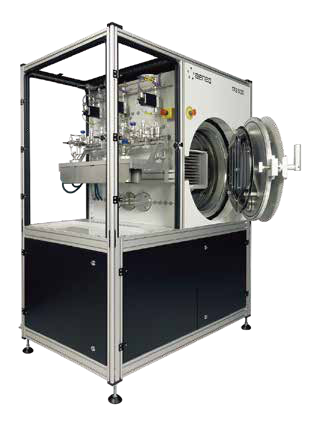

TFS Series
The TFS series is designed for scientific research and enterprise development, offering flexible ALD platforms that can be customized and upgraded to meet diverse user needs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Process Type | Thermal ALD |
| Process Type | PEALD |
| Substrate Type TFS200 | 200×200mm 3D components, powder materials |
| Substrate Type TFS500 | 300×370×470mm glass substrates, 3D components, powder materials |
| Substrate Loading | Automatic |
| Substrate Loading | manual |
| Process Temperature Range | 25-500°C |
| Integrable Modules | Glove box/Load-lock/Cluster |
| Reaction Chamber Quantity and Size TFS200 | 8 chambers (4 heated, 4 unheated), max size 200mm |
| Reaction Chamber Quantity and Size TFS500 | 5 chambers (4 heated, 1 unheated), max size 300mm |
| Plasma Type (PEALD) | CCP |
| Plasma Type (PEALD) | power adjustable |
| Main Equipment Dimensions TFS200 | 1325×600×1298mm |
| Main Equipment Dimensions TFS500 | 1600×900×1930mm |
