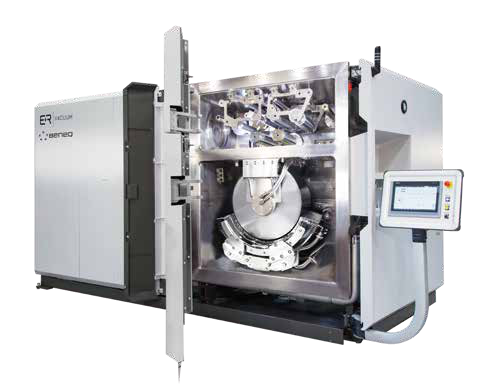

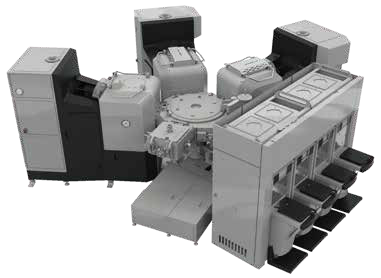

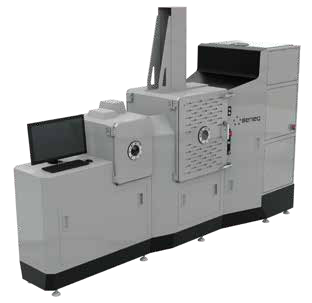

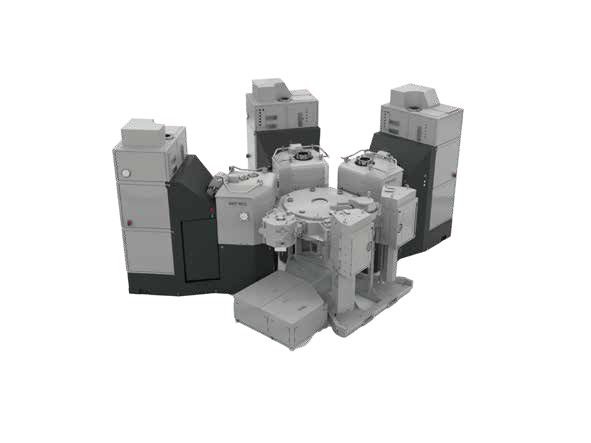

P Series
The P series is designed for industrial-scale atomic layer deposition (ALD) production, offering mature systems for batch manufacturing with high uniformity and efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Process Type | Thermal ALD |
| Process Temperature Range | 25-550°C |
| Substrate Type | Silicon wafers, glass, metal materials, polymer 3D objects |

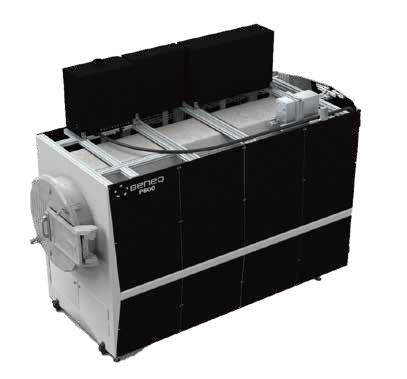

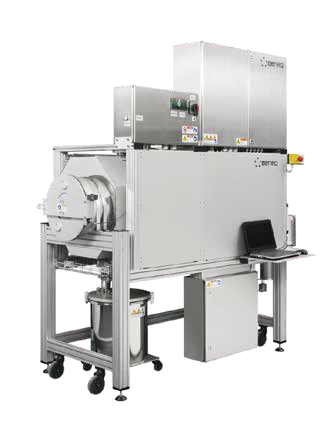

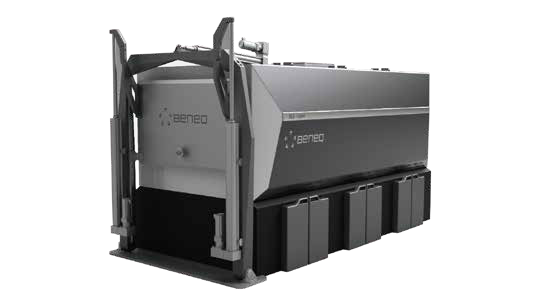

| Vacuum Chamber Size | ø400mm (P400A), ø800mm (P800), ø1700mm (P1500) |
| Reaction Chamber Loading and Size | 240×240×720mm with 23 shelf cassette, 370×470×25mm with 2 shelf cassette (P400A); 550×310×700mm, 380×380×900mm, 730×1200×10mm (P800); 1300×2400×750mm (P1500) |
| Precursor Volume | 5 standard containers, user-defined options (P400A, P800); maximum 16.2L (P1500) |
| Main Equipment Dimensions | 2400×930×2420mm (P400A), 3200×1340×2460mm (P800), 6195×2480×2600mm (P1500) |
