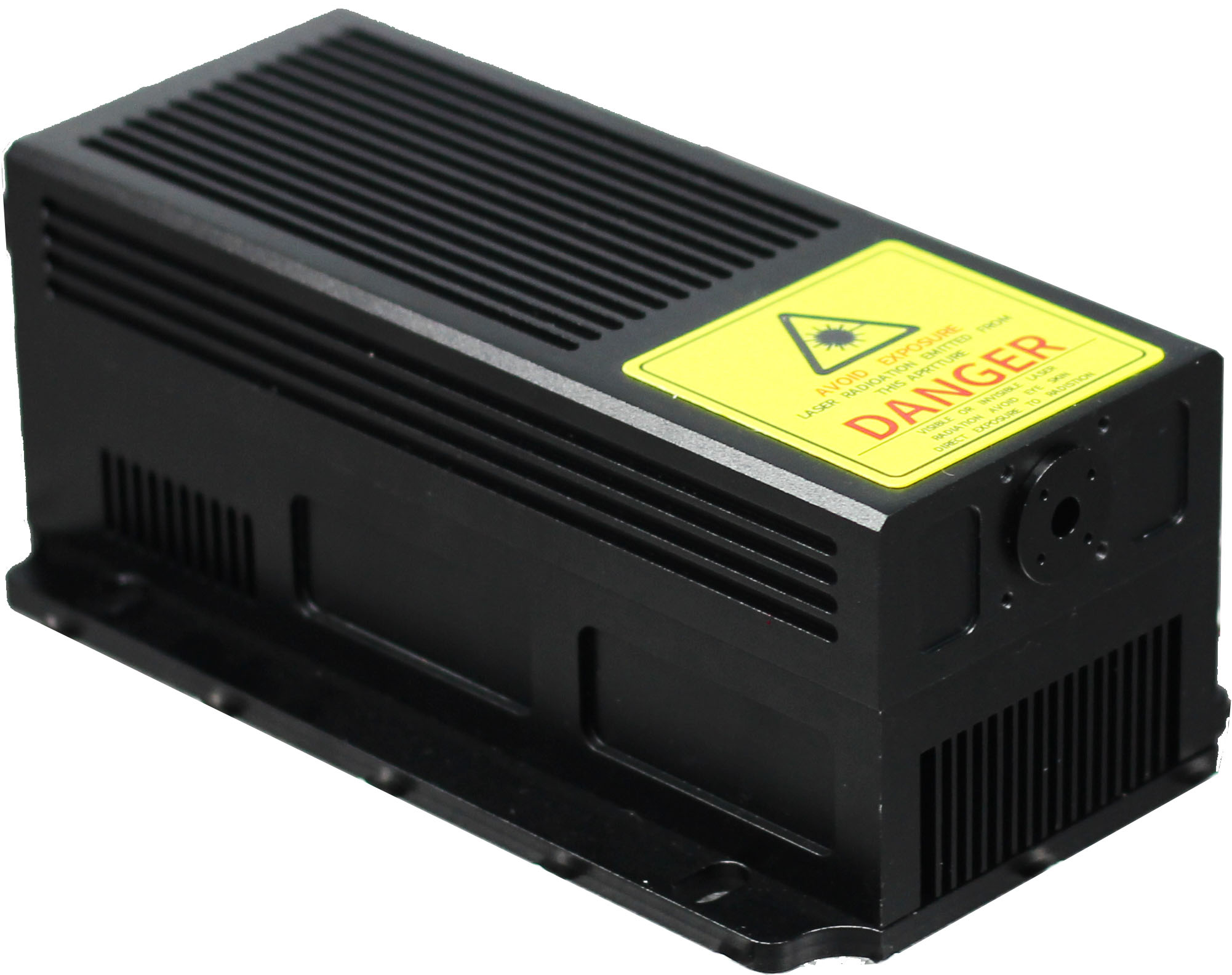

High-Power Laser Module
This high-power laser module features stable performance and adjustable power output, making it suitable for various applications such as scientific research, medical treatment, and industrial processing.
Save to Favorites
Overview
Specifications

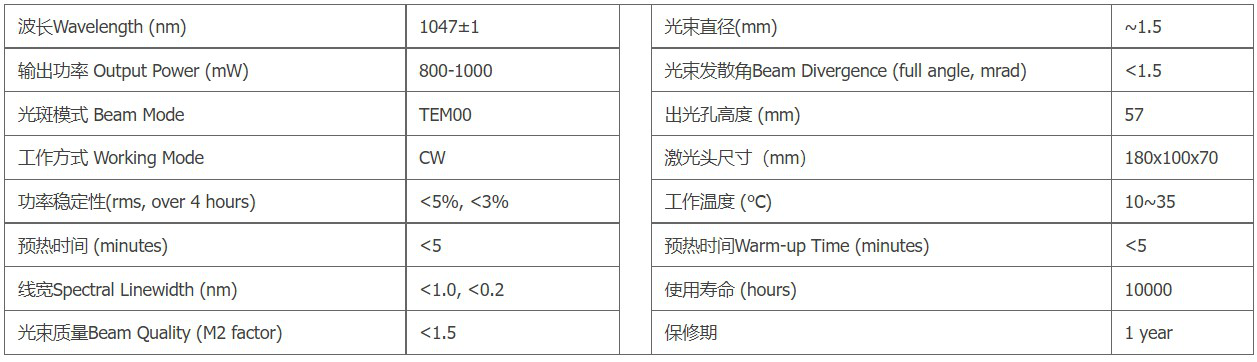

| Parameter | Value |
|---|---|
| Wavelength(nm) | 1047±1 |
| Output Power(mW) | 800-1000 |
| Beam Mode | TEM00 |
| Working Mode | CW |
| Power Stability (4 hours) | <5%, <3% |
| Warm-up Time(minutes) | <5 |
| Spectral Linewidth(nm) | <1.0, <0.2 |
| Beam Quality (M2 factor) | <1.5 |
| Beam Divergence (full angle, mrad) | ~1.5 |
| Beam Diameter(mm) | 57 |

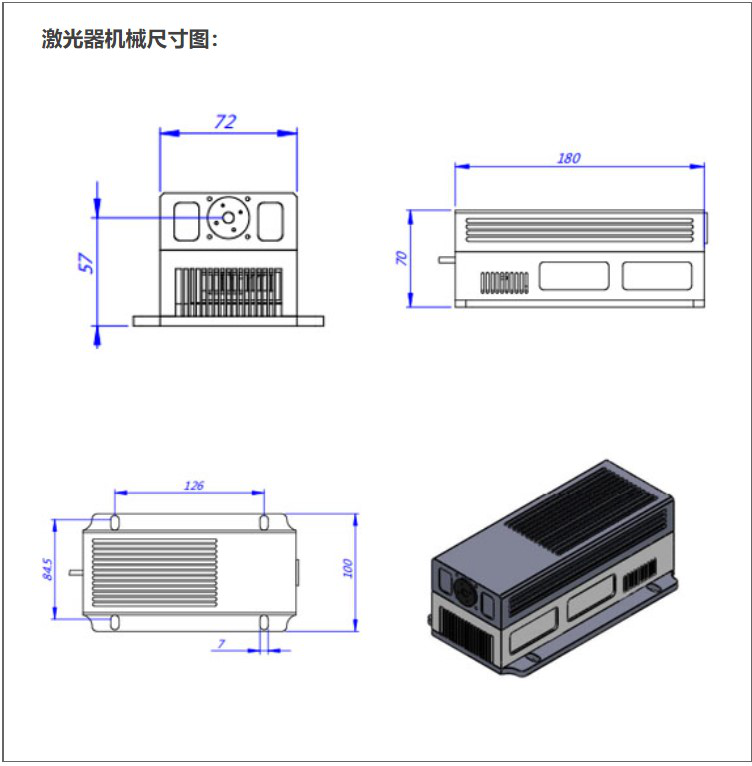

| Dimensions(mm) | 180x100x70 |
| Operating Temperature(°C) | 10-35 |
| Maximum Up-time(minutes) | <5 |
| Lifetime(hours) | 10000 |
| Warranty | 1 year |
