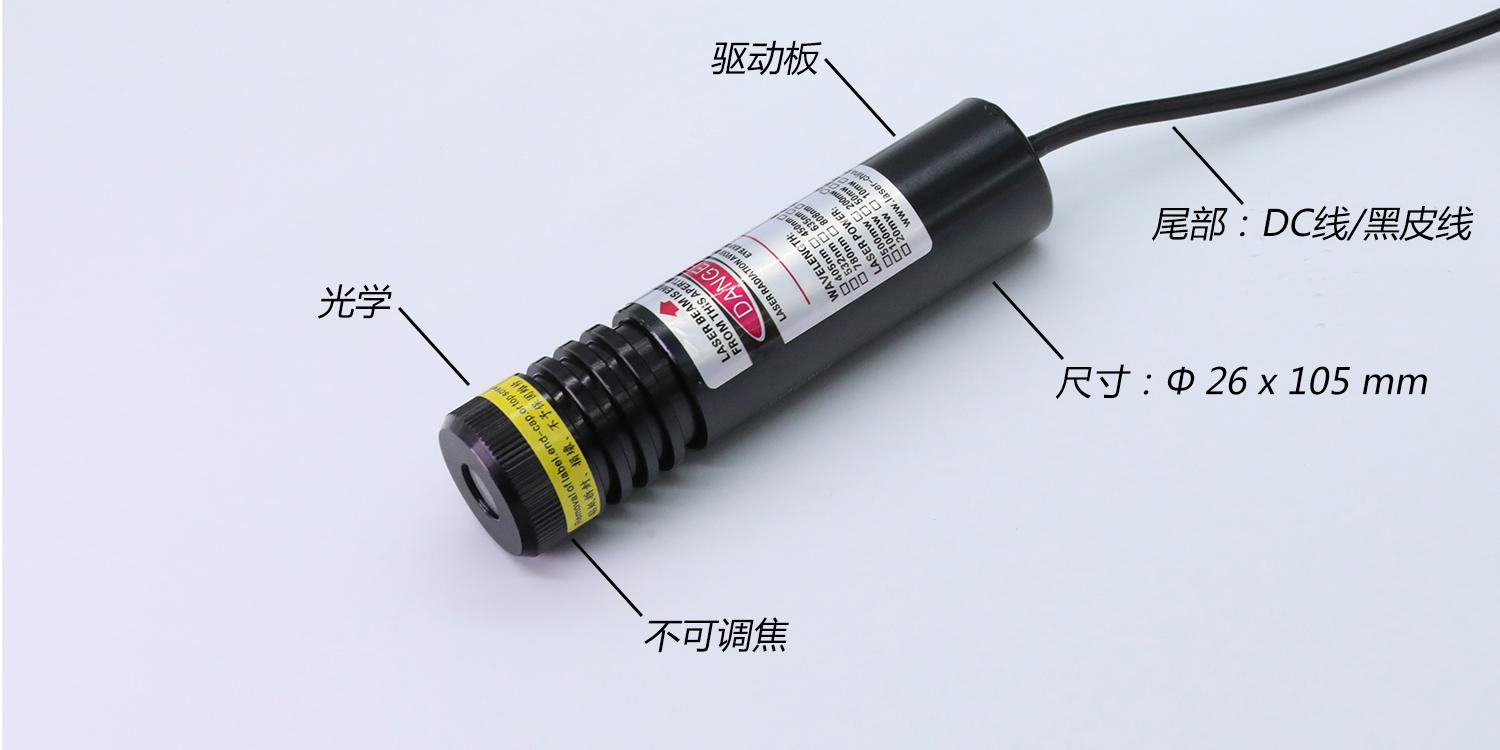

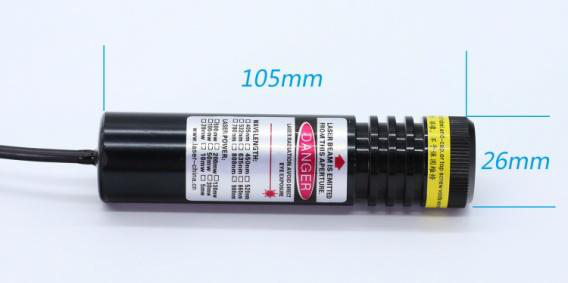

Laser Module
This laser module is designed for precision alignment and positioning applications, featuring stable performance and compact design.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) 515-520nm | 515-520nm |
| Wavelength Error (nm) 515-520nm | ±5nm |
| Power (mW) 515-520nm | 10-80mW |
| Beam Type | Line |
| Divergence Angle | 120° |
| Linearity | ≤0.1% |
| Wavelength (nm) 635-650nm | 635-650nm |
| Wavelength Error (nm) 635-650nm | ±5nm |
| Power (mW) 635-650nm | 100-130mW |
| Laser Drive Power Mode | CW/TTL |
| Operating Voltage (V) | 3-5/12-24 |
| Operating Current (mA) 515-520nm | <200mA |
| Operating Current (mA) 635-650nm | <250mA |
| Tail Wire | DC wire/black sheath |
| Protection | Reverse connection protection, anti-interference |
| Storage Temperature | -40~85°C (standard) |
| Service Life | ≥10000 hours |

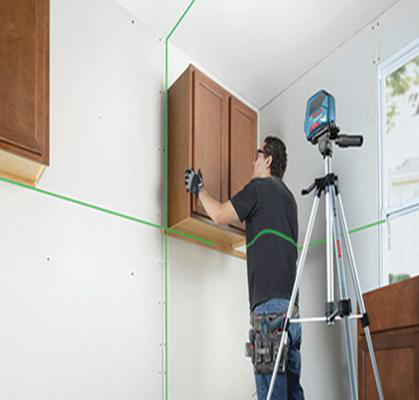

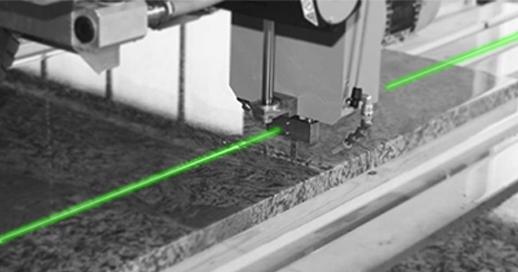

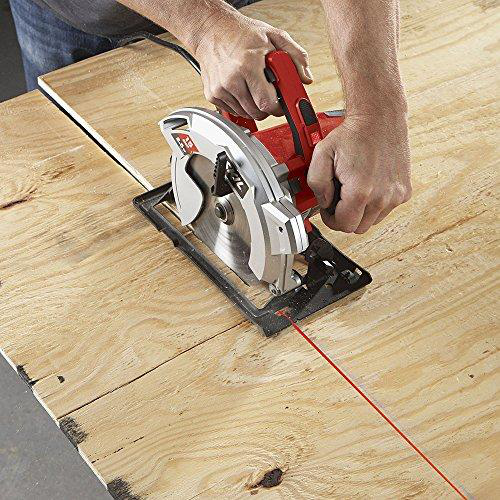

Applications
Key Features
Datasheet
Supplier Information
