Laser Module

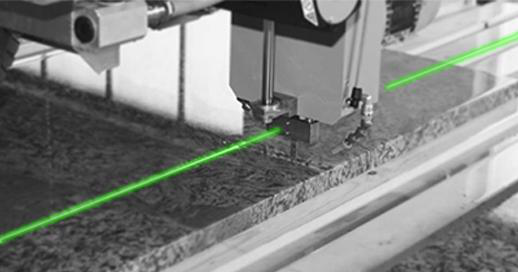

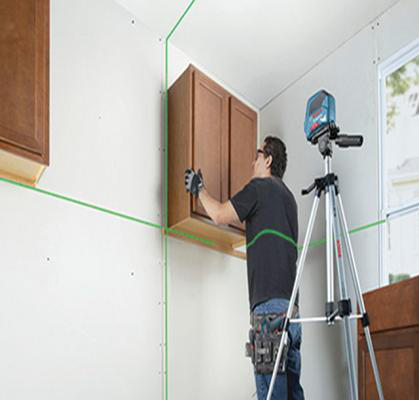

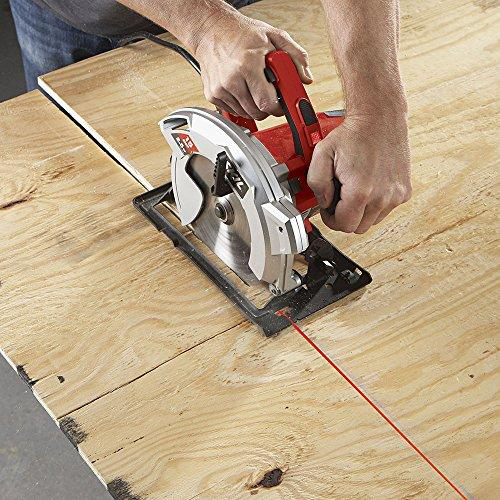

This laser module features adjustable focus, compact design, and high precision, making it ideal for various alignment and positioning applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) 515-520nm | 515-520nm |
| Wavelength Error (nm) 515-520nm | ±5nm |
| Power (mW) 515-520nm | 0.5-10mW |
| Beam Type 515-520nm | Line/Cross/DOE |
| Divergence Angle (°) 515-520nm | 5-130° |
| Linearity 515-520nm | ≤1% |
| Focal Distance 515-520nm | Adjustable |
| Working Distance 515-520nm | Within 2m |
| Wavelength (nm) 635-650nm | 635-650nm |
| Wavelength Error (nm) 635-650nm | ±5nm |
| Power (mW) 635-650nm | 0.1-10mW |
| Beam Type 635-650nm | Line/Cross/DOE |
| Divergence Angle (°) 635-650nm | 5-130° |
| Linearity 635-650nm | ≤1% |
| Focal Distance 635-650nm | Adjustable |
| Working Distance 635-650nm | Within 2m |
| Laser Drive Mode | CW/TTL |
| Operating Voltage (V) | 3-5/12-24 |
| Operating Current (mA) | <100/<35 |

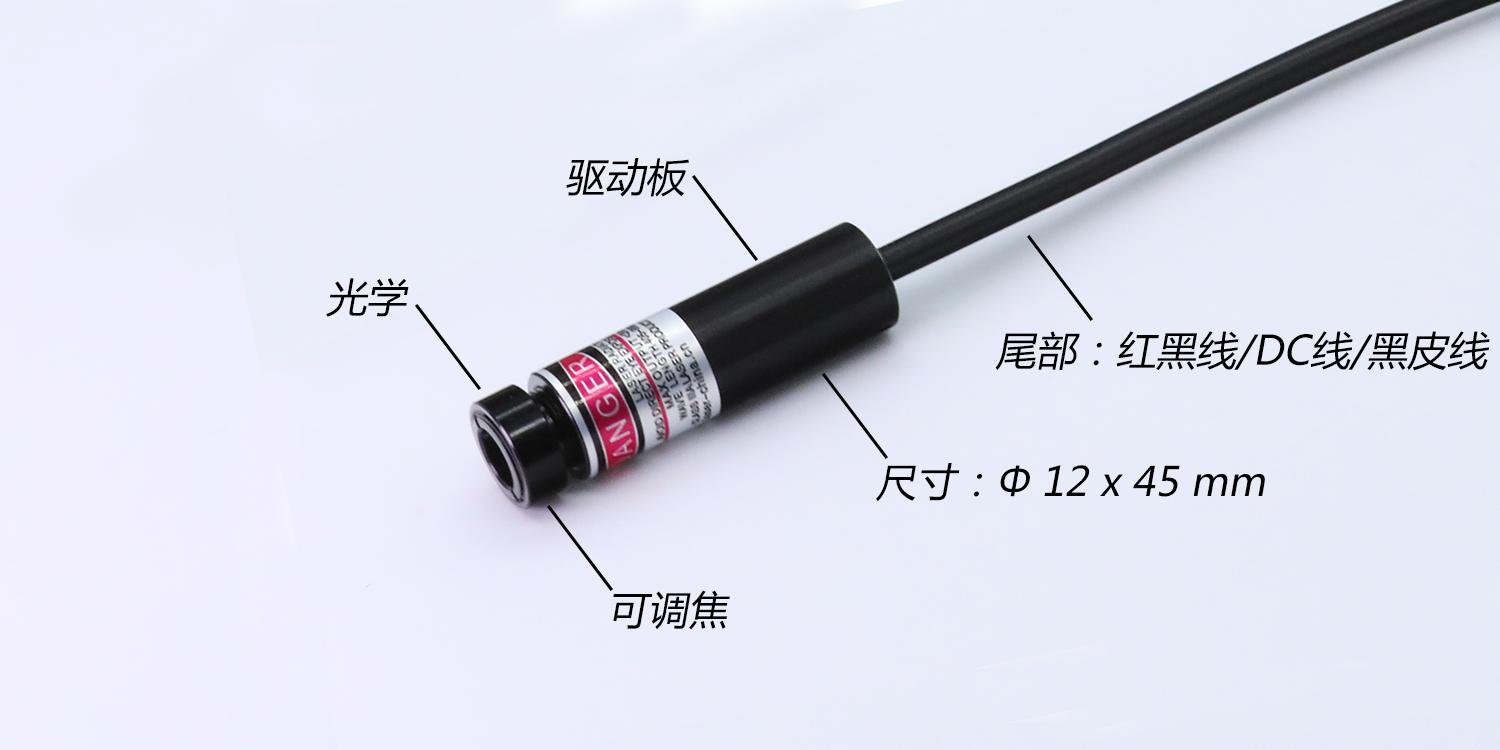

| Tail Wire | Red/Black DC wire/Black leather wire |
| Protection | Anti-reverse connection, anti-interference |
| Operating Temperature (°C) | -10~50 (Standard) |
| Storage Temperature (°C) | -40~85 (Standard) |
| Service Life (hours) | ≥10000 |
Applications
Key Features
Datasheet
