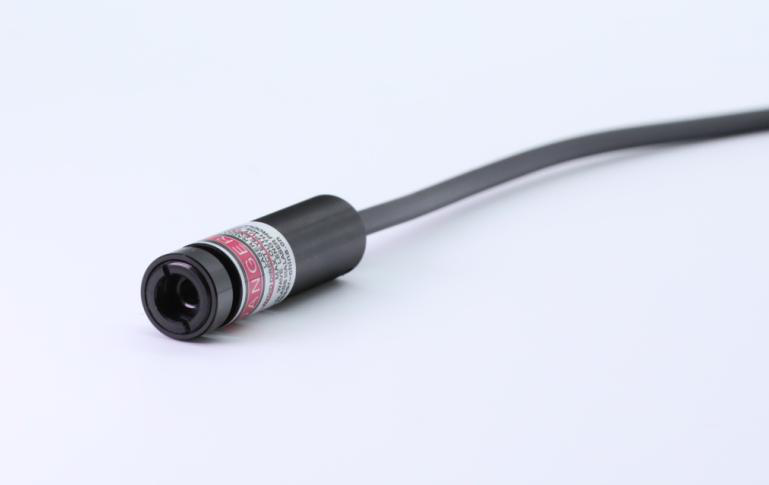

DSV Series Machine Vision Structured Light Source
The DSV Series Machine Vision Structured Light Source is designed for high precision and stability, offering uniform and bright illumination for 3D machine vision and 3D wheel scanning applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Output Power | 500mW±10% |
| Angle | 20°±1°×30°±1° |
| Line Width | ≤150μm |

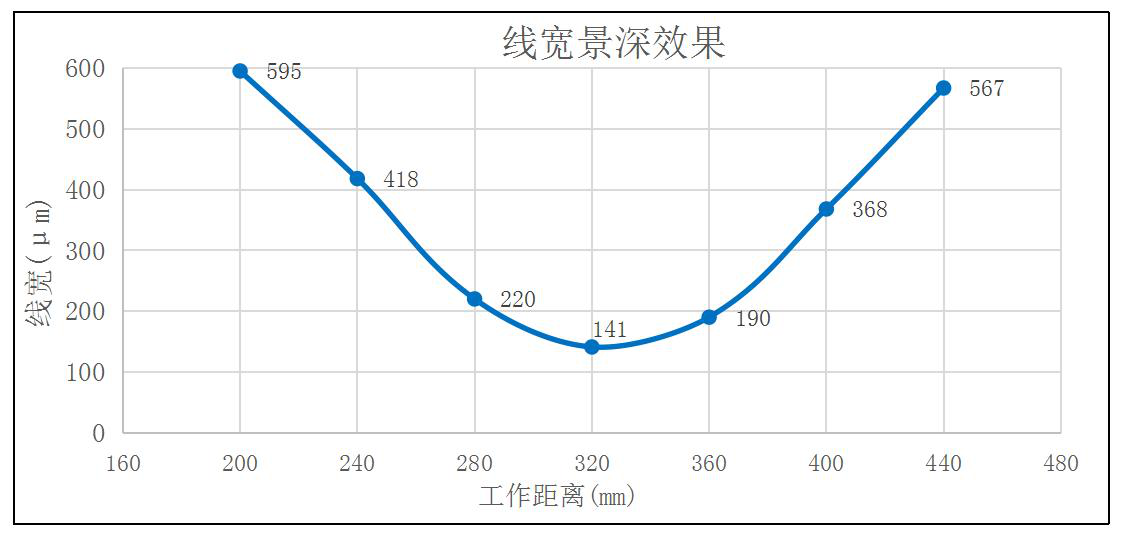

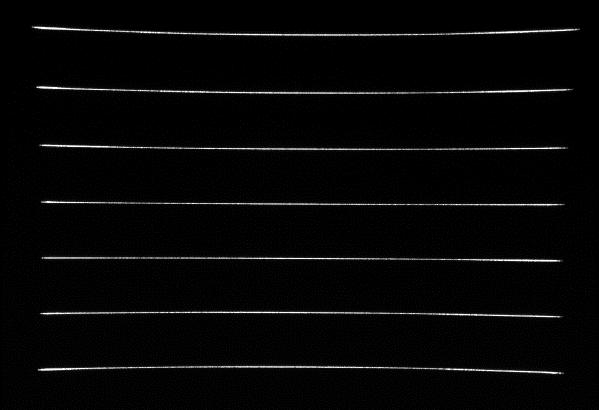

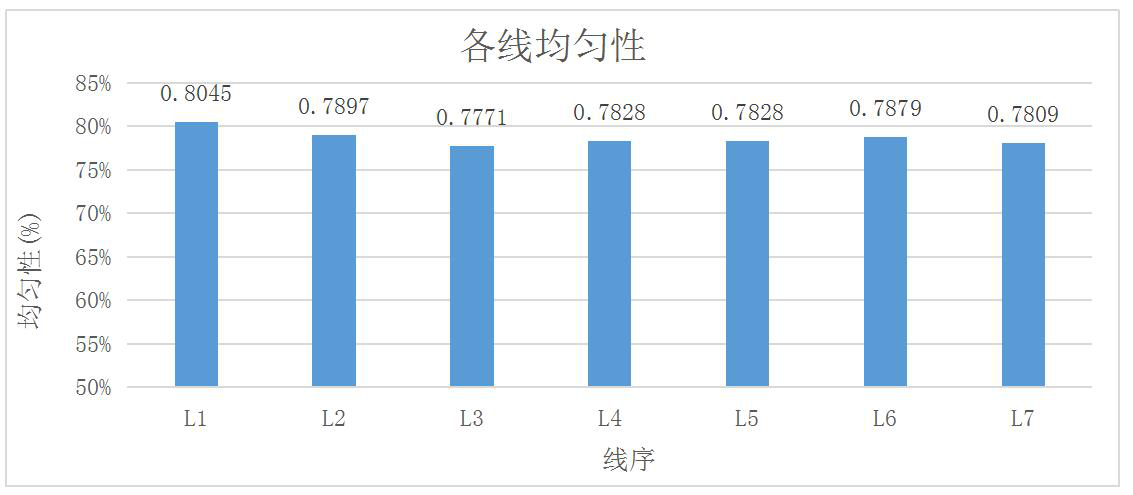

| Line Depth | 线宽≤600μm@320±120mm |
| Single Line Uniformity | ≥70% |
| Line Uniformity | ≥75% |
| Operating Voltage | 12V±5% |
| TTL Switch | 12V, high-level effective |
| TTL Switch Frequency | ≤15kHz |
| TTL Switch Speed | Rise time≤5μs, fall time≤5μs |

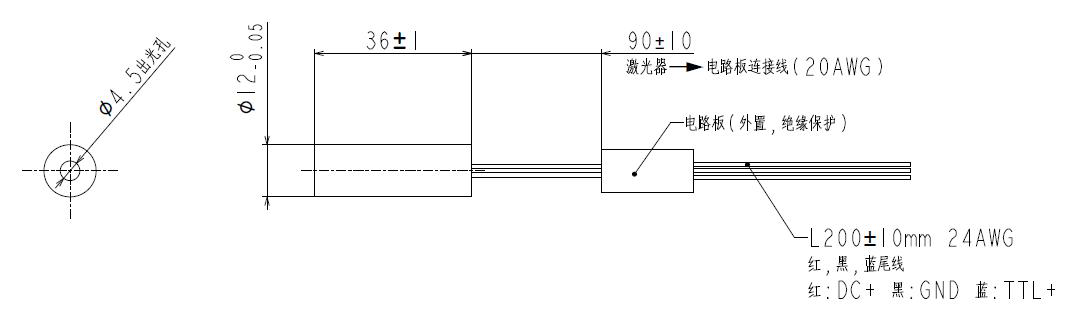

| Tail Line Specifications | UL3239#24AWG, red: DC12V+, black: GND, blue: TTL+ |
| Storage Temperature | -20℃~100℃ |
| Structural Dimensions | φ12.0±0.05mm×36±1mm |
| Tail Line Length | L200±10mm |
