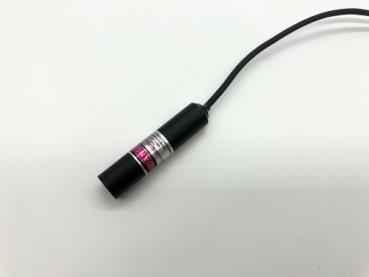

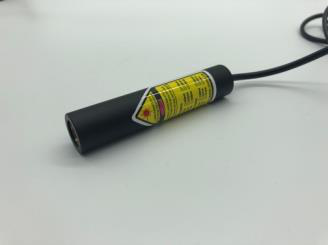

Machine Vision Line Laser

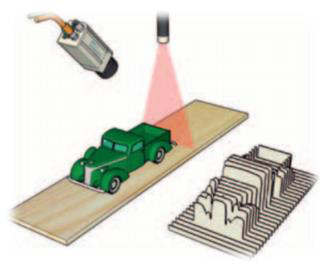

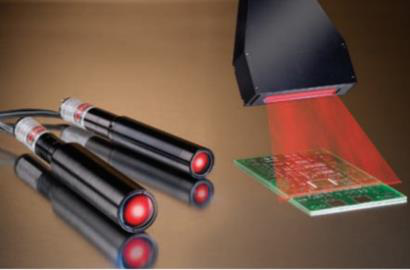

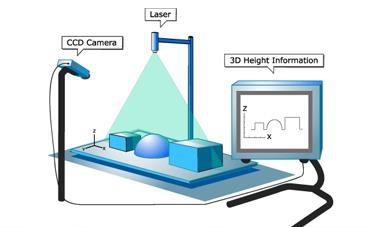

The machine vision line laser series features uniform light distribution, clear edges, and high reliability. It is widely used in inspection equipment, machine vision, scanning, large air volume, construction, and other fields for one-dimensional and three-dimensional data acquisition.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Error (nm) 405-450nm | ±10nm |
| Wavelength Error (nm) 515-520nm | ±5nm |
| Wavelength Error (nm) 635-650nm | ±5nm |
| Wavelength Error (nm) 780-980nm | ±10nm |
| Laser Power (mW) 405-450nm | 0.1-200mW |
| Laser Power (mW) 515-520nm | 0.1-80mW |
| Laser Power (mW) 635-650nm | 0.1-180mW |
| Laser Power (mW) 780-980nm | 1-500mW |
| Divergence Angle | 10°/15°/30°/45°/50°/60°/75°/90°/110° |
| Linearity | <0.3% |

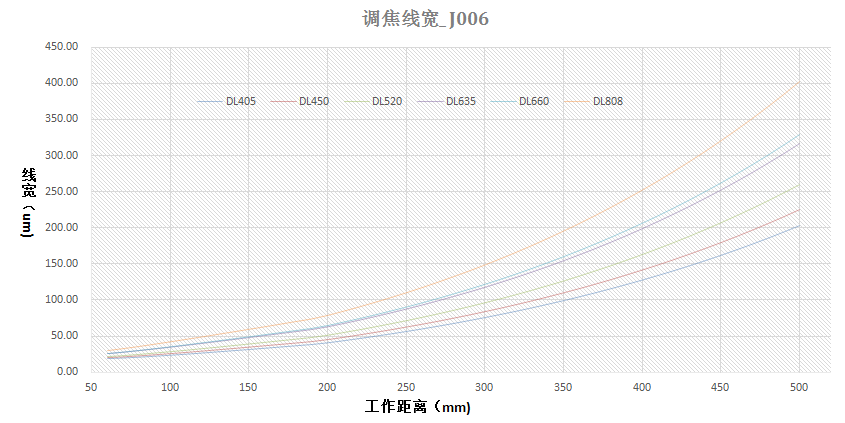

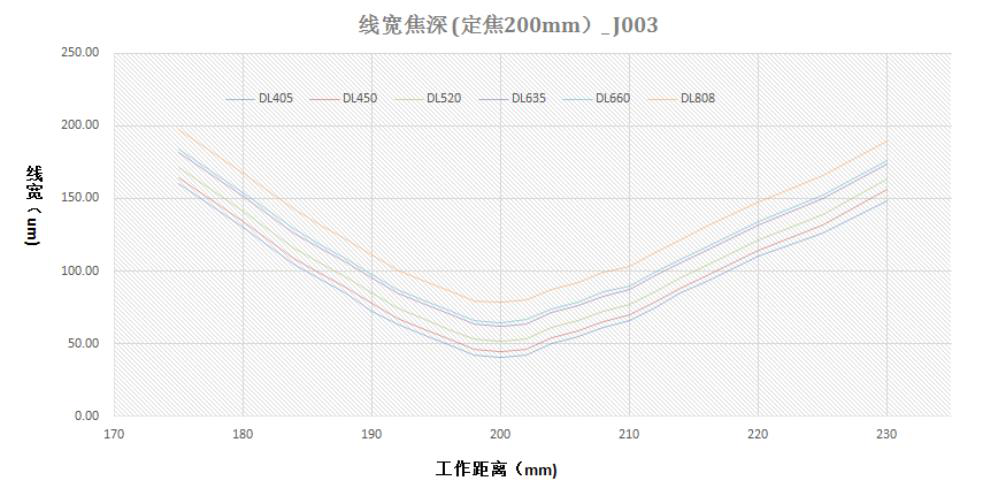

| Optimal Line Width (1/e2) 405-450nm | <20μm |
| Optimal Line Width (1/e2) 515-520nm | <30μm |
| Optimal Line Width (1/e2) 635-650nm | <40μm |
| Optimal Line Width (1/e2) 780-980nm | <60μm |
| Brightness Uniformity | ≥70% |
| Laser Drive Mode | CW/TTL |
| TTL Modulation Frequency (kHz) | 15kHz |
| Rise/Fall Time (μsec) | <15 |
| Operating Voltage (V) | 3-5V/12-24V |
| Operating Current (mA) 405-450nm | <100mA |
| Operating Current (mA) 515-520nm | <200mA |
| Operating Current (mA) 635-650nm | <250mA |
| Operating Current (mA) 780-980nm | <700mA |
| Power stability | <10%, -10° to 50° (48 hours) |
| Electrical Connection | DC/XS12/M12/JST/MOLEX/others |
| ESD Protection | Level 4 |
| Storage Temperature | -40° to 70° (standard) |
| Service Life | 10000 hours |
Applications
Key Features
Datasheet
