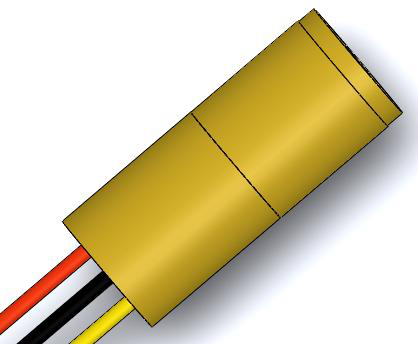

Red Dot Laser Miniature Laser Module
This miniature laser module features a small spot size, excellent stability, and deep depth of field, making it ideal for precision applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Central Wavelength | 650nm |
| Working Distance DSP6505T0717-3 | 105mm |
| Working Distance DSP6505T0717-4 | 48mm |

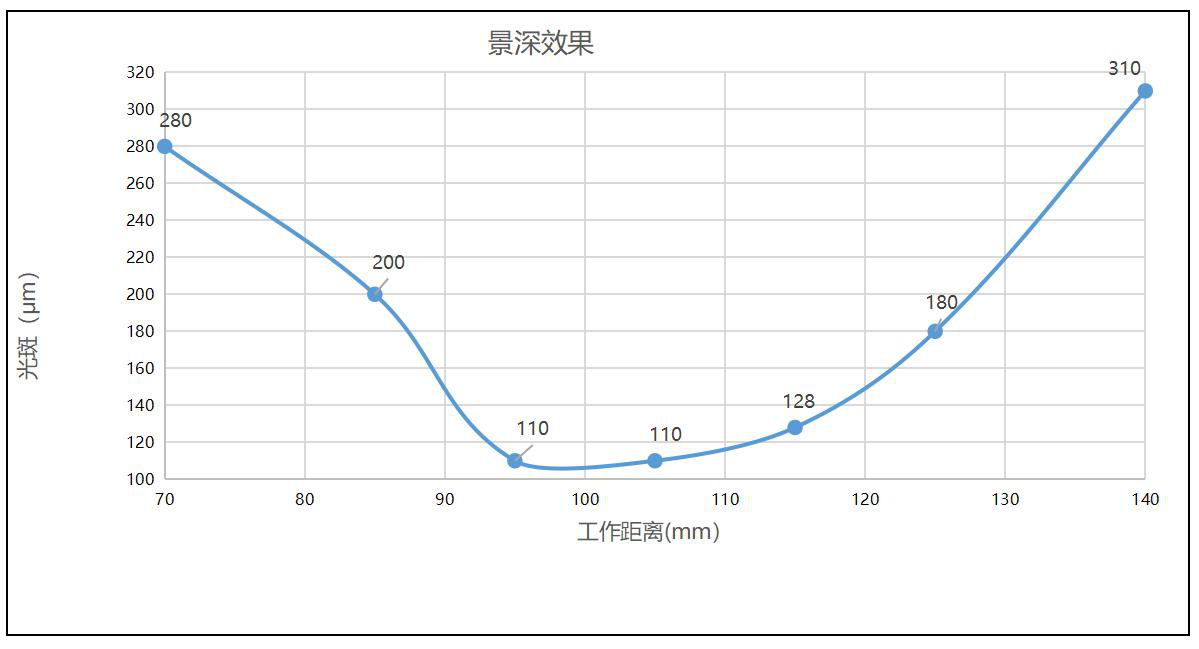

| Spot Size/Depth of Field DSP6505T0717-3 | ≤120μm@105mm (≤320μm@105±35mm) |

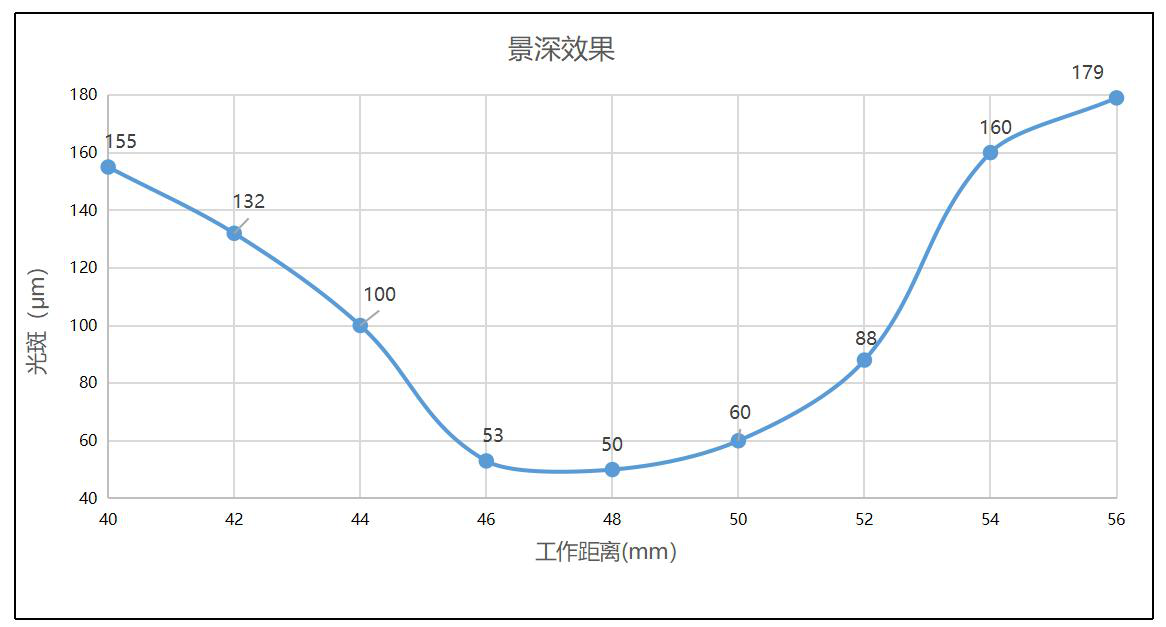

| Spot Size/Depth of Field DSP6505T0717-4 | ≤50μm@48mm (≤180μm@48±8mm) |
| Operating Voltage | 3.3(±5%)V |
| Modulation Mode | Analog |
| Analog Modulation Range | 0.7-3.3V |
| Laser Protection | ESD, Level 3a, external circuit not included |

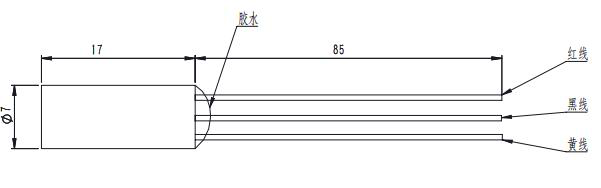

| Cable | L85mm 30AWG, Red: DC3.3V+, Yellow: Analog+, Black: GND |
| Operating Temperature | -20°C~70°C |
| Vibration and Shock Test | GB/T 2423.10, GB/T 2423.5 |
