D-XXP65/200-01 & D-XXP65/250-01
High-performance photodetectors designed for precise optical signal detection.
Save to Favorites
Overview

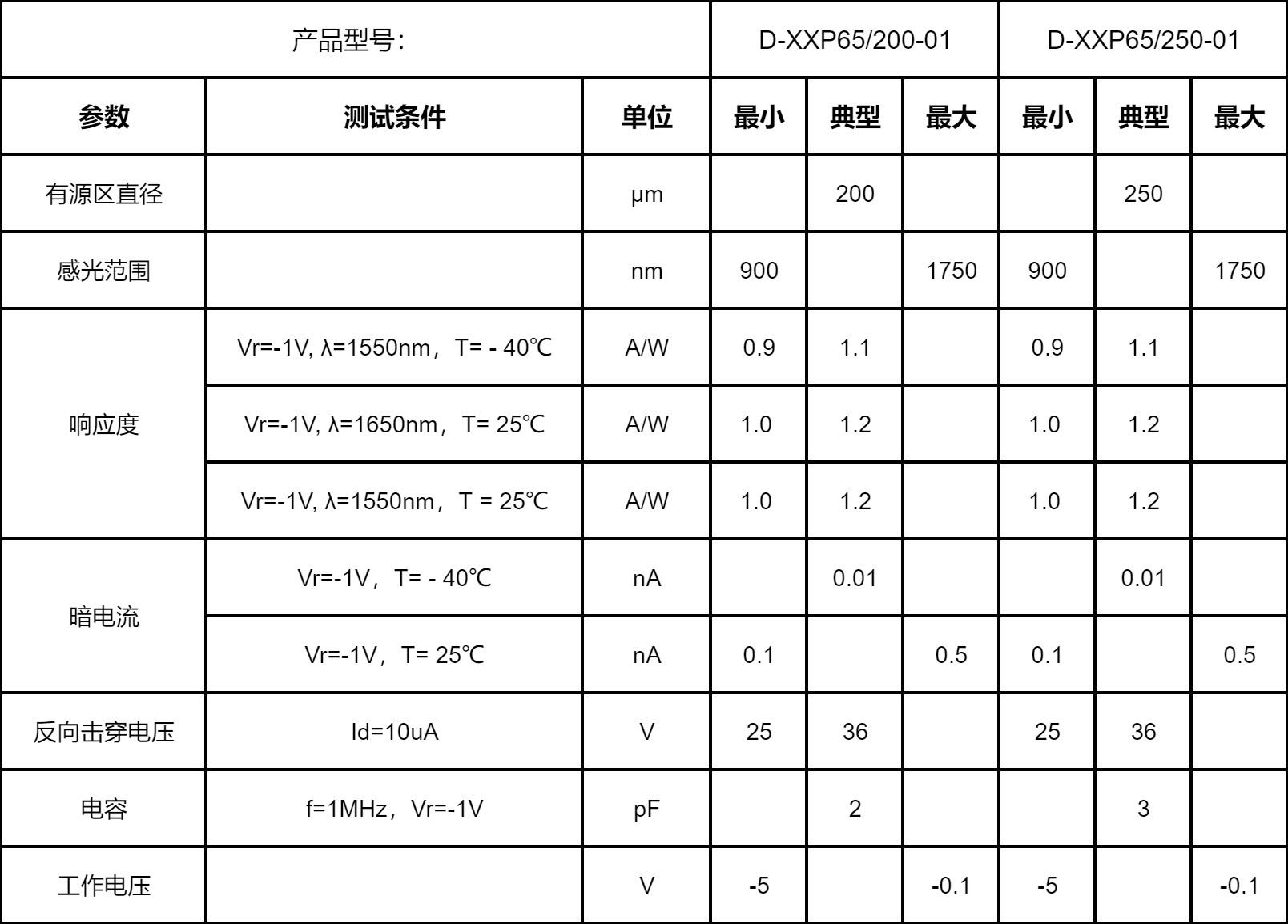

Specifications
| Parameter | Value |
|---|---|
| Active Area Diameter (μm) D-XXP65/200-01 | 200 |
| Active Area Diameter (μm) D-XXP65/250-01 | 250 |
| Spectral Range (nm) D-XXP65/200-01 | 900-1750 |
| Spectral Range (nm) D-XXP65/250-01 | 900-1750 |
| Responsivity (A/W) Vr=-1V, λ=1550nm, T=-40°C D-XXP65/200-01 | 0.9-1.1 |
| Responsivity (A/W) Vr=-1V, λ=1550nm, T=-40°C D-XXP65/250-01 | 0.9-1.1 |
| Responsivity (A/W) Vr=-1V, λ=1650nm, T=25°C D-XXP65/200-01 | 1.0-1.2 |
| Responsivity (A/W) Vr=-1V, λ=1650nm, T=25°C D-XXP65/250-01 | 1.0-1.2 |
| Responsivity (A/W) Vr=-1V, λ=1550nm, T=25°C D-XXP65/200-01 | 1.0-1.2 |
| Responsivity (A/W) Vr=-1V, λ=1550nm, T=25°C D-XXP65/250-01 | 1.0-1.2 |
| Dark Current (nA) Vr=-1V, T=-40°C D-XXP65/200-01 | 0.01 |
| Dark Current (nA) Vr=-1V, T=-40°C D-XXP65/250-01 | 0.01 |
| Dark Current (nA) Vr=-1V, T=25°C D-XXP65/200-01 | 0.1-0.5 |
| Dark Current (nA) Vr=-1V, T=25°C D-XXP65/250-01 | 0.1-0.5 |
| Reverse Breakdown Voltage (V) Id=10μA D-XXP65/200-01 | 25-36 |
| Reverse Breakdown Voltage (V) Id=10μA D-XXP65/250-01 | 25-36 |
| Capacitance (pF) f=1MHz, Vr=-1V D-XXP65/200-01 | 2 |
| Capacitance (pF) f=1MHz, Vr=-1V D-XXP65/250-01 | 3 |
| Operating Voltage (V) D-XXP65/200-01 | -5--0.1 |
| Operating Voltage (V) D-XXP65/250-01 | -5--0.1 |
