APD/TIA Testing Equipment
This product is designed for precise testing and measurement of APD and TIA parameters, ensuring high accuracy and reliability in optical applications.
Save to Favorites
Overview
Specifications

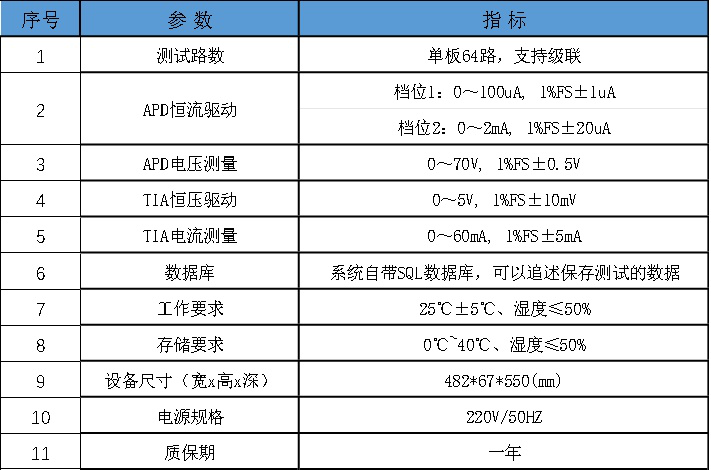

| Parameter | Value |
|---|---|
| Number of Test Channels | 单板64路,支持级联 |
| APD Constant Current Drive Level 1 | 0~100μA,1%FS±1μA |
| APD Constant Current Drive Level 2 | 0~2mA,1%FS±20μA |
| APD Voltage Measurement | 0~70V,1%FS±0.5V |
| TIA Constant Voltage Drive | 0~5V,1%FS±10mV |
| TIA Current Measurement | 0~60mA,1%FS±5mA |
| Database | 系统自带SQL数据库,可以追述保存测试的数据 |
| Working Requirements | 25℃±5℃,湿度≤50% |
| Storage Requirements | 0℃~40℃,湿度≤50% |
| Device Dimensions (W×H×D) | 482×67×550(mm) |
| Power Specifications | 220V/50Hz |
| Warranty Period | 一年 |
