APD测试Equipment
This is an advanced APD testing equipment designed for precise and reliable testing of Avalanche Photodiodes (APD) and related components.
Save to Favorites
Overview

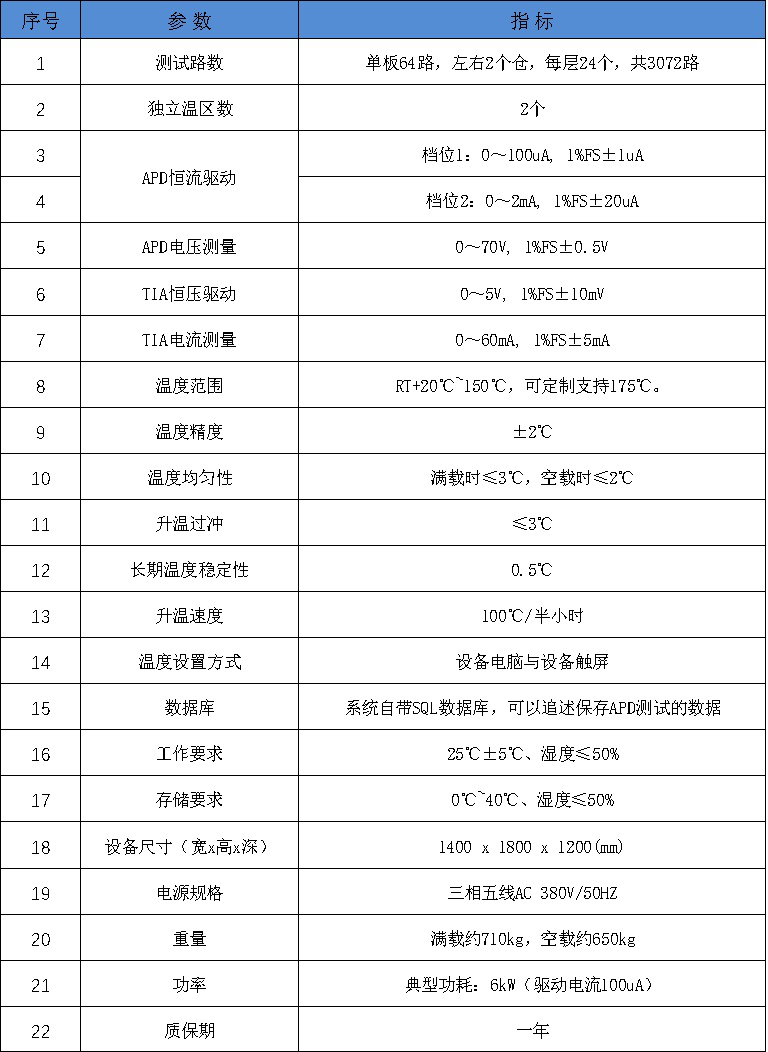

Specifications
| Parameter | Value |
|---|---|
| Number of Test Channels | 单板64路，左右2 complete plans仓，每层24 complete plans，共3072路 |
| Number of Independent Temperature Zones | 2 complete plans |
| APD Constant Current Drive | 档位1: 0~100μA, 1%FS±1μA; 档位2: 0~2mA, 1%FS±20μA |
| APD Voltage Measurement | 0~70V, 1%FS±0.5V |
| TIA Constant Voltage Drive | 0~5V, 1%FS±10mV |
| TIA Current Measurement | 0~60mA, 1%FS±5mA |
| Temperature range | RT+20℃~150℃, 可定制支持175℃ |
| Temperature Accuracy | ±2℃ |
| Temperature Uniformity | 满载时≤3℃, 空载时≤2℃ |
| Temperature Overshoot | ≤3℃ |
| Long-term Temperature Stability | 0.5℃ |
| Temperature Rise Speed | 100℃/半小时 |
| Temperature Setting Method | Equipment电脑与Equipment触屏 |
| Database | 系统自带SQL数据库, 可以追述保存APD测试的数据 |
| Working Requirements | 25℃±5℃, 湿度≤50% |
| Storage Requirements | 0℃~40℃, 湿度≤50% |
| Device Dimensions (W x H x D) | 1400x1800x1200(mm) |
| Power Specifications | 三相五线AC 380V/50HZ |
| Weight | 满载约710kg, 空载约650kg |
| Power | 典型功耗6kW(驱动电流100μA) |
| Warranty Period | 一年 |
