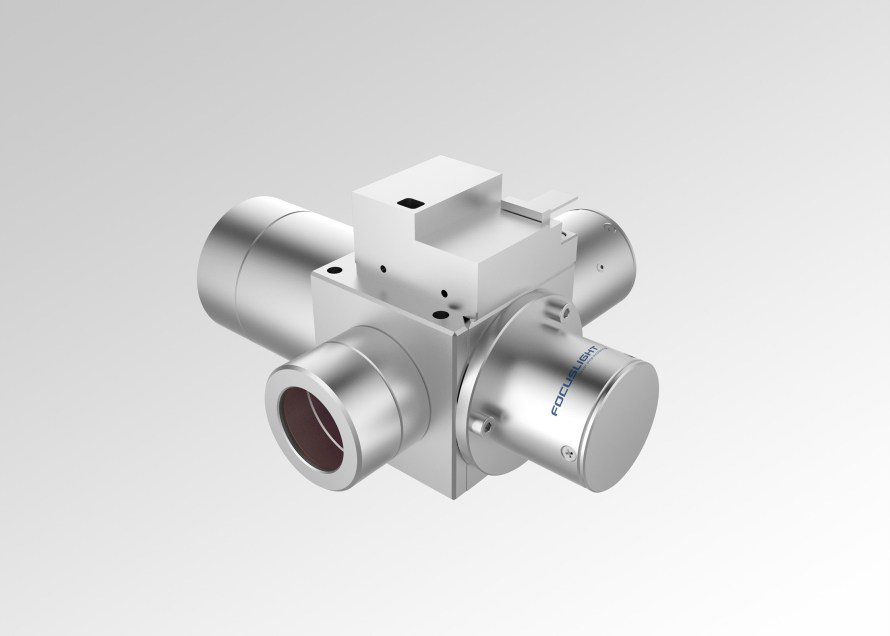

Activation Series - Laser Processing Heads
The Activation Series Laser Processing Heads are designed for industrial material processing, offering optimized beam shaping and precise control for applications such as welding, soldering, and laser bonding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Housing Material ACT000029 | Anodized Aluminum |
| Housing Material ACT000036 | Anodized Aluminum |
| Housing Material ACT000038 | Anodized Aluminum |

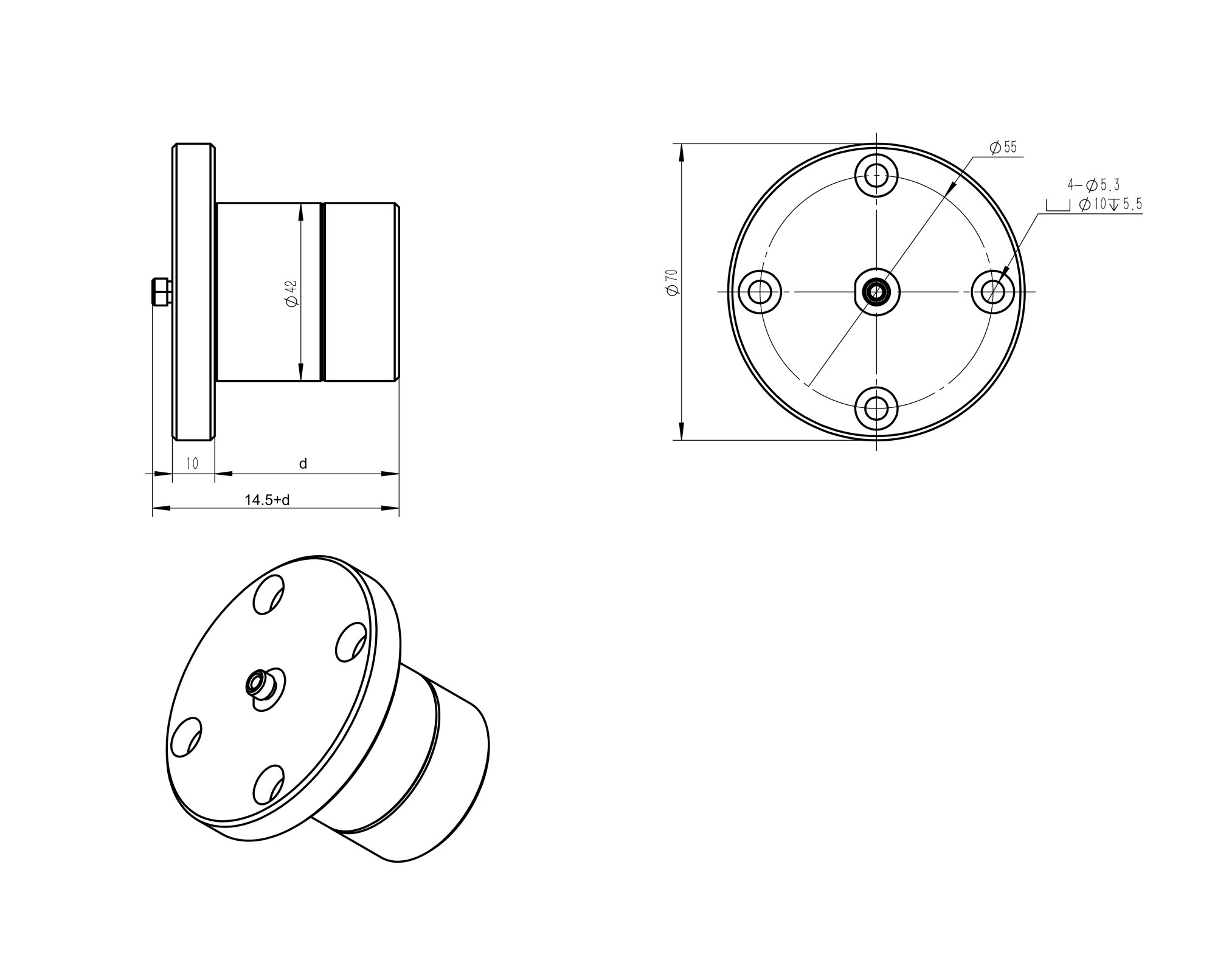

| Dimensions (length×width×depth) ACT000029 | 70×70×87mm |
| Dimensions (length×width×depth) ACT000036 | 70×70×87mm |
| Dimensions (length×width×depth) ACT000038 | 70×70×58mm |
| Mounting Threads ACT000029 | 4×M5 |
| Mounting Threads ACT000036 | 4×M5 |
| Mounting Threads ACT000038 | 4×M5 |
| Fiber Connector Types ACT000029 | LD80 |
| Fiber Connector Types ACT000036 | SMA905 |
| Fiber Connector Types ACT000038 | LD80 |
| Length d ACT000029 | 72.5mm |
| Length d ACT000036 | 72.5mm |
| Length d ACT000038 | 43.5mm |
| Weight ACT000029 | 600g |
| Weight ACT000036 | 600g |
| Weight ACT000038 | 350g |
| Max. Laser Power (CW) ACT000029 | 500W |
| Max. Laser Power (CW) ACT000036 | 120W |
| Max. Laser Power (CW) ACT000038 | 500W |
| Wavelength Range ACT000029 | 790-990nm |
| Wavelength Range ACT000036 | 790-990nm |
| Wavelength Range ACT000038 | 790-990nm |
| Max. Numerical Aperture ACT000029 | 0.23 |
| Max. Numerical Aperture ACT000036 | 0.23 |
| Max. Numerical Aperture ACT000038 | 0.23 |
| Max. Fiber Core Diameter ACT000029 | 600μm |
| Max. Fiber Core Diameter ACT000036 | 600μm |
| Max. Fiber Core Diameter ACT000038 | 600μm |
| Transmission Rate ACT000029 | 90%(typ.95%) |
| Transmission Rate ACT000036 | 90%(typ.95%) |
| Transmission Rate ACT000038 | 90%(typ.95%) |
| Collimation Focal Length ACT000029 | 50mm |
| Collimation Focal Length ACT000036 | 50mm |
| Collimation Focal Length ACT000038 | 35mm |
| Focusing Focal Length ACT000029 | 100mm |
| Focusing Focal Length ACT000036 | 5000mm |
| Working Distance ACT000029 | 80±10mm |
| Working Distance ACT000036 | 5000mm |
| Beam Size (90% PE with 200μm Fiber) ACT000029 | 560μm |
| Beam Size (90% PE with 400μm Fiber) ACT000029 | 960μm |
| Max. Divergence with 200μm Fiber ACT000029 | 4mrad |
| Max. Divergence with 400μm Fiber ACT000029 | 8mrad |
| Max. Divergence with 200μm Fiber ACT000038 | 8mrad |
| Max. Divergence with 400μm Fiber ACT000038 | 14mrad |
| Operating Temperature ACT000029 | 5~40°C |
| Operating Temperature ACT000036 | 5~40°C |
| Operating Temperature ACT000038 | 5~40°C |
| Storage Temperature ACT000029 | 15~50°C |
| Storage Temperature ACT000036 | 15~50°C |
| Storage Temperature ACT000038 | 15~50°C |
| Max. Housing Temperature in Operation ACT000029 | 60°C |
| Max. Housing Temperature in Operation ACT000036 | 60°C |
| Max. Housing Temperature in Operation ACT000038 | 60°C |
