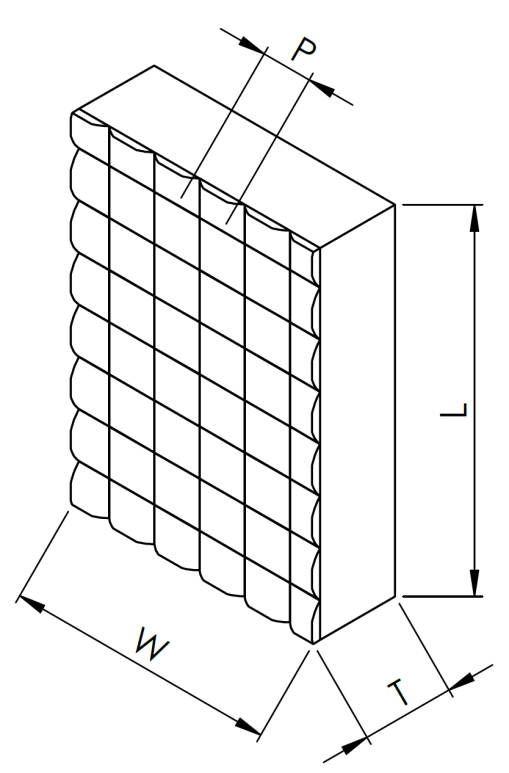

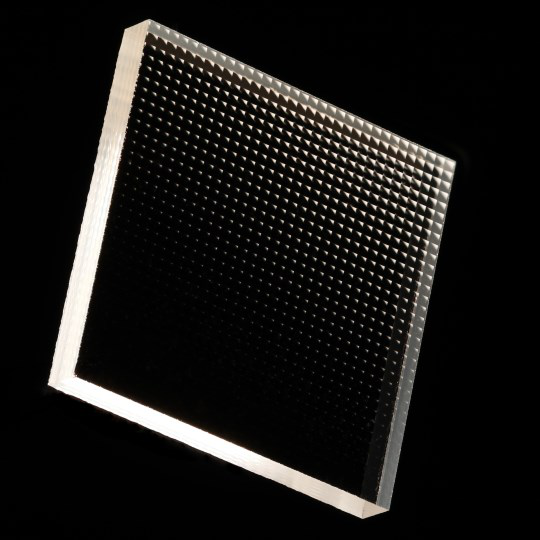

Microlens Array 18-00216

材料: BK7、K9、 Sapphire （Sapphire）、CaF₂、ZnSe、 Fused silica （Fused Silica） 尺寸: 2-210mm 尺寸公差: ±0.1mm

A biconvex lens has two convex surfaces. Astarphotonics offers high-precision spherical lenses in various specifications, sizes and focal lengths.

材料: BK7、K9、 Sapphire （Sapphire）、CaF₂、ZnSe、 Fused silica （Fused Silica） 尺寸: 2-210mm 尺寸公差: ±0.1mm

A biconcave lens has two concave spherical surfaces and negative focal length, making it suitable for diverging a converging beam. Like a plano-concave lens, it diverges a collimated beam from a virtual focus, as in a beam expander. Coatings can be customized.

材料: BK7 glass + ZF2 or ZF4 焦距（EFL）: ±2% 尺寸公差: +0 / -0.18 mm

Cemented lenses minimize or eliminate chromatic aberration. Their achromatic design also helps minimize spherical aberration. Achromatic lenses suit applications such as fluorescence microscopy, image relays, inspection and spectroscopy. They are manufactured by cementing two or more elements together and can form smaller spots than singlet lenses.

材料 [常规精度]: BK7, fused silica, SF10, calcium fluoride (CaF₂), sapphire, and other materials 材料 [高精度]: BK7, fused silica, SF10, calcium fluoride (CaF₂), sapphire, and other materials 加工尺寸 [常规精度]: Φ3-210mm

A plano-convex lens has one plane surface and one convex surface. Applications include telescopes, sights, magnifiers, optical receivers and condenser lenses. Combined with other lenses, it can form an imaging system.

直径: 10~600mm R值范围: R15-R∞ 外形公差: ≥+-0.005mm

Aspheric mirrors offer distinct advantages in applications such as eliminating spherical aberration and single-element designs. Glitteroptic provides CNC precision-polished aspheric mirrors with excellent performance in surface quality, irregularity and focal-length deviation.
