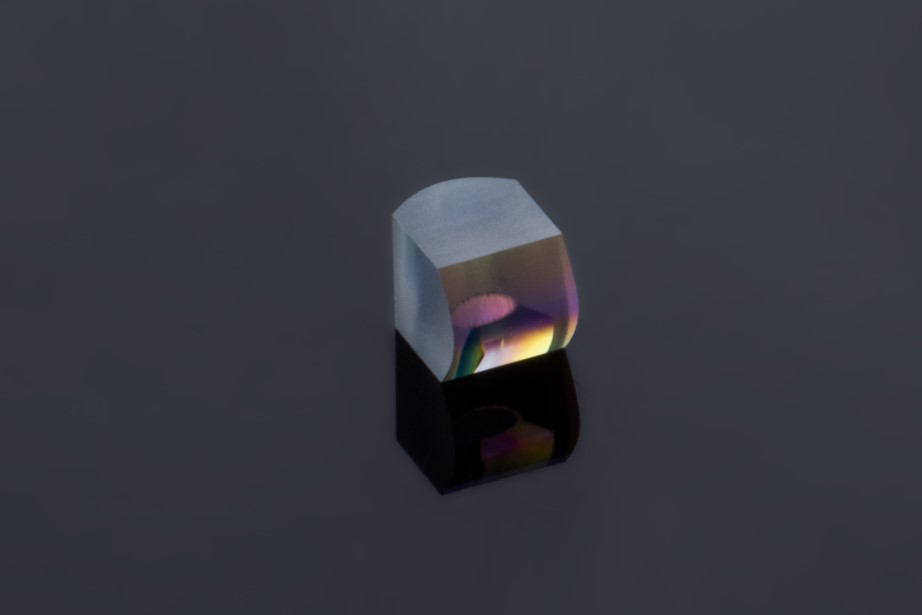

Monolithic Collimator
Monolithic Collimator designed for blue multi-mode single emitters packaged in TO-cans, collimating both fast axis and slow axis simultaneously.
Save to Favorites
Overview
Specifications

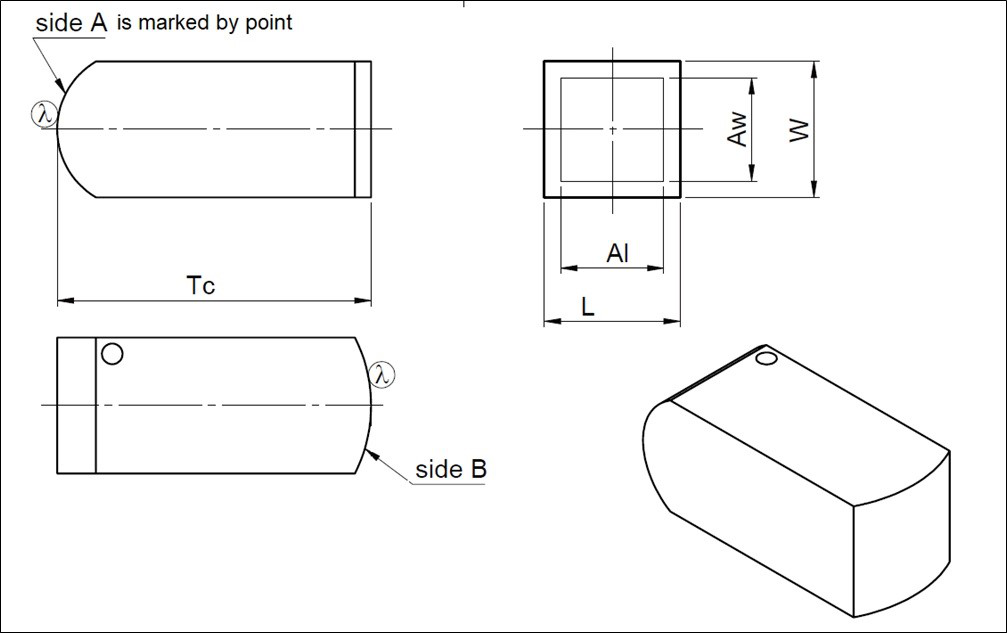

| Parameter | Value |
|---|---|
| Length (L) | 2.5±0.05mm |
| Width (W) | 2.5±0.05mm |
| Thickness (T) | 5.78±0.05mm |
| Clear Aperture (A1×Aw) | 1.9×1.9mm² |
| Design Wavelength (DW) | 445nm |
| Refractive Index @ DW | 1.526 |
| Effective Focal Length (EFL) @ DW | 5.02mm |
| Working Distance (WD) and Back Focal Length (BFL) @ DW | 1.19mm |
| Fast Axis Remaining Divergence (FW 1/e² - typically) | 1.6mrad |
| Slow Axis Remaining Divergence (FW 1/e² - typically) | 7.0mrad |
| Transmission | >99% |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-

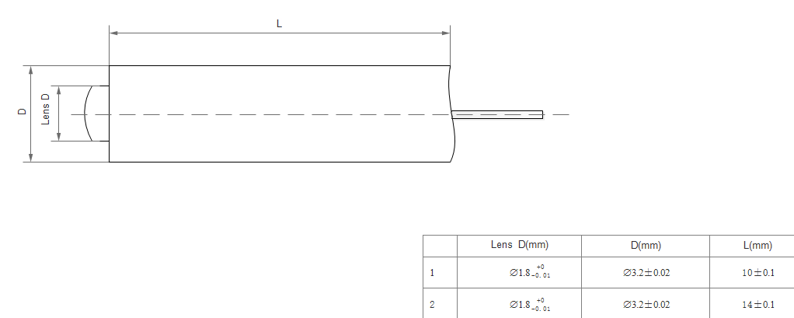

1064nm High Power Fiber Collimator
Collimators
Hltoptical
中心波长 [以上规格适用于不含连接器的器 Items]: 1064 工作波长范围 [以上规格适用于不含连接器的器 Items]: ±20 nm 标称光束直径 [以上规格适用于不含连接器的器 Items]: 0.4,0.5,0.9 or Specify
-
1064nm High Power PM Collimated Beam Output Isolator
Collimators
Hltoptical
中心波长 [上述规格适用于不带连接器的器 Items / Image单位单元格中的dB存在冲突；nm由匹配HTMLTitle中的同一1064nm数值支持]: 1064 nm 工作波长范围 [以上规格适用于不带连接器的器 Items]: ±10 nm 插入损耗 [上述规格适用于不带连接器的器 Items / 未标注的左侧数值选项，未分配变型归属]: typical:1.0 dB；max:1.2 dB
-

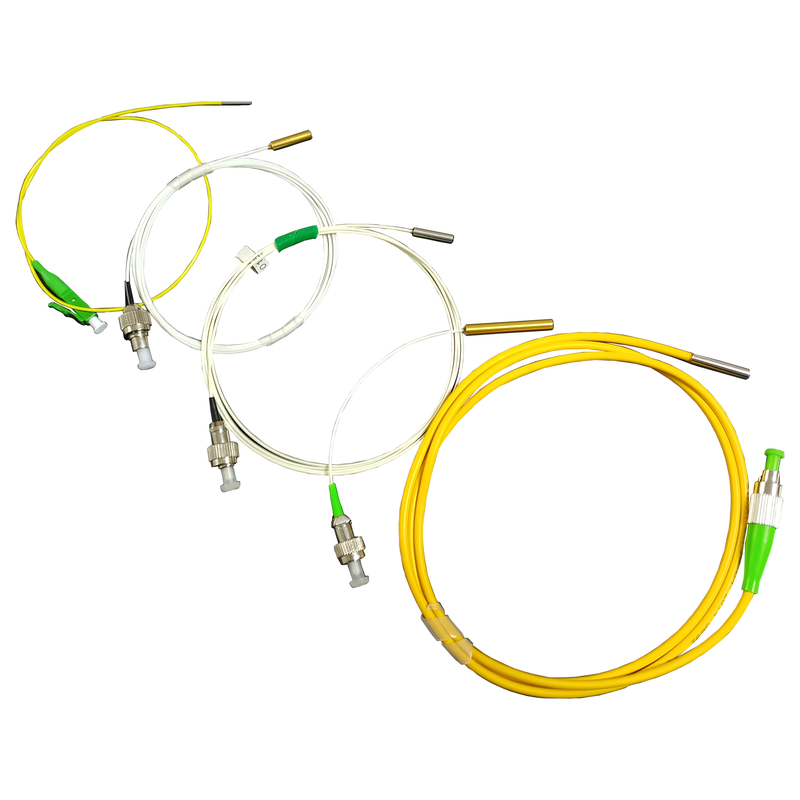

Fiber collimation / Focuser
Collimators
Startin-optronics
-

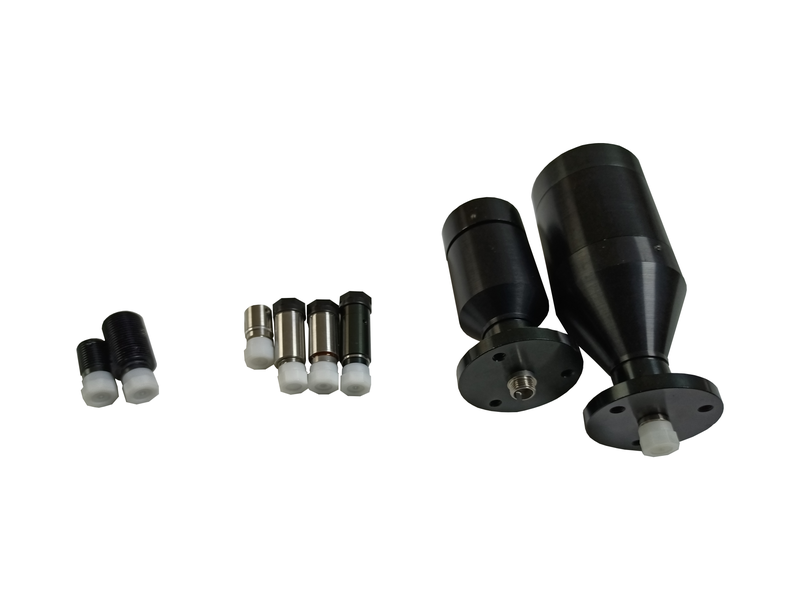

Optical fiber Collimating lens
Collimators
Startin-optronics
Fiber collimators are mainly used for output collimation of fiber-based light sources and are common companion lens components for fiber lasers and fiber-coupled semiconductor lasers. They are widely used in fiber sensing and laser remote measurement. Different fiber collimator types are available, covering wavelengths from 405nm to 1650nm and clear apertures from 1mm to 100mm.
-

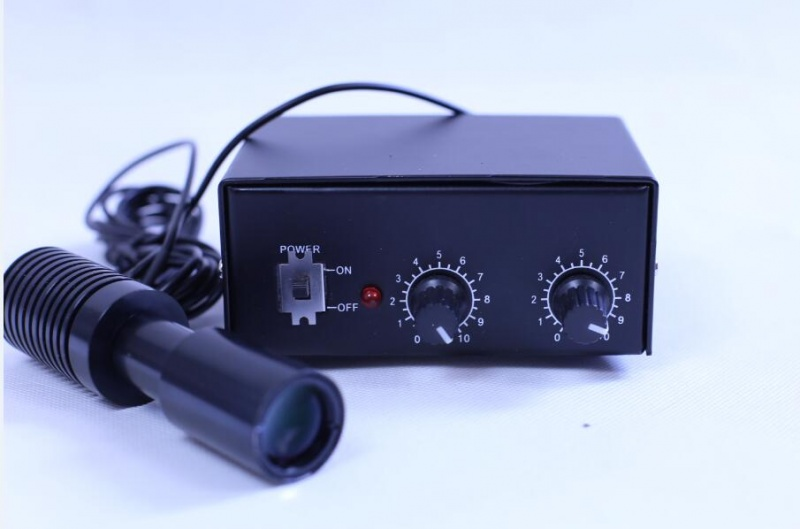

White-light collimator BOT-LED-3000P
