1064nm High Power Fiber Collimator
Save to Favorites

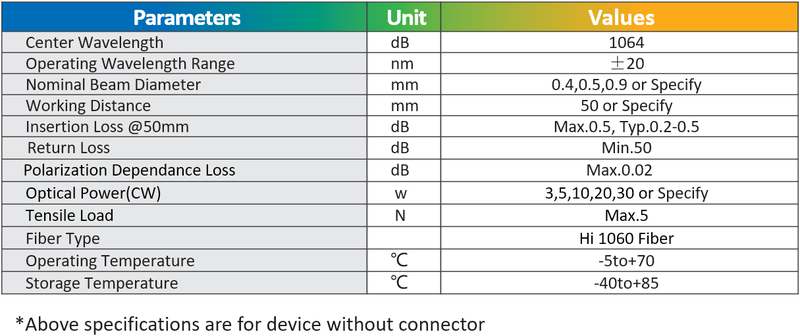

Specifications
| Parameter | Value |
|---|---|
| 中心波长 [以上规格适用于不含连接器的器 Items] | 1064 |
| 工作波长范围 [以上规格适用于不含连接器的器 Items] | ±20 nm |
| 标称光束直径 [以上规格适用于不含连接器的器 Items] | 0.4,0.5,0.9 or Specify |
| 工作距离 [以上规格适用于不含连接器的器 Items] | 50 or Specify |
| 插入损耗 [以上规格适用于不带连接器的器 Items / @50nm] | typical:0.2-0.5 dB；max:0.5 dB |
| 回波损耗 [以上规格适用于不含连接器的器 Items] | min:50 dB |
| 偏振Related Categories损耗 [以上规格适用于不含连接器的器 Items] | max:0.02 dB |
| 光功率 [以上规格适用于不带连接器的器 Items / CW] | 3,5,10,20,30 or Specify |
| 拉伸载荷 [以上规格适用于不含连接器的器 Items] | max:5 N |
| 光纤类型 [以上规格适用于不含连接器的器 Items] | Hi 1060 Fiber |
| 工作温度 [以上规格适用于不含连接器的器 Items] | -5to+70 °C |
| 储存温度 [以上规格适用于不含连接器的器 Items] | -40to+85 °C |
Applications
Key Features
Datasheet
