1064nm High Power PM Collimated Beam Output Isolator
Save to Favorites

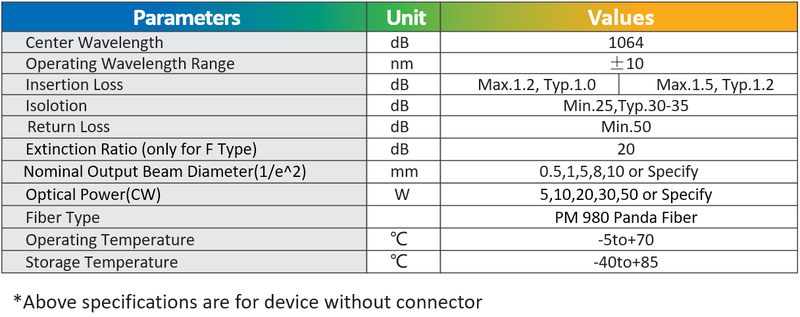

Specifications
| Parameter | Value |
|---|---|
| 中心波长 [上述规格适用于不带连接器的器 Items / Image单位单元格中的dB存在冲突；nm由匹配HTMLTitle中的同一1064nm数值支持] | 1064 nm |
| 工作波长范围 [以上规格适用于不带连接器的器 Items] | ±10 nm |
| 插入损耗 [上述规格适用于不带连接器的器 Items / 未标注的左侧数值选项，未分配变型归属] | typical:1.0 dB；max:1.2 dB |
| 插入损耗 [上述规格适用于不带连接器的器 Items / 未标注的右侧数值选项，未分配变型归属] | typical:1.2 dB；max:1.5 dB |
| 隔离度 [上述规格适用于不带连接器的器 Items / 原文Typical（典型值）范围30–35，并非独立的Min/Max] | min:25 dB；typical:30–35 dB |
| 回波损耗 [以上规格适用于不带连接器的器 Items] | min:50 dB |
| 消光比 [上述规格适用于不带连接器的器 Items / 仅适用于F型；不将F解码为完整Model] | 20 dB |
| 标称输出光束直径(1/e²) [上述规格适用于不带连接器的器 Items / 未标注的选项，未与功率值配对] | 0.5,1,5,8,10 or Specify |
| 光功率(CW) [上述规格适用于不带连接器的器 Items / CW；未标注的选项，未与光束直径配对] | 5,10,20,30,50 or Specify |
| 光纤类型 [以上规格适用于不带连接器的器 Items] | PM980 Panda Fiber |
| 工作温度 [以上规格适用于不带连接器的器 Items] | -5to+70 °C |
| 储存温度 [以上规格适用于不带连接器的器 Items] | -40to+85 °C |
