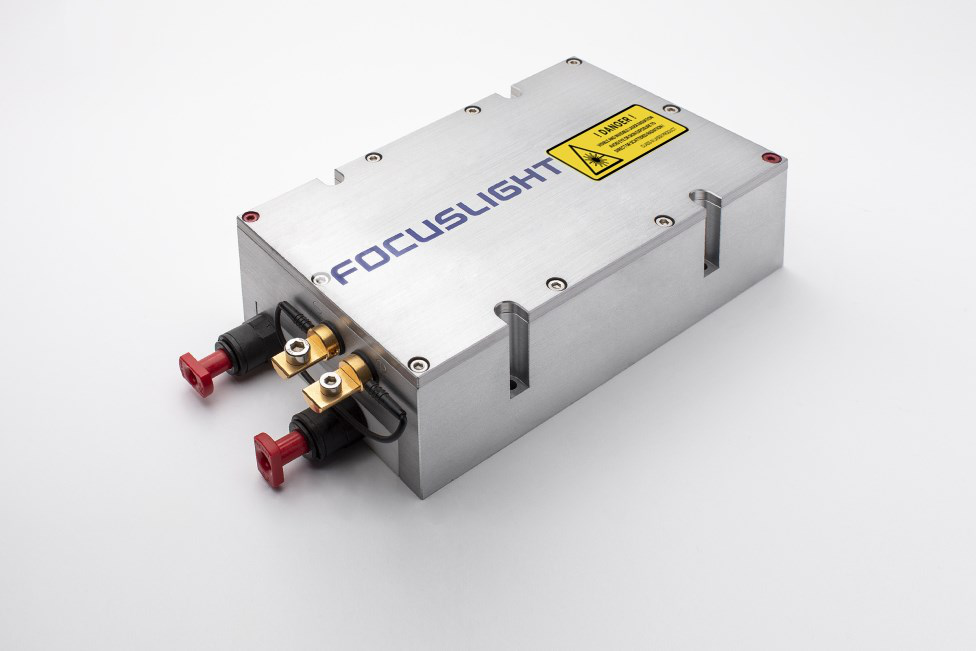

High Power Fiber Coupled Diode Laser ND Series
The ND Series high-power fiber-coupled diode laser features high brightness, compact housing, and hermetically sealed design, making it ideal for advanced manufacturing, health, information technology, and scientific research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| CW-nominal output power (W) FCS000024 | 120W |
| CW-nominal output power (W) FCS000027 | 150W |
| CW-nominal output power (W) FCS000025 | 120W |
| CW-nominal output power (W) FCS000026 | 120W |
| Centroid wavelength (nm) FCS000024 | 980nm |
| Centroid wavelength (nm) FCS000027 | 980nm |
| Centroid wavelength (nm) FCS000025 | 808nm |
| Centroid wavelength (nm) FCS000026 | 808nm |
| Wavelength tolerance (±nm) | 10 |
| Wavelength Temp. drift (nm/°C) FCS000024 | ~0.34 |
| Wavelength Temp. drift (nm/°C) FCS000027 | ~0.34 |
| Wavelength Temp. drift (nm/°C) FCS000025 | ~0.28 |
| Wavelength Temp. drift (nm/°C) FCS000026 | ~0.28 |
| Wavelength stabilization | - |
| Nominal diode heat sink Temp. (°C) | 25°C |
| Diode heat sink operation Temp. (°C) | +15~+30°C |
| Minimum heat sink capacity (W) | 300W |
| Chiller flow capacity (L/min) | 5L/min |
| Water pressure (bar) | 4bar |
| Max. operation current start of life (A) FCS000024 | ≤65A |
| Max. operation current start of life (A) FCS000027 | ≤75A |
| Max. operation current start of life (A) FCS000025 | ≤65A |
| Max. operation current start of life (A) FCS000026 | ≤65A |
| Max. operation current end of life (A) FCS000024 | ≤78A |
| Max. operation current end of life (A) FCS000027 | ≤90A |
| Max. operation current end of life (A) FCS000025 | ≤78A |
| Max. operation current end of life (A) FCS000026 | ≤78A |
| Typical threshold current (A) | ≤8A |
| Typical operation voltage (V) | ≤58V |
| Typical slope (W/A) FCS000024 | ≥2.4W/A |
| Typical slope (W/A) FCS000027 | ≥2.4W/A |
| Typical slope (W/A) FCS000025 | ≥2.3W/A |
| Typical slope (W/A) FCS000026 | ≥2.3W/A |
| Typical E/O efficiency (%) FCS000024 | ≥39% |
| Typical E/O efficiency (%) FCS000027 | ≥40% |
| Typical E/O efficiency (%) FCS000025 | ≥37% |
| Typical E/O efficiency (%) FCS000026 | ≥39% |
| Fiber included | - |
| Fiber core diameter (μm) FCS000024 | 200μm |
| Fiber core diameter (μm) FCS000027 | 400μm |
| Fiber core diameter (μm) FCS000025 | 200μm |
| Fiber core diameter (μm) FCS000026 | 400μm |
| Fiber optic connector FCS000024 | SMA905 |
| Fiber optic connector FCS000027 | LD80 |
| Fiber optic connector FCS000025 | SMA905 |
| Fiber optic connector FCS000026 | SMA905 |

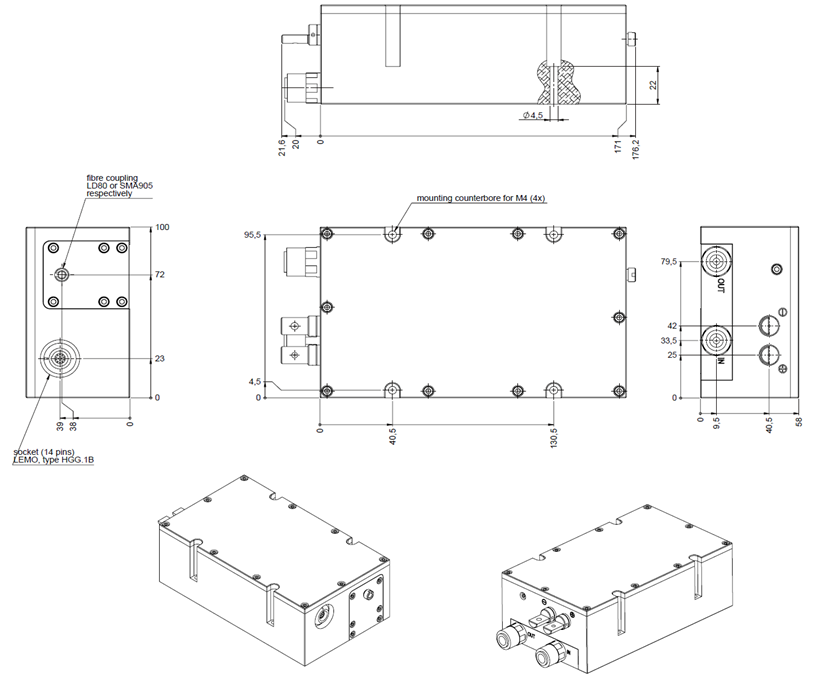

| Dimensions (mm³) | 197.8×100×58 |
| Weight basic package (kg) | 2.2kg |
| Storage Temp. (°C) | -20~+60°C |
| Temp. sensors | NTC & Pt100 |
| Monitor diode (driver: 5V) | Output signal: 0~2.5V |
| Pilot beam (driver: 5V, 40mA) | >0.7mW, 635±20nm |
| Fiber | non AR coated, 200μm non AR coated, 400μm |
| Diode heat sink Temp. (°C) | 25°C |
