Photonics Solutions for Medical and Health
Focuslight provides advanced photonics solutions for medical and health applications, including fluorescence angiography, disposable endoscopy, health monitoring, intraoral scanners, confocal microscopy, laser surgery, laser hair removal, laser body sculpting, and laser skin rejuvenation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Output FCMSE55 | 15-25W |
| Fiber Core Diameter FCMSE55 | 105/200μm |
| Wavelength FCMSE55 | 808/780/650/450nm |
| Power Output NV02 | 10-12W |
| Fast Axis Collimation NV02 | 1:1 Beam Ratio |
| Wavelength NV02 | 808/780/650/450nm |

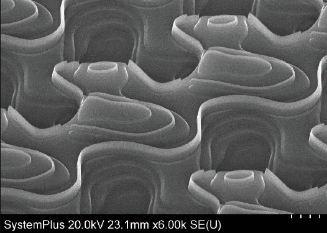

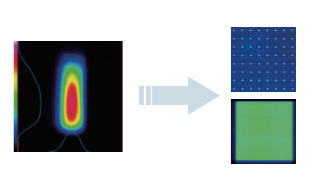

| Materials DOE | FS and Si |
| Levels DOE | 2(binary) to 16 levels |
| Wavelength Range DOE | 190nm to 5μm |
| Minimum Size DOE | 500nm to 1μm |
| Efficiency DOE | Up to 96% |

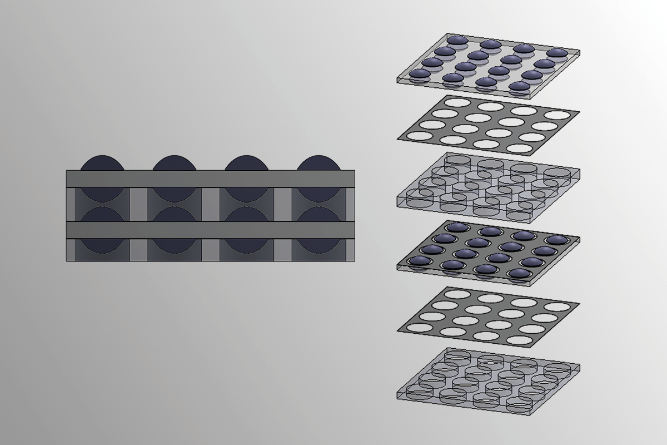

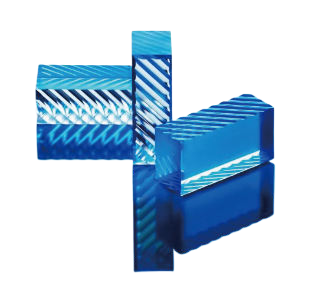

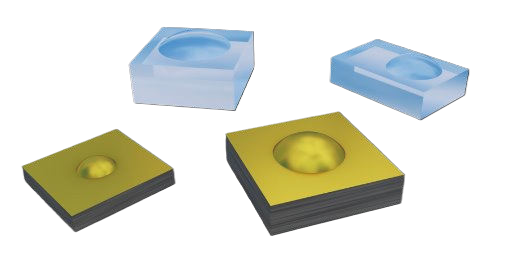

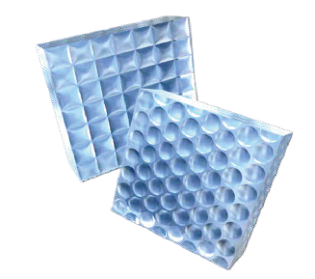

| Angular Spectrum MLA | Typical <1-20 degrees |
| Materials MLA | Fused Silica |
| Materials MLA | Silicon |
| Area of Illumination MLA | Linear |
| Area of Illumination MLA | circular |
| Area of Illumination MLA | rectangular |
| Area of Illumination MLA | square |
| AR Coating MLA | UV |
| AR Coating MLA | VIS |
| AR Coating MLA | NIR |

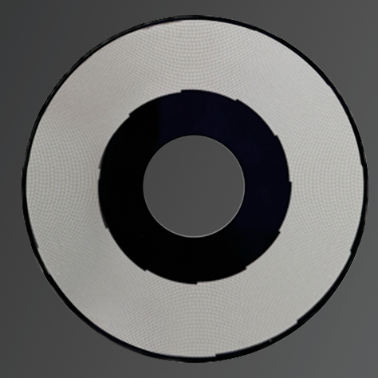

| Disc Diameter Pinhole Disc | ≤160mm |
| Material Pinhole Disc | Fused Silica |
| Pinhole/Lens Pattern Pinhole Disc | Custom |
| AR Coating Pinhole Disc | UV |
| AR Coating Pinhole Disc | VIS |
| AR Coating Pinhole Disc | NIR |
| Chrome Coating Pinhole Disc | Customized |

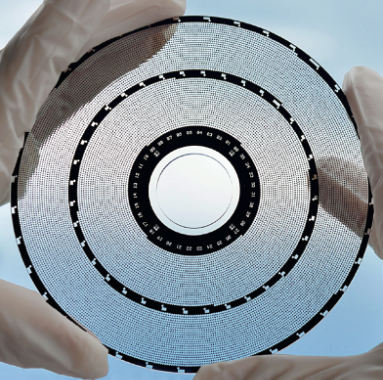

| Disc Diameter MLA Disc | 80-120mm typically, up to 160mm |
| Material MLA Disc | Fused Silica |
| Lens Surface MLA Disc | Custom |
| Lens Pattern MLA Disc | Spiral |
| Single Aperture MLA Disc | 500-700μm |

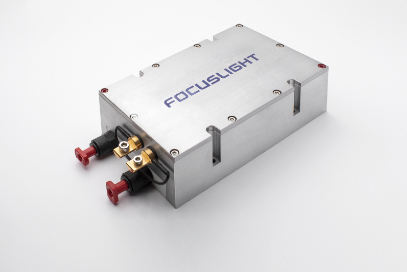

| Power Output Multi-Bar-Based Fiber Coupled Modules | 100-400W(CCW) |
| Fiber Core Diameter Multi-Bar-Based Fiber Coupled Modules | 200/400μm |
| Wavelength Multi-Bar-Based Fiber Coupled Modules | 808/980nm |
| Power Output Side-Pumped Modules | Up to 5000W(CCW) |
| Crystal Diameter Side-Pumped Modules | 4mm |
| SSG Side-Pumped Modules | >30 |

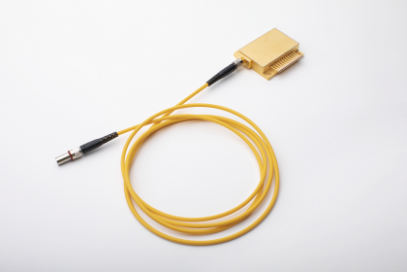

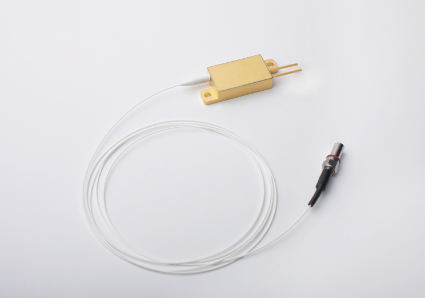

| Power Output Single-Emitter-Based Fiber Coupled Modules | 25-35W |
| Fiber Core Diameter Single-Emitter-Based Fiber Coupled Modules | 100/200μm |
| Wavelength Single-Emitter-Based Fiber Coupled Modules | 808/976/1064nm |

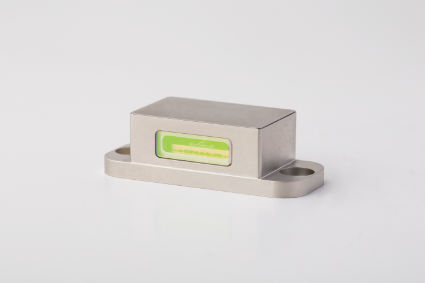

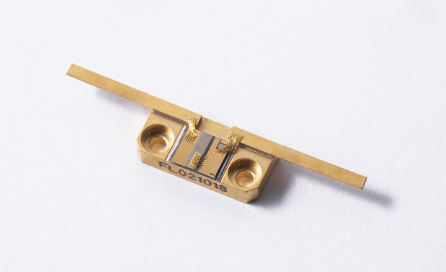

| Power Output Open Package Single Emitter Diode Laser | 10-12W |
| Fast Axis Collimation Open Package Single Emitter Diode Laser | 1:1 Beam Ratio |
| Wavelength Open Package Single Emitter Diode Laser | 808/915/940/976nm |
| Power Output Single-Bar-Based Fiber Coupled Modules | 15-25W |
| Fiber Core Diameter Single-Bar-Based Fiber Coupled Modules | 400μm |
| Wavelength Single-Bar-Based Fiber Coupled Modules | 808nm |

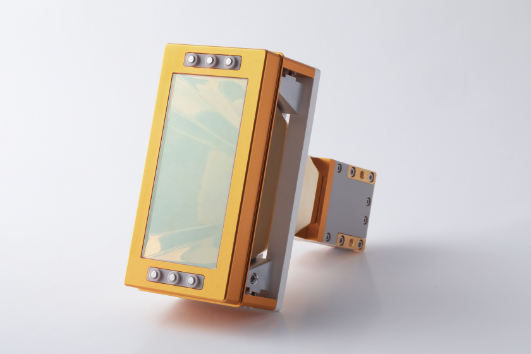

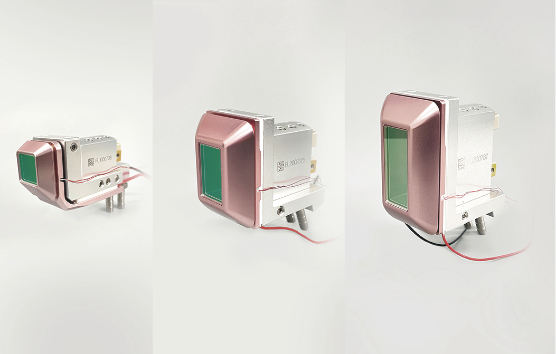

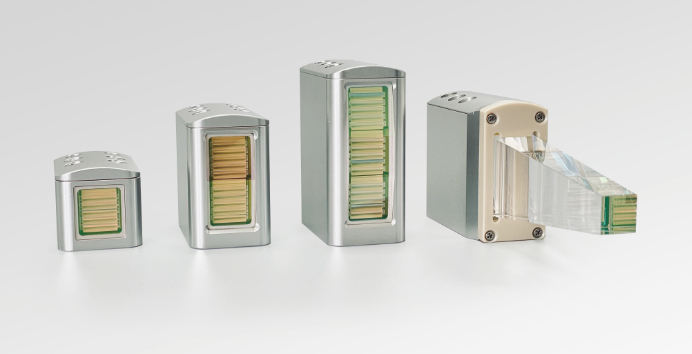

| Power Output Laser Hair Removal Modules | 600-3000W |
| Wavelength Laser Hair Removal Modules | 755/808/1060nm |

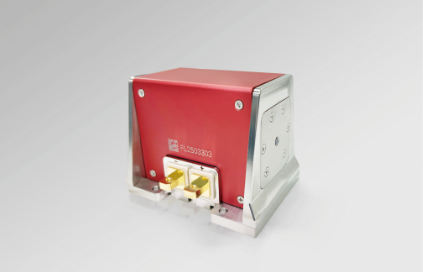

| Power Output Vsilk 2 | Up to 1800W |
| Work Mode Vsilk 2 | 106A, 30% Duty Cycle |
| Power Output Vsilk 2 Pro | Up to 3000W |
| Work Mode Vsilk 2 Pro | 185A, 10% Duty Cycle |

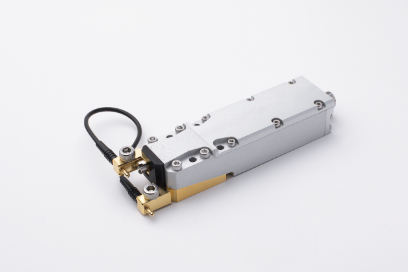

| Power Output Fairy FR06 | 50W |
| Wavelength Fairy FR06 | 1064±20nm |
| Beam Size Fairy FR06 | 80×40mm² |
| Weight Fairy FR06 | 385g |
