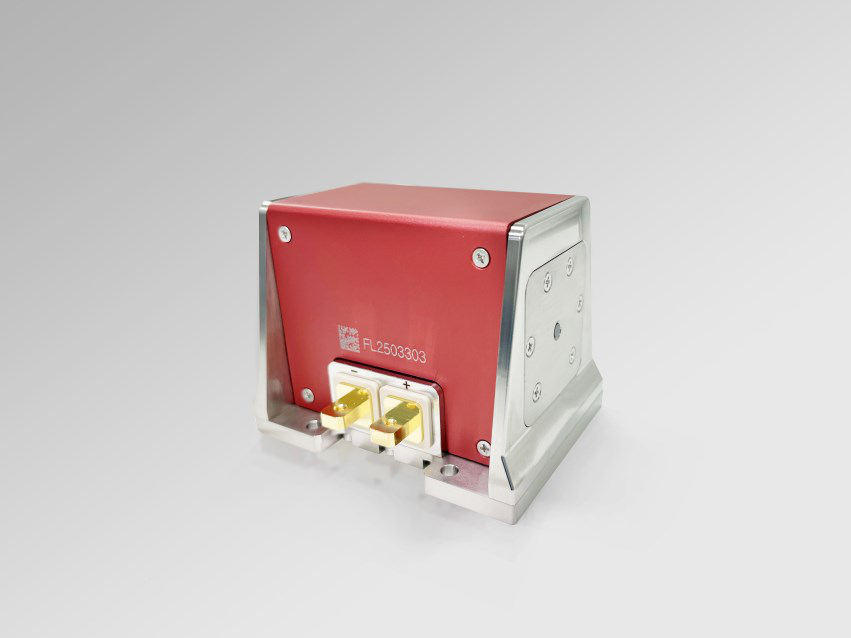

Water Cooled QCW Side Pumped Module SP18 Series
The Water Cooled QCW Side Pumped Module SP18 Series is a high-performance laser module designed for applications requiring high peak power, long lifetime, and high fluorescence uniformity. Its compact size and stability make it ideal for demanding environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Number of Bars | 25 |
| Rod Type | Nd:YAG, 1% doped |
| Rod Diameter (mm) | 4mm |
| Rod Length (mm) | 83mm |

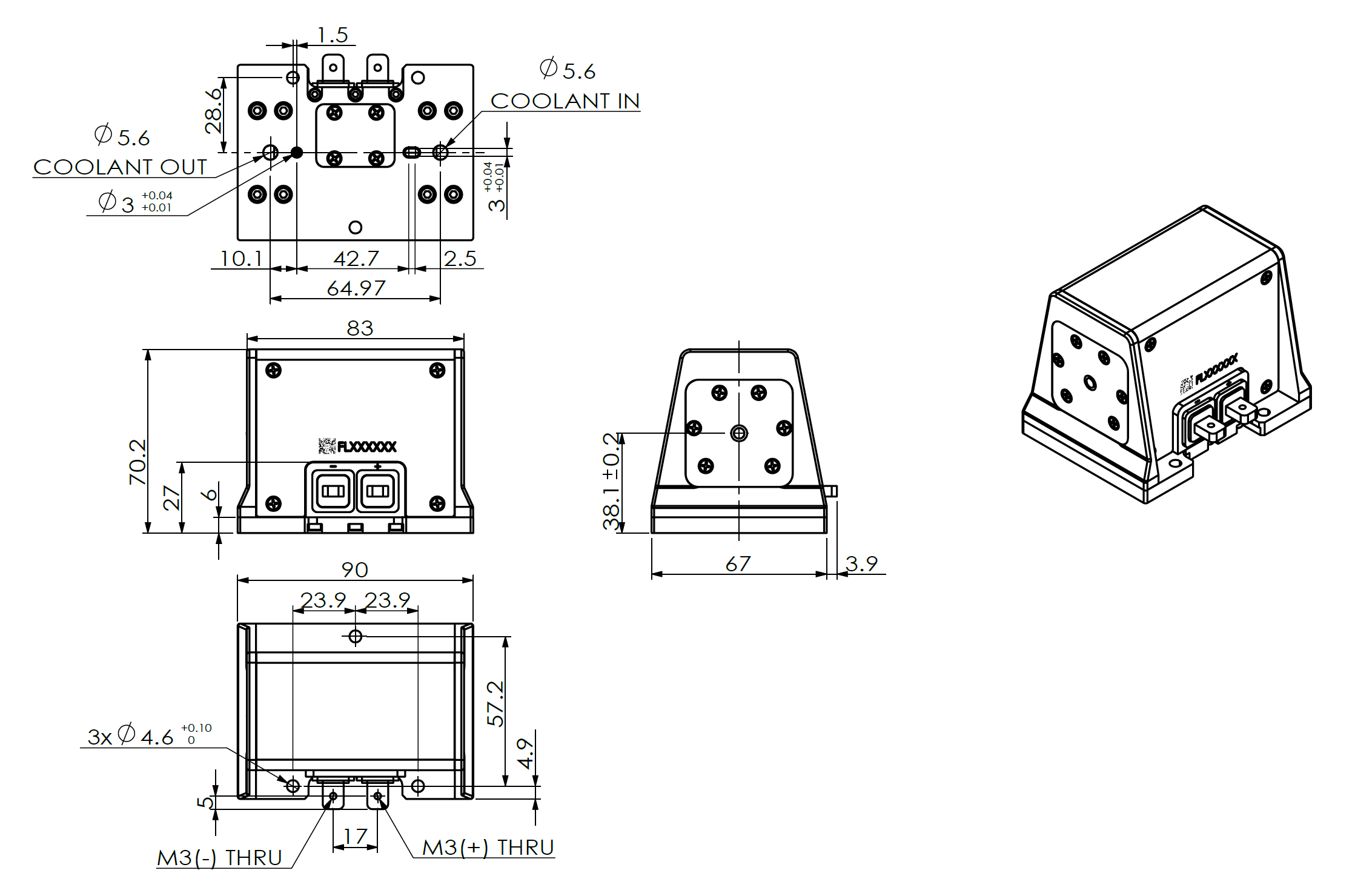

| Product Size (length×width×height) (mm) | 90×67×70.2 |
| Product Weight (Kg) | 1.15 |
| Operation Type | QCW |
| Peak Power per Bar (W) | ≤200W |
| Pumping Wavelength (nm) | 808±2nm |
| Pumping Length (mm) | 50mm |
| Stored Energy (J) | ＞0.28@1064nm |
| Small Signal Gain (Amplification Factor) | ＞30@1064nm |
| Operating Current (A) | ≤200A |
| Operating Voltage (V) | ≤50V |
| Pulse Duration (μs) | ≤240 |
| Repetition Rate (Hz) | 200Hz |
| Operating Temperature (°C) | 25°C |
| Water Pressure (MPa) | ≤0.5MPa |
| Water Flow (L/min) | ≥9L/min |
| Storage Temperature (°C) | -55~85°C |
