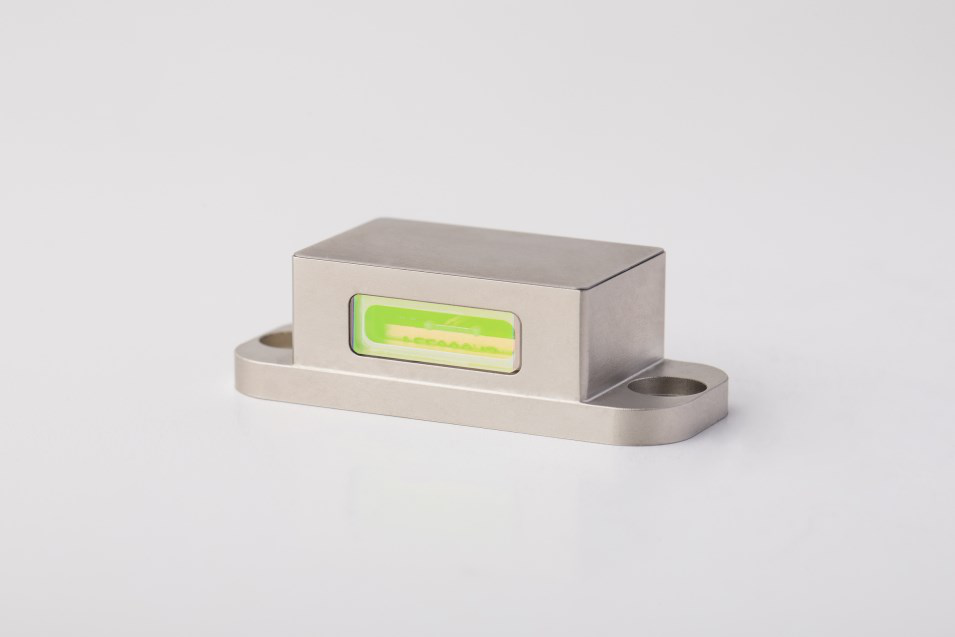

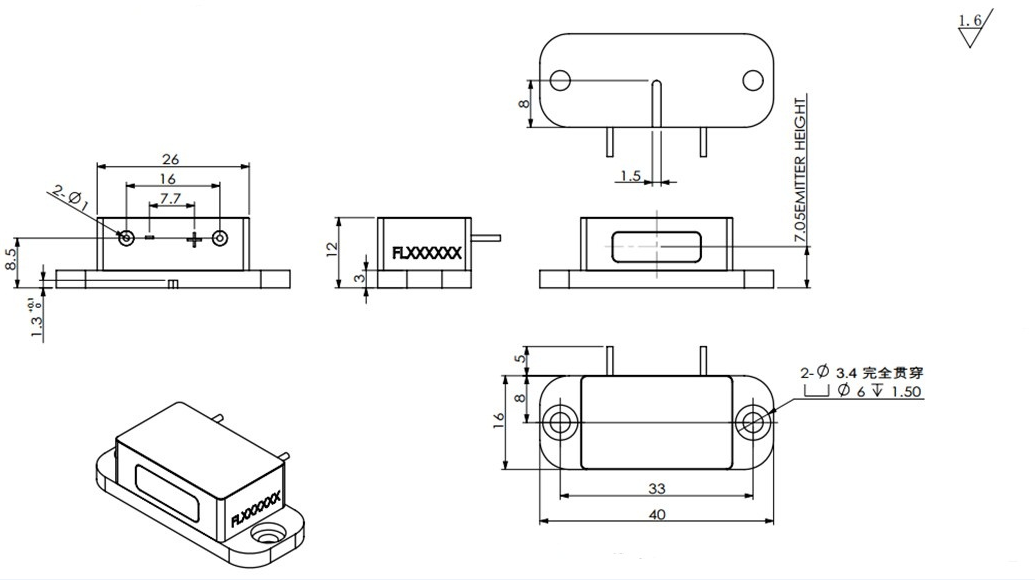

Single Emitter Diode Laser (CW) NV02

激光二极管 — 尾纤辐射输出功率 Ppeak [极限值 / CQF938/400]: max:100 mW 激光二极管 — 反向电压 VR [极限值 / CQF938/400]: max:2.0 V 激光二极管 — 正向电流 IF [极限值 / CQF938/400]: max:600 mA

In modern hybrid fiber coax (HFC) and cable television (CATV) systems, 1550nm externally modulated laser sources are used for super trunking and distribution.Due to the availability of the erbium-doped fiber amplifier (EDFA), which allows re-amplification of the optical signal without conversion into radio frequency (RF), such systems are very flexible in providing custom-made solutions with good carrier-to-noise ratios (CNR). In short haul metro links, the high power of the JDSU CQF938 eliminates the need for additional amplifiers. The CQF938 high power 1550 nm continuous wave (CW) distributed feedback (DFB) laser is available in a standard 14-pin butterfly package equipped with a polarization maintaining fiber (PMF) to facilitate coupling to a modulator. It shows superb thermal stability, high side-mode suppression ratios (SMSR), very low relative intensity noise (RIN), and small linewidths. The modulation bandwidth is in excess of 1 GHz, and permits various techniques for stimulated Brillouin scattering (SBS) suppression. SBS is a detrimental effect that can occur at very high power levels into the fiber, and which leads to noise bursts.

激光二极管 — 尾纤辐射输出功率 Ppeak [极限值 / CQF938/500]: max:100 mW 激光二极管 — 反向电压 VR [极限值 / CQF938/500]: max:2.0 V 激光二极管 — 正向电流 IF [极限值 / CQF938/500]: max:600 mA

In modern hybrid fiber coax (HFC) and cable television (CATV) systems, 1550nm externally modulated laser sources are used for super trunking and distribution.Due to the availability of the erbium-doped fiber amplifier (EDFA), which allows re-amplification of the optical signal without conversion into radio frequency (RF), such systems are very flexible in providing custom-made solutions with good carrier-to-noise ratios (CNR). In short haul metro links, the high power of the JDSU CQF938 eliminates the need for additional amplifiers. The CQF938 high power 1550 nm continuous wave (CW) distributed feedback (DFB) laser is available in a standard 14-pin butterfly package equipped with a polarization maintaining fiber (PMF) to facilitate coupling to a modulator. It shows superb thermal stability, high side-mode suppression ratios (SMSR), very low relative intensity noise (RIN), and small linewidths. The modulation bandwidth is in excess of 1 GHz, and permits various techniques for stimulated Brillouin scattering (SBS) suppression. SBS is a detrimental effect that can occur at very high power levels into the fiber, and which leads to noise bursts.

激光二极管 — 尾纤辐射输出功率 Ppeak [极限值 / CQF938/600]: max:100 mW 激光二极管 — 反向电压 VR [极限值 / CQF938/600]: max:2.0 V 激光二极管 — 正向电流 IF [极限值 / CQF938/600]: max:600 mA

In modern hybrid fiber coax (HFC) and cable television (CATV) systems, 1550nm externally modulated laser sources are used for super trunking and distribution.Due to the availability of the erbium-doped fiber amplifier (EDFA), which allows re-amplification of the optical signal without conversion into radio frequency (RF), such systems are very flexible in providing custom-made solutions with good carrier-to-noise ratios (CNR). In short haul metro links, the high power of the JDSU CQF938 eliminates the need for additional amplifiers. The CQF938 high power 1550 nm continuous wave (CW) distributed feedback (DFB) laser is available in a standard 14-pin butterfly package equipped with a polarization maintaining fiber (PMF) to facilitate coupling to a modulator. It shows superb thermal stability, high side-mode suppression ratios (SMSR), very low relative intensity noise (RIN), and small linewidths. The modulation bandwidth is in excess of 1 GHz, and permits various techniques for stimulated Brillouin scattering (SBS) suppression. SBS is a detrimental effect that can occur at very high power levels into the fiber, and which leads to noise bursts.

绝对Max — 工作外壳温度 TOP [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续]: min:-20 °C；max:+65 °C 绝对Max — 存储温度 TSTG [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续]: min:-40 °C；max:+85 °C 绝对Max — 激光器正向直流电流 [实际1782系列表；未提供Title中完整1782A变型与功率及通道的对应关系；公共行未被分配给臆造的完整代码 / 连续]: max:750 mA

The 1782 laser component is characterized for use as a CW optical source in CATV and DWDM networks. The 1782 is dc-coupled with a built-in TEC, thermistor, and monitor photodiode. The device is mounted in a 14-pin, OC-48 pinout compatible butterfly package with the optical isolator mounted on the TEC. The 1782 incorporates a high efficiency coupling scheme to deliver 40 mW, 50 mW, 63 mW and 100 mW of CW optical power.

This series uses semiconductor modules in integrated or external-head packages, with air cooling, TEC cooling, precision temperature control, continuously adjustable power and internal TTL/ANALOG modulation. Fiber flanges or standard connectors are selectable. Convenient operation, broad wavelength choices, good beam quality and stability suit research and demanding optical applications. Systems cover 375nm to 2100nm, power from 1mW to 30W, core diameters from 3.5μm to 1000μm and NA0.12 to 0.23, with optional collimators of different apertures.
