Photonics Source provides 195 products. Download datasheets, request quotes, and compare function, price, and availability.
-
ST Adapter
Insertion Loss (dB) SM/PC: <0.2dB Insertion Loss (dB) SM/APC: <0.2dB Insertion Loss (dB) MM/PC: <0.2dB Retention Force: 200-600g Repeatability: <0.2dB(500times) -
ST Fiber Optic Connector
Model: 单模(SM), multiple模(MM) Applicable Fiber Type: 9/125μm (SM), 50/125μm, 62.5/125μm (MM) Ceramic Ferrule Hole Diameter: 125.0-125.5μm (SM), 126-129μm (MM) Ceramic Ferrule Concentricity: ≤1.0μm (SM), ≤3.0μm (MM) Insertion Loss: ≤0.30dB (SM), ≤0.20dB (UPC), ≤0.15dB (APC), ≤0.30dB (MM) -
SC Dual-core Fiber Optic Connector
Model: 单模(SM), multiple模(MM) Applicable Fiber Type: 9/125μm (SM), 50/125μm, 62.5/125μm (MM) Ceramic Ferrule Aperture: 125.0-125.5μm (SM), 126-129μm (MM) Ceramic Ferrule Concentricity: ≤1.0μm (SM), ≤3.0μm (MM) Insertion Loss: ≤0.30dB (SM), ≤0.20dB (UPC), ≤0.15dB (APC), ≤0.30dB (MM) -
SC Secure Latching Connector
Insertion Loss UPC Single-mode: <0.3dB Insertion Loss APC Single-mode: <0.3dB Insertion Loss PC Multi-mode: <0.3dB Return Loss UPC Single-mode: >50dB Return Loss APC Single-mode: >60dB -
SC Dual-core Fiber Optic Patch Cord
Insertion Loss (Grade A): ≤0.08dB Insertion Loss (Grade B): ≤0.12dB Insertion Loss (Grade C): ≤0.25dB Return Loss (PC): ≥50dB Return Loss (UPC): ≥50dB -
SC Single-mode Adapter
Insertion Loss SM/PC: <0.2dB Insertion Loss SM/APC: <0.2dB Insertion Loss MM/PC: <0.2dB Retention Force: 200-600g Repeatability: <0.2dB(500times) -
SC Duplex Adapter
Insertion Loss (dB) SM/PC: <0.2dB Insertion Loss (dB) SM/APC: <0.2dB Insertion Loss (dB) MM/PC: <0.2dB Retention Force: 200-600g Repeatability: <0.2dB(500times) -

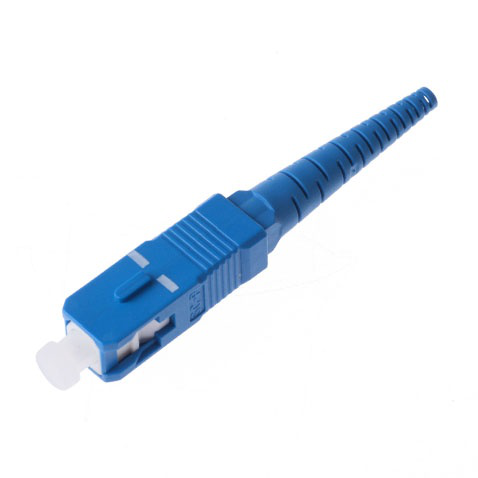

SC Single Core Fiber Optic Connector
Insertion Loss (Single Mode): <0.3dB Insertion Loss (Multimode): <0.3dB Return Loss (UPC): >50dB Return Loss (APC): >60dB Fiber Endface Geometric Specifications (Single Mode): 125.5μm, 同芯度<1μm -

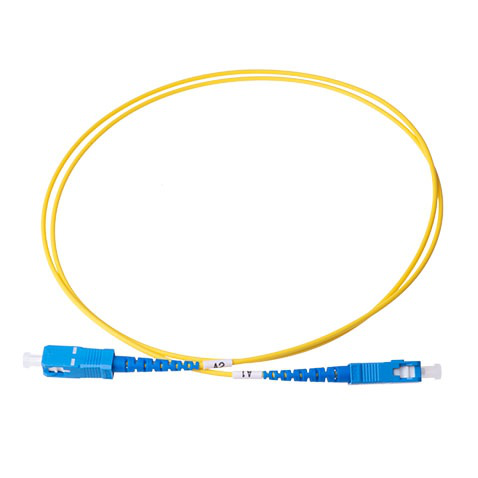

SC Single-Core Fiber Optic Patch Cord
Insertion Loss (Grade A): <0.08dB Insertion Loss (Grade B): <0.12dB Insertion Loss (Grade C): <0.25dB Return Loss (PC): ≥50dB Return Loss (UPC): ≥50dB -
MPO带锁光纤连接器
Insertion Loss (dB) MTP/MPO (超极级) SM 8F,12F: ≤0.25 Insertion Loss (dB) MTP/MPO (超极级) SM 24F: ≤0.35 Insertion Loss (dB) MTP/MPO (超极级) MM 8F,12F,16F,24F,32F: ≤0.25 Insertion Loss (dB) MTP/MPO (低极级) SM 8F,12F: ≤0.35 Insertion Loss (dB) MTP/MPO (低极级) SM 24F: ≤0.50 -

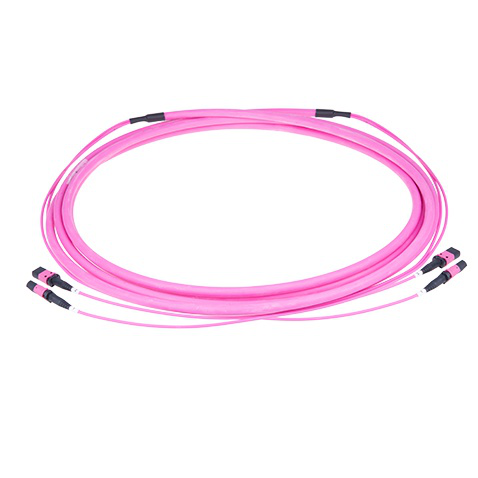

MPO Pre-terminated Trunk Branch Cable
Insertion Loss (dB) SM 8F,12F: ≤0.35dB Insertion Loss (dB) SM 24F: ≤0.5dB Insertion Loss (dB) MM 8F,12F,16F: ≤0.35dB Insertion Loss (dB) MM 24F,32F: ≤0.7dB Return Loss (dB) SM: ≥55dB -
MPO Push-Pull Boot Connector
Outer Diameter: 3.3mm Length: 48.5mm Front Length: 24.45mm Back Length: 9.3mm Insertion Loss: ≤0.1 -

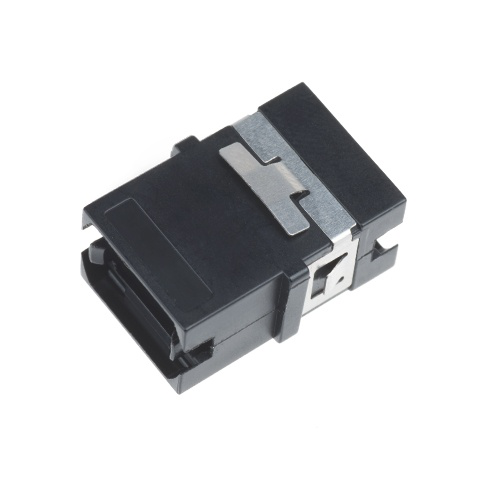

MPO Adapter
Type: SM/MM Operating Temperature: -40°C~+85°C -

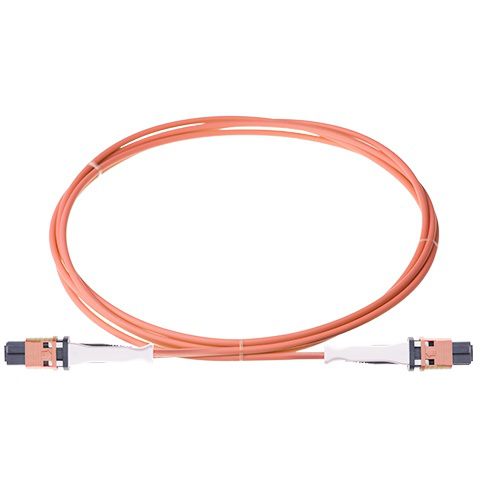

MPO/MTP 带拉杆 16&32 芯跳线
Insertion Loss (dB) MM超低损耗16F: ≤0.25dB Insertion Loss (dB) MM低损耗16F,32F: ≤0.35dB Insertion Loss (dB) SM低损耗16F: ≤0.7dB Insertion Loss (dB) MM低损耗16F: ≤0.7dB Return Loss (dB) MM超低损耗16F: ≥20dB -
MPO/MTP带拉杆12&24芯跳线
Insertion Loss (dB) MTP/MPO (超低损) SM: ≤0.25dB Insertion Loss (dB) MTP/MPO (超低损) MM: ≤0.35dB Insertion Loss (dB) MTP/MPO (低损) SM: ≤0.5dB Insertion Loss (dB) MTP/MPO (低损) MM: ≤0.35dB Insertion Loss (dB) MTP/MPO (标准) SM: ≤0.7dB -

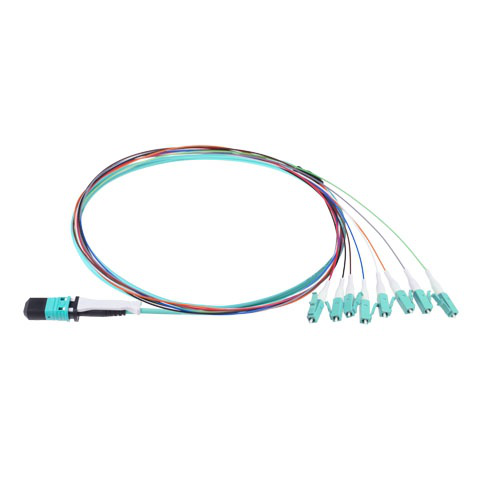

MPO/MTP Fanout Cable
Insertion Loss (UPC): <0.3dB Insertion Loss (APC): <0.3dB Insertion Loss (PC): <0.3dB Insertion Loss (MTP/MPO Standard SM): <0.7dB Insertion Loss (MTP/MPO Standard MM): <0.7dB -

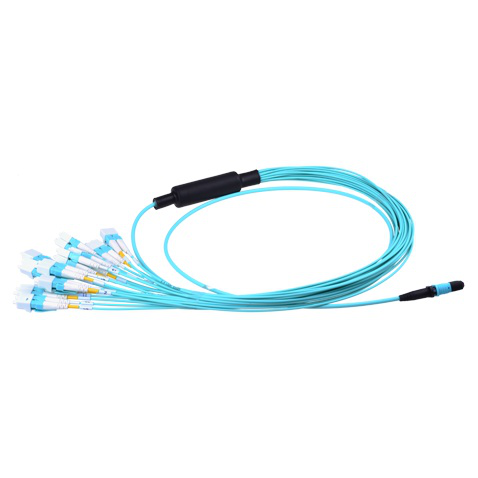

MPO/MTP-LC Fanout Cable
Insertion Loss LC-SM-UPC: ≤0.3dB Insertion Loss LC-MM-APC: ≤0.3dB Insertion Loss LC-MM-PC: ≤0.3dB Insertion Loss MTP/MPO-SM-Standard: ≤0.7dB Insertion Loss MTP/MPO-MM-Standard: ≤0.7dB -

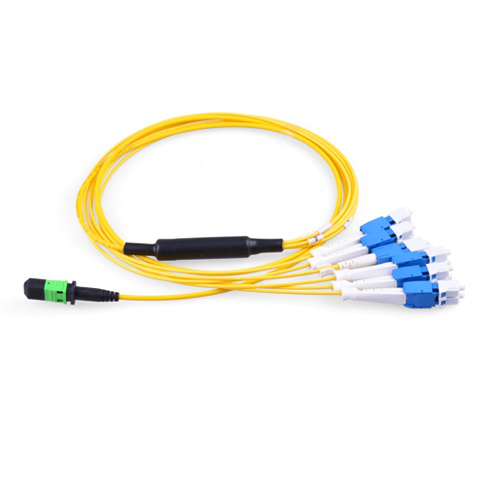

MPO/MTP-LC Uniboot Fanout Cable
Insertion Loss UPC SM LC Uniboot: ≤0.3dB Insertion Loss APC SM LC Uniboot: ≤0.3dB Insertion Loss PC MM LC Uniboot: ≤0.3dB Insertion Loss SM MTP/MPO (Standard): ≤0.7dB Insertion Loss MM MTP/MPO (Standard): ≤0.7dB -

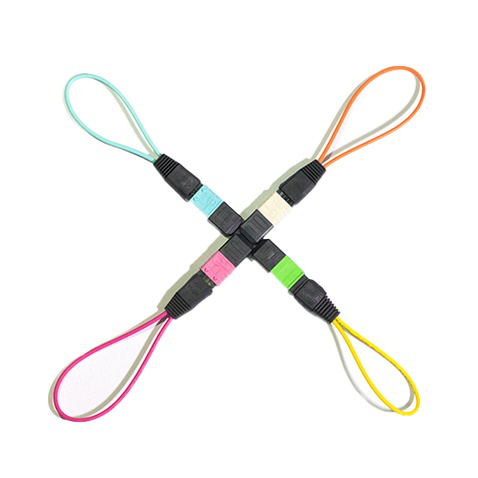

MPO/MTP Loopback
Insertion Loss (dB) SM 8F,12F (Low Grade): <0.7dB Insertion Loss (dB) SM 24F (Low Grade): <1.0dB Insertion Loss (dB) MM 8F,12F,16F (Low Grade): <0.7dB Insertion Loss (dB) MM 24F,32F (Low Grade): <1.0dB Insertion Loss (dB) SM 8F,12F (High Grade): <1.4dB -
MPO/MTP 16&32 Fiber Patch Cord
Insertion Loss (dB) MM MTP/MPO (Ultra Low Loss): ≤0.25dB Return Loss (dB) MM MTP/MPO (Ultra Low Loss): ≥20dB Insertion Loss (dB) MM MTP/MPO (Low Loss): ≤0.35dB Return Loss (dB) MM MTP/MPO (Low Loss): ≥20dB Insertion Loss (dB) SM MTP/MPO (Low Loss): ≤0.7dB
