Photonics Source provides 42 products. Download datasheets, request quotes, and compare function, price, and availability.
-

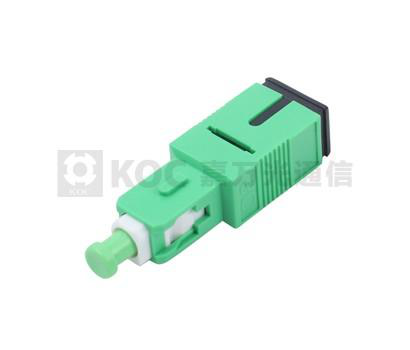

Variable Optical Attenuator
Wavelength Range 1310: 1310±50nm Wavelength Range 1550: 1550±50nm Wavelength Range 1310/1550 Dual Window: 1260~1650nm Wavelength Range 850/1310: 850±40nm or 1310±40nm Attenuation Range 1310: 0.6~60 -

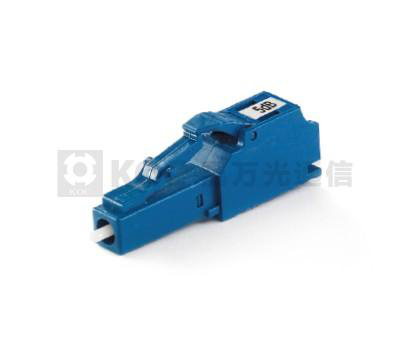

LC Attenuator
Attenuation Range: 0-30dB Available Wavelengths: 1310nm or 1550nm Fixed Attenuation Value: 1,2,3,5,10,15,20dB or optional Return Loss: ≥50dB (UPC), ≥60dB (APC) Attenuation Accuracy: +/-0.5 (1-5)dB, +/-10% (6-30)dB -

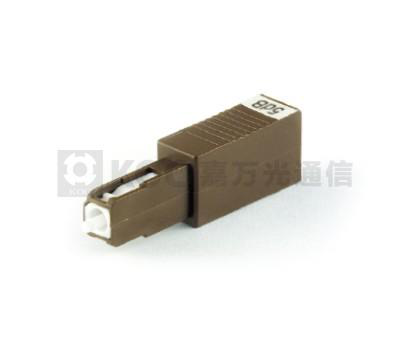

Fiber Optic Attenuator
Insertion Loss (dB): ≤5.0 Return Loss (dB): ≥55 Operating Wavelength Range (nm): 1260-1620 Operating Temperature Range (°C): -40~85 Storage Temperature Range (°C): -40~85 -

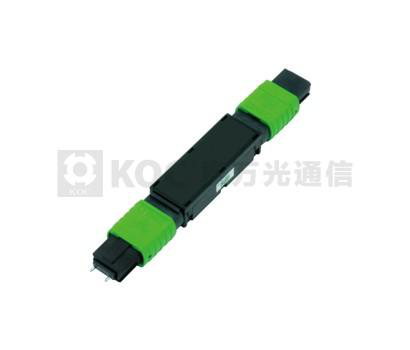

MPO Attenuator
Operation Wavelength: 1310/1550nm Attenuation Tolerance: ±1dB (at 2-10dB), ±10% (at 11-20dB) Return Loss: 60dB (8° Polishing, SM) Operating Temperature: -25°C~75°C Attenuation: 1~20dB -

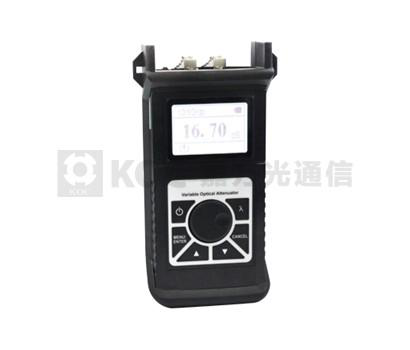

Hand-held Optical Attenuator
Operating Wavelength Range: 1310&1550nm Attenuation Range: 50dB, 60dB Accuracy: ±0.3@0-40dB / ±0.5@40-50dB / ±1.0@50-60dB Attenuation Resolution: 0.1dB Attenuation Repeatability: 0.05dB -

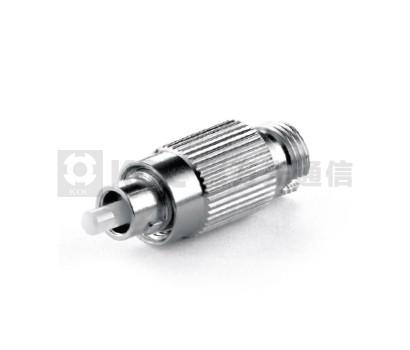

Variable Optical Attenuator
Wavelength (nm) 1310: 1310±50 Wavelength (nm) 1550: 1550±50 Wavelength (nm) 1310/1550 Dual Window: 1260~1650 Wavelength (nm) 850/1310: 850±40 or 1310±40 Attenuation Range (dB) 1310: 0.6~60 -

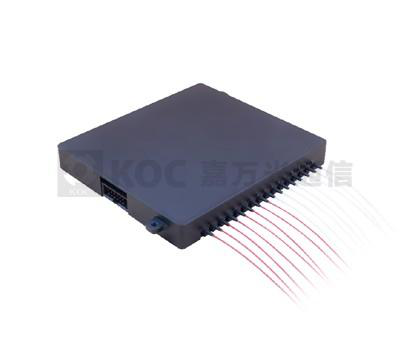

8-Channel MEMS VOA Array
Configuration: Bright Configuration: Dark Wavelength Range (nm): C band 1525-1570, L band 1570-1610 Attenuation Range (dB): 25/30/40 Return Loss (dB): 45 -

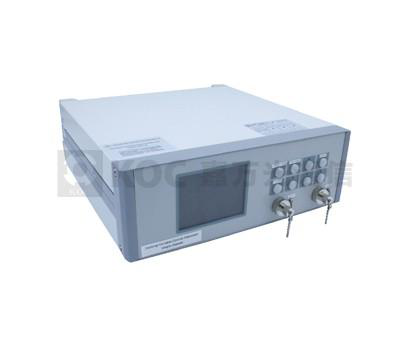

Desktop Variable Optical Attenuator
Operating Wavelength Range (Calibration): 1310&1550nm Attenuation Range: 60dB Accuracy: ±0.3@0-30dB / ±0.6@30-60dB Attenuation Resolution: 0.1dB Attenuation Repeatability: 0.2dB -

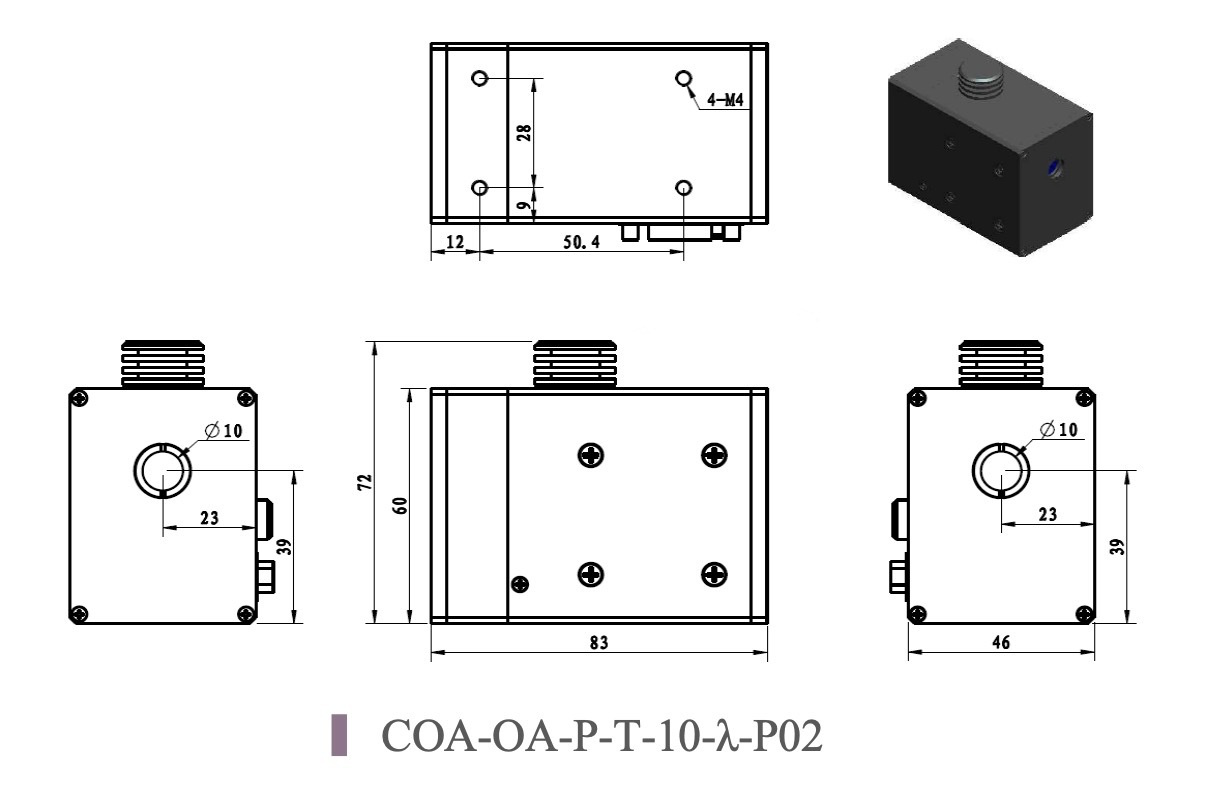

COA-OA-P-T-10-λ-P02
Housing Dimensions: 83x72x46mm Optical Aperture Diameter: 10mm Mounting Hole Size: M4 Distance from Optical Aperture Center to Bottom: 39mm Distance from Optical Aperture Center to Side: 23mm -
Unknown
Housing Material: Metal Fiber Type: Single-mode Connector Type: Standard fiber optic connector Operating Temperature Range: -40°C to +85°C Insertion Loss: ≤0.5dB -

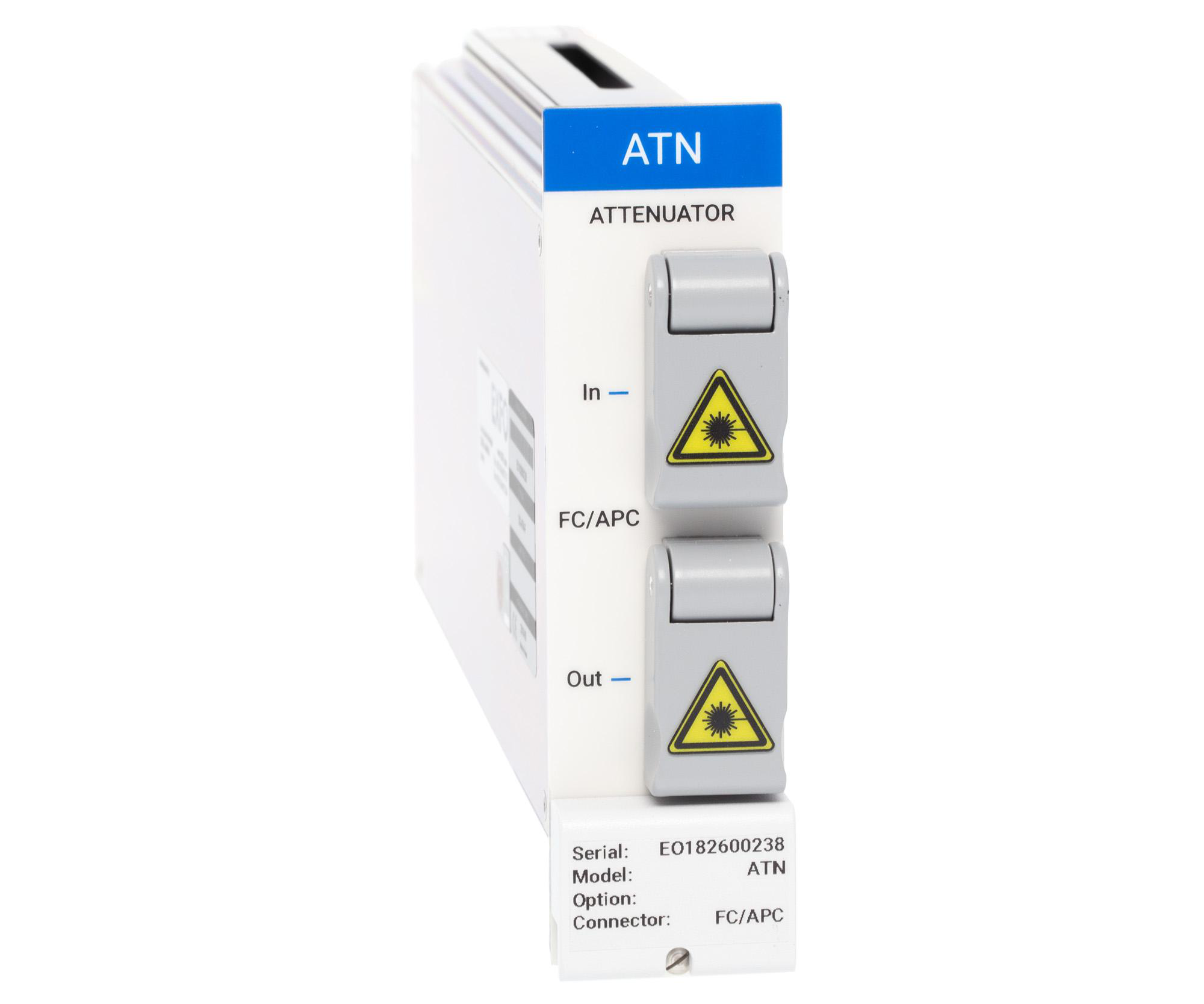

OSICS ATN
Wavelength Range (nm) SMF models: 1250 to 1650 Wavelength Range (nm) PMF models: 1440 to 1650, 1250 to 1510 Attenuation Range: IL to 60 dB (typical) Calibrated Range SMF models: Up to 40 dB at 1310 nm and 1550 nm Calibrated Range PMF models: Up to 40 dB at 1550 nm, 1625 nm, 1310 nm -

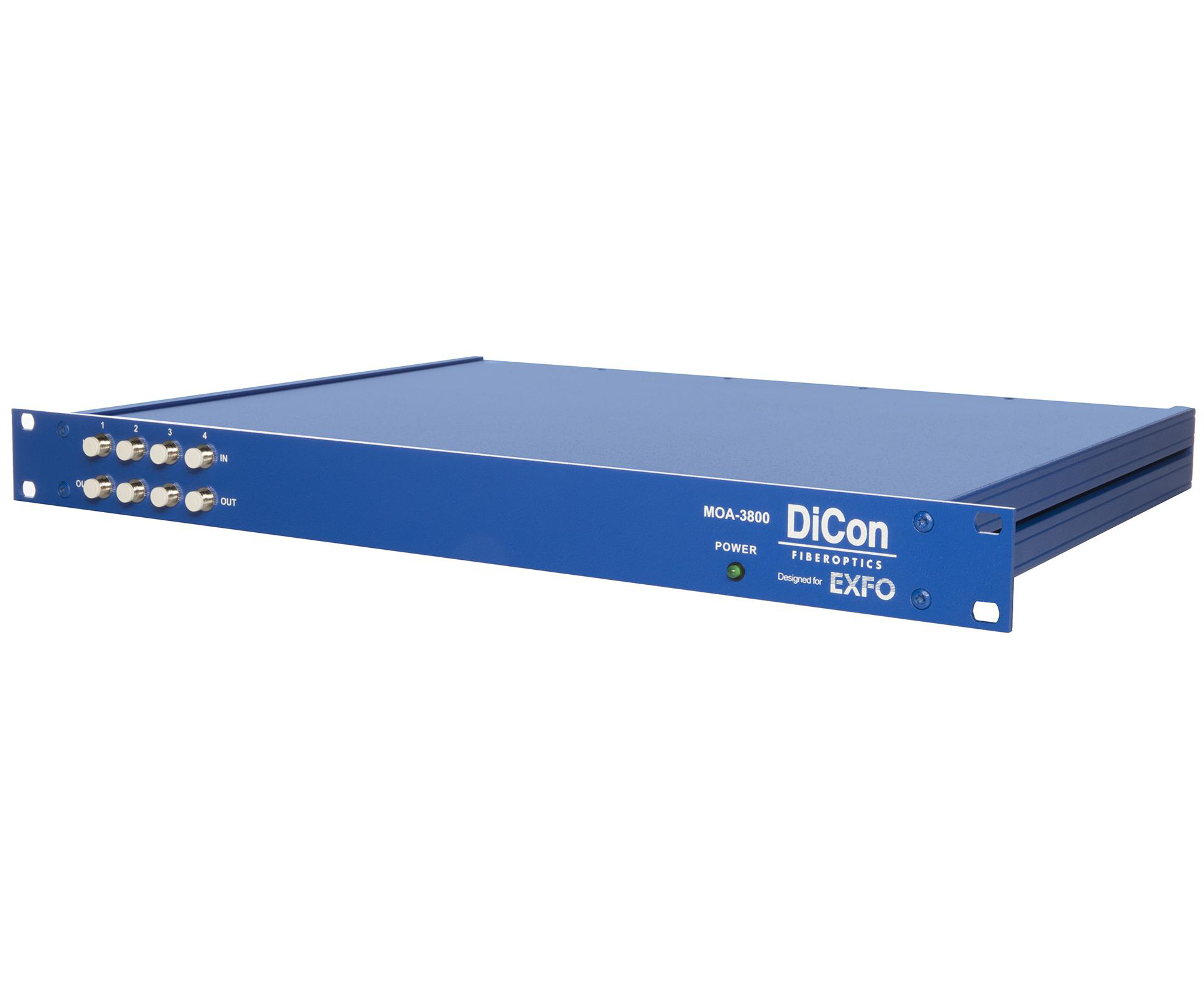

MOA-3800 Variable Attenuator
Attenuation Range: 40dB min (Singlemode), 30dB min (Multimode) Dynamic Power Range: -32 to 13dBm (Singlemode), -30 to 10dBm (Multimode) Output Accuracy: ±0.3dB max (Singlemode), ±0.3dBm max (Multimode) Tuning Resolution: 0.01dB Excess Loss: VOA Only: 0.8dB typ., 1.3dB max (Multimode); VOA Only: 0.8dB max, Self-Adjusting: 1.6dB max (Singlemode) -

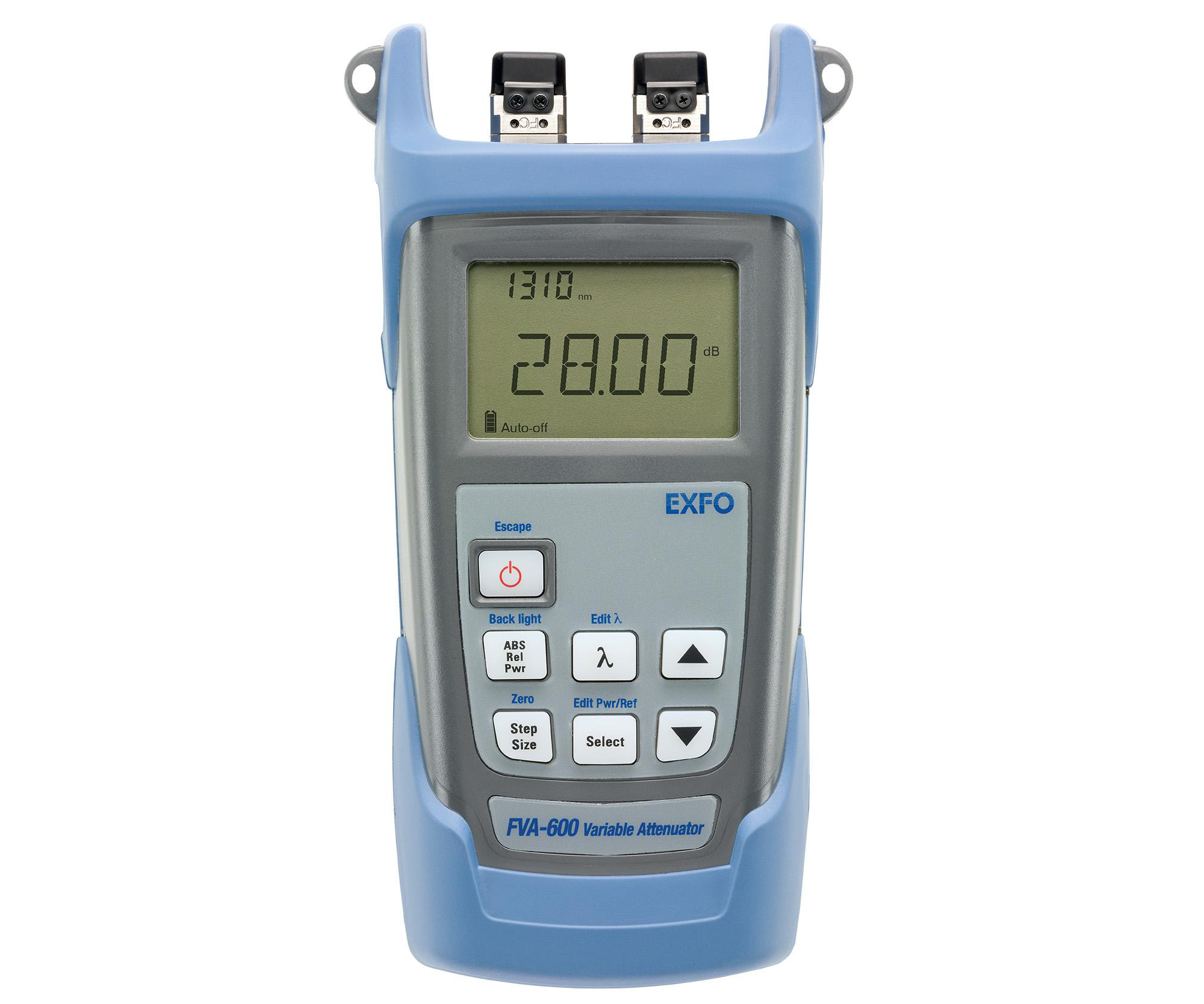

FVA-600 Variable Attenuator
Fiber Type: 9/125 Calibration Wavelengths (nm): 1310/1550 Wavelength Range (nm): 1250 to 1625 Wavelength Increment (nm): 1 Maximum Attenuation (dB): 65 -

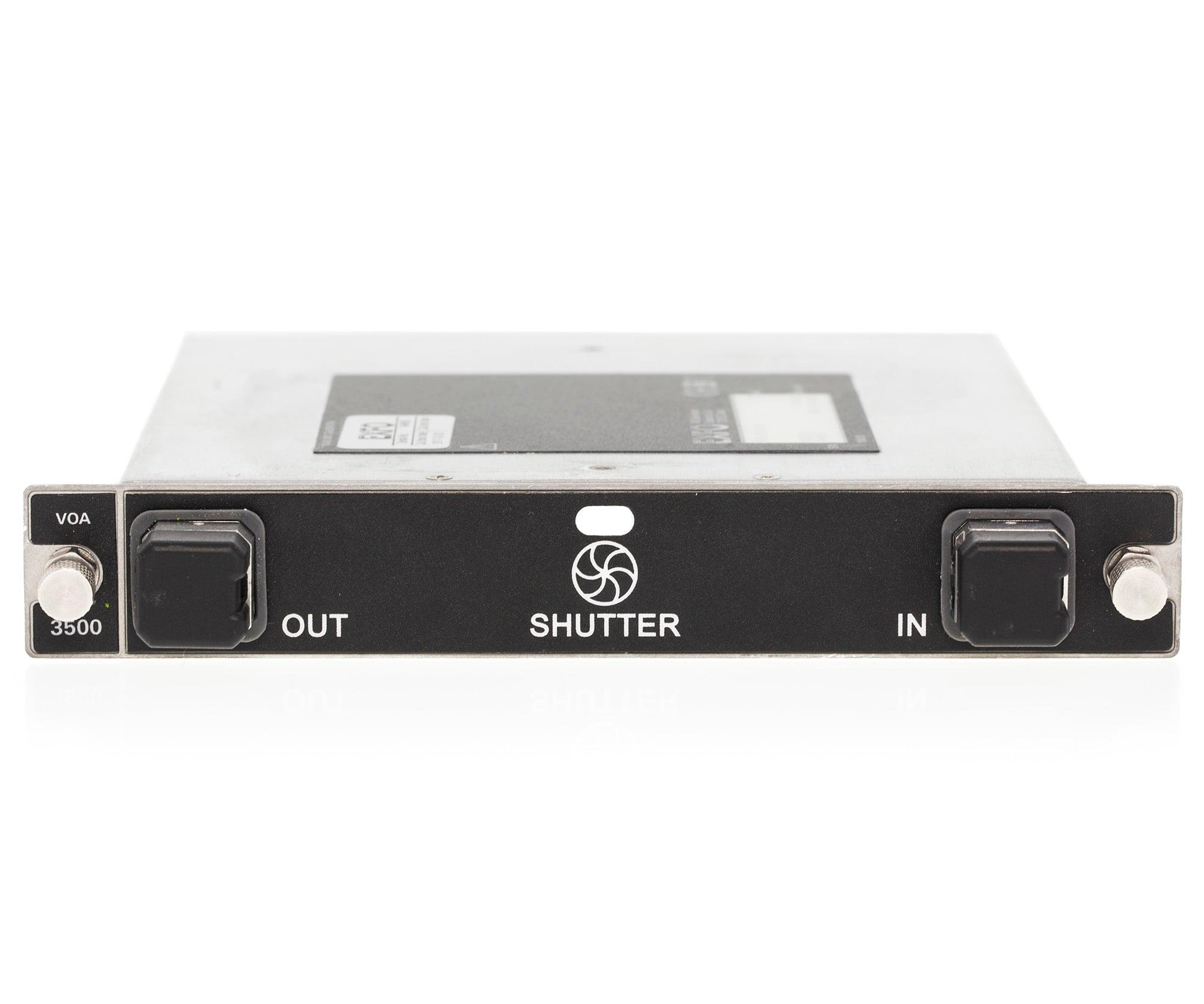

FTBx-3500 Variable Attenuator
Fiber Type: 9/125, 50/125, 62.5/125 Wavelength Range (nm): 1250 to 1650 (singlemode), 700 to 1350 (multimode) Maximum Attenuation (dB): ≥65 (singlemode), ≥60 (multimode) Insertion Loss (dB): 1.0 typical, 1.5 maximum (singlemode without power monitoring); 1.5 typical, 2.2 maximum (singlemode with power monitoring); 1.3 typical, 2.0 maximum (multimode without power monitoring); 1.5 typical, 2.2 maximum (multimode with power monitoring) Attenuation Setting Resolution (dB): 0.002 -

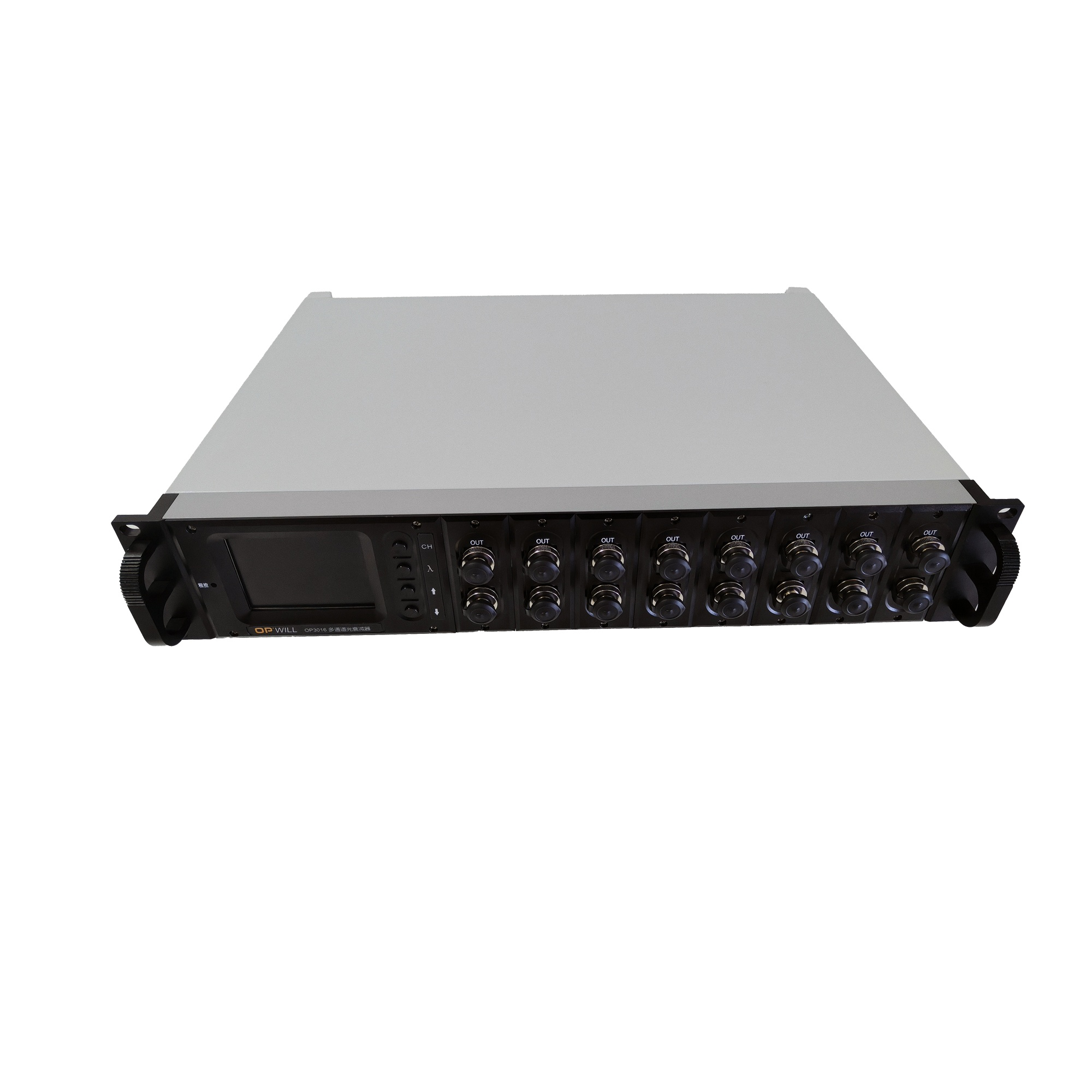

Unknown
Output Ports: 12 Input Ports: 1 Power Supply: AC 220V Dimensions: Standard 19-inch rack mount Weight: Approx. 5kg -
MY5501 Digital Variable Optical Attenuator
Calibration Wavelength (nm): 850/1300/1310/1490/1550/1625 Attenuation Range (dB): 2.5~60 Resolution (dB): 0.05 Insertion Loss (dB): ≤2.5 (maximum) Stability (dB): ±0.5 -
MY5001 Programmable Optical Attenuator
Wavelength Range (nm): 1260–1650 Fiber Type: 9/125μm Maximum Attenuation (dB): 65 Insertion Loss (dB): ≤1.5 Display Resolution (dB): 0.01 -
Online Adjustable Fiber Optic Attenuator
Center Wavelength (nm): 780nm, 850nm, 980nm, 1053nm, 1064nm or Customized Operating Bandwidth (nm): ±50 Insertion Loss (dB): 0.8 Attenuation Range (dB): 0.8~60 Polarization Dependent Loss (dB): 0.1 -
532~2050nm Polarization Manual Variable Optical Attenuator
Center Wavelength (nm): 2050,2000,1550,1310,1064,980,850,780,633,532 Operating Bandwidth (nm): ±40,±20 Maximum Insertion Loss (dB): 0.8,0.6 Minimum Extinction Ratio (dB): 18 Wavelength Range (nm): 0.8~60 -
Mechanical Variable Optical Attenuator (VOA)
Operating Center Wavelength (nm): 488,532,635,780,850,980,1064,1310,1550,2000 Maximum Power Loss (dB): 1.5,1.0,0.6 Maximum Wavelength Dependent Loss, Minimum Attenuation (dB): 0.3 Attenuation Range: Up to 60 dB Resolution within 10dB Attenuation Range (dB): 0.1
