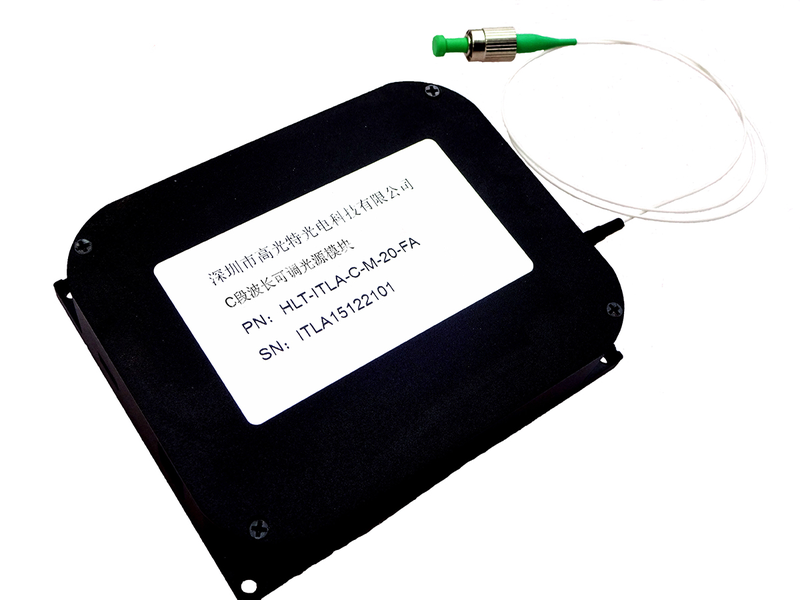

Tunable laser source C Band Wavelength Tunable Laser Source-NW HLT-ITLA-C-M-20-FA
Based on SG-DBR technology, the ITLA monolithically integrated with a Semiconductor Optical Amplifier (SOA) and an integral wavelength locker, all enclosed in a high reliability, hermetically sealed TOSA package .
Save to Favorites
Overview

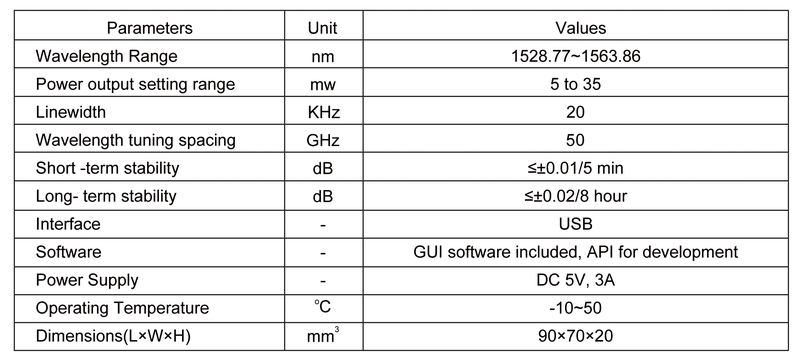

Specifications
| Parameter | Value |
|---|---|
| 波长范围 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | 1528.77~1563.86 nm |
| 输出功率设定范围 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | 5 to35 mw |
| 线宽 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | 20 KHz |
| 波长调谐间隔 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | 50 GHz |
| 短期稳定性 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系 / 5min] | ≤±0.01 |
| 长期稳定性 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系 / 8小时] | ≤±0.02 |
| 接口 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | USB |
| 软 Items [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | GUI software included,API for development |
| 电源 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | DC5V,3A |
| 工作温度 [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | -10~50 °C |
| 外形尺寸(L×W×H) [实际页面表格；未提供照片完整料号与表内配置的精确对应关系] | 90x70x20 |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
