40G IQ/QAM Lithium niobate modulator Modulator Sumitomo T.SBZH1.5-20PD-ADC Dual Drive Modulator T.SBZH1.5-20PD-ADC-12-014
In addition to supporting the traditional IQ/QAM modulation type,the dual drive IQ modulator has a greater degree of freedom to achieve arbitrary phase control for each arm of the sub Maher Zed interferometer to achieve accurate phase matching or phase difference. This optical modulator is a DQPSK Dual-Drive( Quad GPPO) Mach-Zehnder modulator with modulation speed of up to 22.5Gbaud. The structure of dual drive MZ interferometers enables exact phase match or arbitrary phase difference control, which make it ideal for some novel application. This optical modulator integrates a monitor PD chip and coupler function for automatic bias control (ABC) for the compensation system of DC-drift and other phenomena.
Save to Favorites
Overview

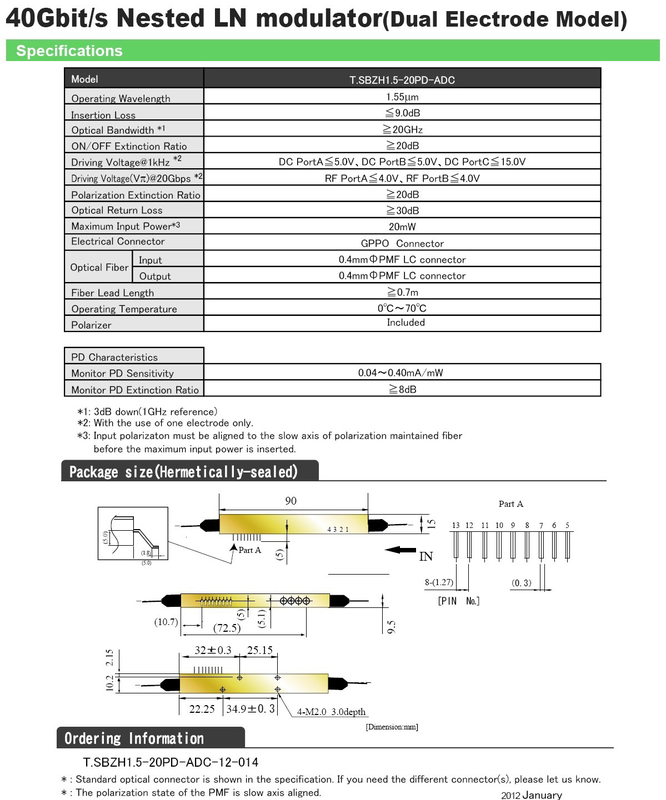

Specifications
| Parameter | Value |
|---|---|
| 工作波长 | 1.55µm |
| 插入损耗 | ≤9.0dB |
| 光学带宽 [下降3dB（以1GHz为参考）] | ≥20GHz |
| ON/OFF 消光比 | ≥20dB |
| 驱动电压 @1kHz [仅使用一 complete plans电极；@1kHz] | DC PortA≤5.0V, DC PortB≤5.0V, DC PortC≤15.0V |
| 驱动电压 (Vπ) @20Gbps [仅使用一 complete plans电极；@20Gbps] | RF PortA≤4.0V, RF PortB≤4.0V |
| 偏振消光比 | ≥20dB |
| 光回损 | ≥30dB |
| 最大输入功率 [在施加最大输入功率之前，输入偏振必须与保偏光纤的慢轴对准。] | 20mW |
| 电连接器 | GPPO Connector |
| 光纤-输入 | 0.4mmΦPMF LC connector |
| 光纤 - 输出 | 0.4mmΦPMF LC connector |
| 引出光纤长度 | ≥0.7m |
| 工作温度 | 0°C~70°C |
| 偏振片 | Included |
| 监测PD灵敏度 | 0.04~0.40mA/mW |
| 监测PD消光比 | ≥8dB |
