1310nm SLED Broadband light source
The 1310nm SLED broadband source supports distributed fiber sensing, passive-component testing and spectral analysis. A highly stable superluminescent diode produces a Gaussian-shaped spectrum, and special optical processing maintains low spectral ripple and stable mean wavelength.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | min:1290 nm；typical:1310 nm；max:1330 nm |
| Output Power | min:2 mW；typical:5 mW；max:20 mW |
| Power stability over the full temperature range | typical:3 %；max:5 % |
| Fiber Type | SMF-28e |
| Fiber output end type | FC/APC,FC/PC,LC/PC,SC/PC or other |
| Power supply [@3A Power supply (Module), AC220V@50Hz(Benchtop) / Module / benchtop] | DC 5V@3A power supply (module), AC220V@50Hz (benchtop) |
| Power Dissipation | <10W |
| Power supply Interface | DB9-male Connectors |
| Communication Interface | RS232 |
| Module Dimensions | 125 mm × 150 mm × 20 mm |
| Benchtop Dimensions | 260 mm × 162 mm × 76 mm |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
Related Products
-
1.0um ASE Broadband Light Source MCASE-Y-13-T-2-1-FA-T1
Superluminescent Diodes
Mchlight
Operating wavelength [Operating wavelength 1030-1080nm]: 1030-1080 nm Spectral width: 50 nm Output Power [Output Power optional]: 10-100mW selectable (fixed power), with optional power adjustment
Mingchuang Optoelectronics' 1.0um-band ASE broadband source uses ytterbium-fiber gain and spectral flattening with specialized ACC/APC circuitry and precision ATC control for accurate, stable operation. A large color LCD displays current and power. Stable output and optional continuously adjustable output are available. Communication interfaces and host software can be supplied. It is ideal for optical-component production/testing and fiber sensing, with module packaging available for integration.
-
2.0um ASE Broadband Light Source MCASE-T-13-T-2-1-FA-T1
Superluminescent Diodes
Mchlight
Operating wavelength Range [Operating Wavelength 1850-2050nm]: 1850-2000 nm Spectral width @20dB: ≥100 nm Output Power [Output Power optional]: 10-50mW selectable (fixed power); adjustable-power function optional
Mingchuang Optoelectronics' 2.0um-band ASE broadband source uses thulium-fiber gain and spectral flattening with specialized ACC/APC circuitry and precision ATC control for accurate, stable operation. A large color LCD displays current and power. Stable output and optional continuously adjustable output are available. Communication interfaces and host software can be supplied. It is ideal for optical-component production/testing and spectral analysis, with module packaging available for integration.
-

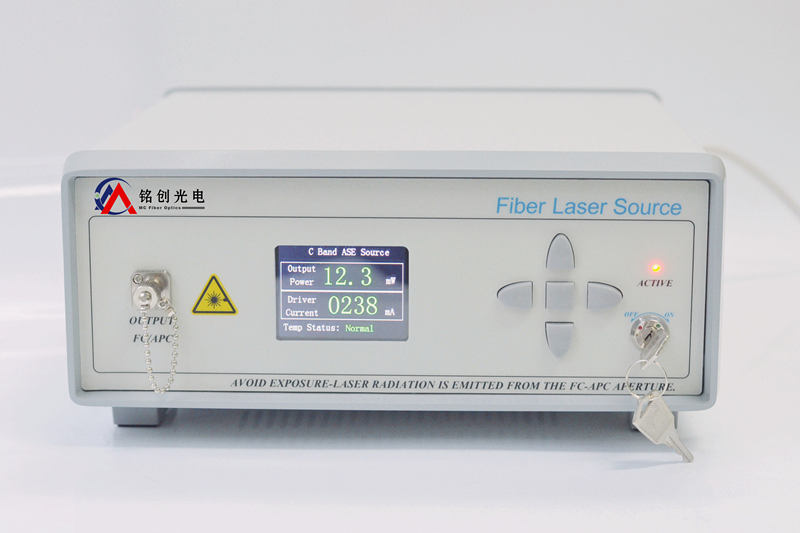

C++ Wavelength Band ASE Broadband Light Source MCASE-C++-13-T-S2-1-FA-T1
Superluminescent Diodes
Mchlight
Operating wavelength [Operating wavelength 1524-1572nm]: 1524-1572 nm Spectral width: 35 nm Output Power [Output Power optional]: 10/20/50/100/200 Power adjustable Function optional
Mingchuang Optoelectronics' C-band ASE broadband source extends the wavelength range of the C-band broadband source. It uses erbium-doped fiber gain amplification and spectral-flattening technology, with specialized ACC/APC circuitry and high-precision ATC temperature control to ensure accurate, highly stable laser operation. A large color LCD clearly displays current and power. Output power is stable, with adjustable continuous output available as an option. Communication interfaces and PC software can be supplied to customer requirements. The C++-band ASE source is ideal for optical-component production testing and fiber sensing and is available as a module for easy customer integration.
-
C+L Wavelength Band ASE Broadband Light Source MCASE-CL-13-T-2-1-FA-T1
Superluminescent Diodes
Mchlight
Operating wavelength [Operating wavelength 1528-1603nm]: 1528-1603 nm Spectral width: 75 nm Output Power [Output Power optional]: 10-100mW selectable (fixed power), with optional power adjustment
Mingchuang Optoelectronics' C+L-band ASE broadband source combines erbium-doped fiber gain amplification with spectral-flattening technology. Specialized ACC/APC circuitry and high-precision ATC temperature control ensure accurate, highly stable laser operation. A large color LCD clearly displays current and power. Output power is stable, with adjustable continuous output available as an option. Communication interfaces and PC software can be supplied to customer requirements. With a spectral width of 75nm, the C+L-band ASE source serves multiple purposes and is ideal for optical-component production testing and fiber sensing. A module version is available for easy customer integration.
-

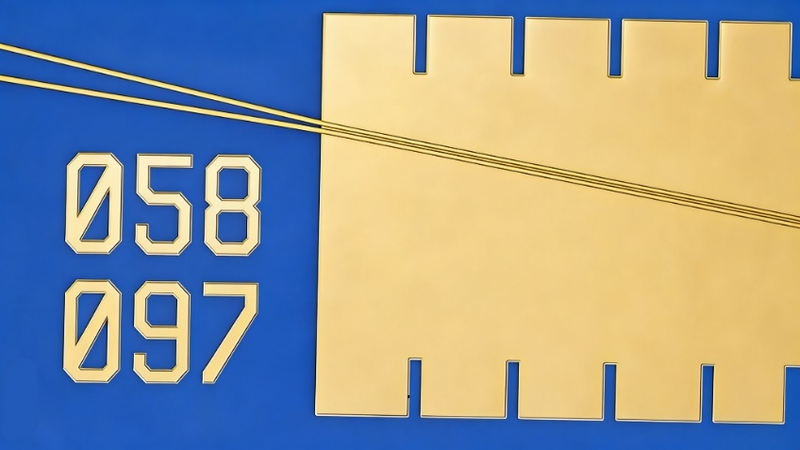

O-band SLD (OCT, Optical Gyroscope)
