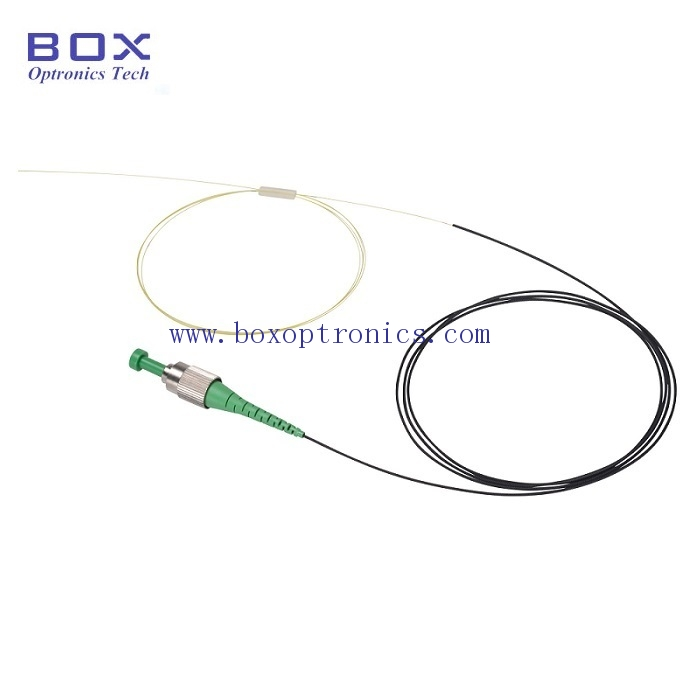

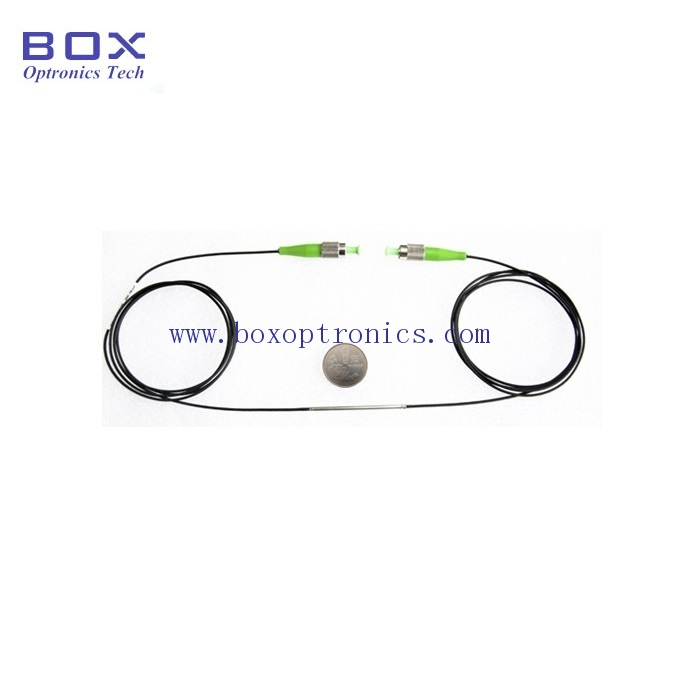

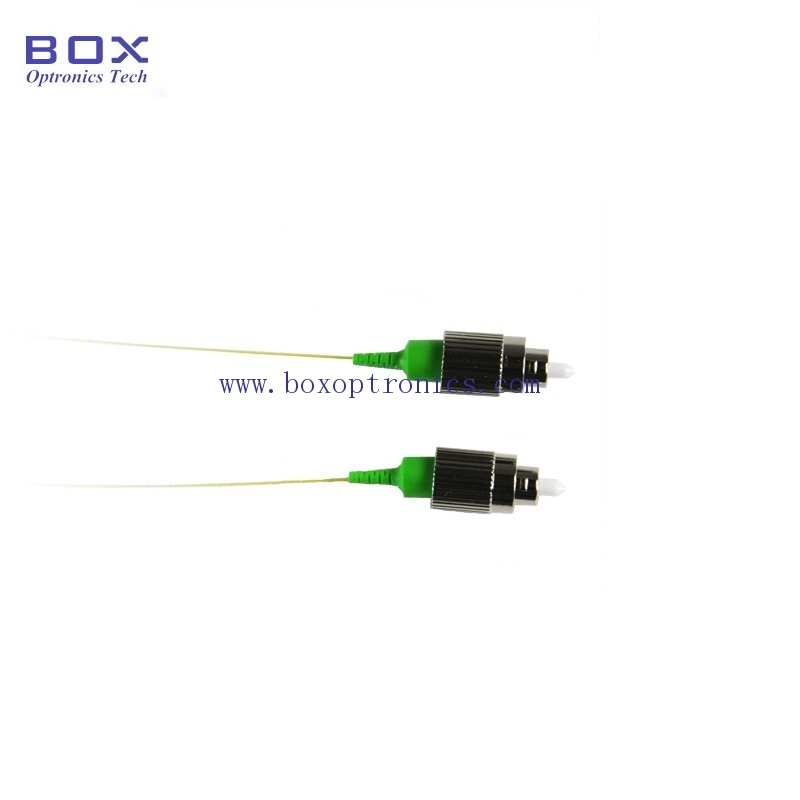

Apodized fiber grating
Fiber Bragg gratings are among the most significant developments in fiber technology because of their flexibility and distinctive filtering properties. Their low insertion loss, high wavelength selectivity, low polarization-dependent loss and low polarization-mode dispersion make them key components in dense wavelength-division multiplexing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 中心波长 [±0.05] | typical:1550 nm |
| 反射率 [±0.5%] | typical: （1-99.999）% |
| FWHM [2-30] | 2-30 nm |
| 边模抑制比 [>20] | >20 dB |
| FBG长度 [0.2-50] | 0.2-50 mm |
| 吸附式涂层 | Acrylate |
| 光纤类型 | HI 980, HI1060, SMF-28e, PM980, PM1550 or Custom |
| 工作温度 | -5~80℃ |
| 色散率 | 33.3ps/nm; 555.6ps/nm |
Applications
Key Features
Datasheet
