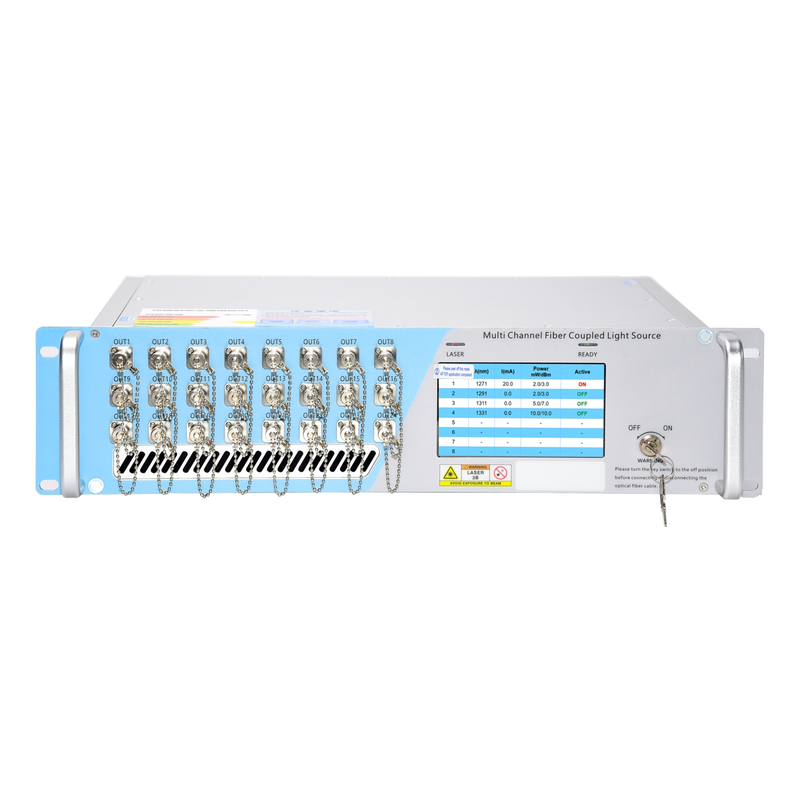

O Band multichannel continuous-wave fiber light source MC-FL-8-8-1271~1341-10/20-SM-B2
The multichannel desktop source is research and production-test equipment providing multichannel output at different laser wavelengths or multiple wavelengths through one channel. It covers communications wavelengths with stable spectrum and power. Numerous wavelength choices, independently adjustable channel parameters, convenient operation and high safety support fiber sensing, optical-component testing, biomedical imaging, semiconductor inspection and machine-vision inspection, meeting requirements for stable multichannel spectra.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| 激光器最大Quantity | typical: 8 |
| 输出光纤最大通道数 | 8 |
| 波长 | typical:1271、1281、1291、1301、1311、1321、1331、1341 |
| 波长精度 | typical:≤±1 |
| 光谱宽度 | typical:≤0.1 nm |
| 输出光功率 [规格可选] | typical:≥10；≥20 |
| 功率调节范围 | typical:10~100% |
| 短期稳定度 [等效≤±0.5% / 15分钟] | typical:≤ ±0.02 |
| 长期稳定度 [等效≤±1.2% / 8小时] | typical:≤ ±0.05 |
| 偏振态 | Random |
| 光纤 and 连接头 | Corning SMF-28；FC/APC |
| 控制方式 | Touchscreen / RS232 serial communication |
| 通信接口 | DB9 Female |
| 供电 | 100~240V AC, <30W |
| 尺寸 | 255(W)×322(D)×115(H) |
| 工作温度范围 | -5~+35°C |
| 工作湿度范围 | 0~70% |
Applications
Key Features
Datasheet
