Knight Series ps Green light 532 nm Laser Knight-Green-50
All Knight series industrial picosecond 532 lasers undergo high-temperature burn-in, thermal shock and vibration reliability testing to ensure long-term reliability under 7/24 industrial production conditions. The Knight picosecond green laser provides up to 100 W and pulse energy up to 100μJ. It offers excellent overall performance in precision machining of brittle materials, transparent-material processing, coating removal from 3C products, precision ceramic marking and cutting optoelectronic modules such as fingerprint and camera modules.
Save to Favorites
Overview

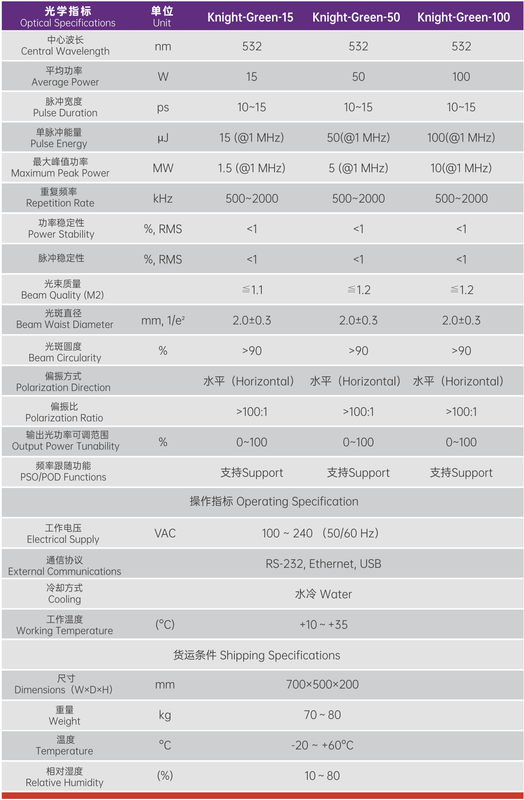

Specifications
| Parameter | Value |
|---|---|
| 中心波长 | 532 nm |
| 平均功率 | 50 W |
| 脉冲宽度 | 10~15 ps |
| 单脉冲能量 [@1 MHz；@1 MHz)] | 50(@1 MHz) |
| 最大峰值功率 [@1 MHz；@1 MHz)] | 5(@1 MHz) |
| 重复频率 | 500~2000 kHz |
| 功率稳定性 [RMS] | <1 % |
| 脉冲稳定性 [RMS] | <1 % |
| 光束质量 M2 | ≤1.2 |
| 光斑直径 [1/e²] | 2.0±0.3 mm |
| 光斑圆度 | >90 % |
| 偏振方式 | Horizontal |
| 偏振比 | >100:1 |
| 输出光功率可调范围 | 0~100 % |
| 频率跟随Function | Supported |
| 工作电压 [50/60 Hz] | 100~240（50/60 Hz） |
| 通信协议 | RS-232, Ethernet, USB |
| 冷却方式 | Water cooling Water |
| 工作温度 | +10~+35 °C |
| 货运尺寸 [W×D×H] | 700 mm × 500 mm × 200 mm |
| 货运重量 | 70~80 kg |
| 货运温度 | -20~+60°C |
| 货运相对湿度 | 10~80 % |
Applications
Key Features
Datasheet
