Knight Series ps Green light 532 nm Laser Knight-Green-15

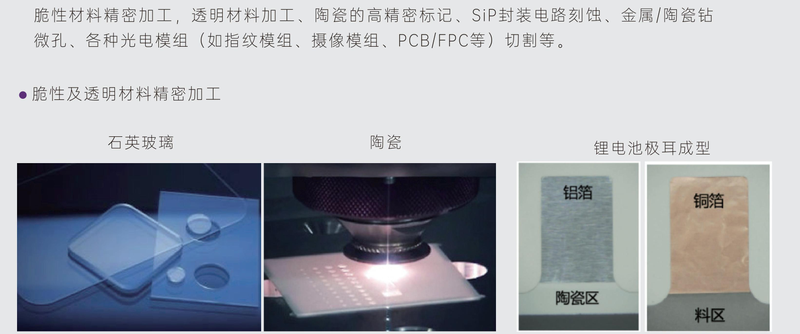

All Knight series industrial picosecond 532 lasers undergo high-temperature burn-in, thermal shock and vibration reliability testing to ensure long-term reliability under 7/24 industrial production conditions. The Knight picosecond green laser provides up to 100 W and pulse energy up to 100μJ. It offers excellent overall performance in precision machining of brittle materials, transparent-material processing, coating removal from 3C products, precision ceramic marking and cutting optoelectronic modules such as fingerprint and camera modules.
Save to Favorites
Overview
Specifications

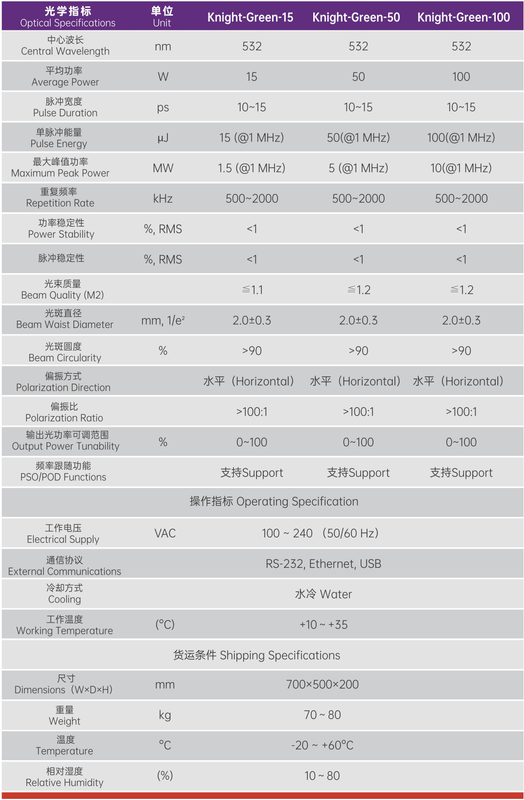

| Parameter | Value |
|---|---|
| Center Wavelength | 532 nm |
| Average Power | 15 W |
| Pulse Width | 10~15 ps |
| Single-pulse energy [@1 MHz；@1 MHz)] | 15(@1 MHz) |
| Max Peak power [@1 MHz；@1 MHz)] | 1.5(@1 MHz) |
| Repetition Rate | 500~2000 kHz |
| Power stability [RMS] | <1 % |
| Pulse Stability [RMS] | <1 % |
| Beam quality M2 | ≤1.1 |
| Spot diameter [1/e²] | 2.0±0.3 mm |
| Spot roundness | >90 % |
| Polarization method | Horizontal |
| Polarization ratio | >100:1 |
| Optical output power adjustment range | 0~100 % |
| Frequency following function | Supported |
| Operating Voltage [50/60 Hz] | 100~240（50/60 Hz） |
| Communication Protocol | RS-232, Ethernet, USB |
| Cooling method | Water cooling Water |
| Operating Temperature | +10~+35 °C |
| Shipping dimensions [W×D×H] | 700 mm × 500 mm × 200 mm |
| Shipping weight | 70~80 kg |
| Shipping temperature | -20~+60°C |
| Shipping relative humidity | 10~80 % |
