1.0μm High-Reliability Single-Frequency Seed Source
Donglai Technology's 1.0μm single-frequency seed source is an independently owned laser technology with internationally advanced performance. An ultracompact short DBR cavity avoids mode hopping and produces ultranarrow-linewidth single-longitudinal-mode output. Its core technology is highly doped specialty fiber, used to form a centimeter-scale single-frequency cavity for kHz-level linewidth without mode hopping. Optimized circuitry provides high frequency stability and low intensity noise. Special temperature-control protection and shock/vibration-resistant cavity design ensure stable operation in harsh external environments. Features: ultranarrow linewidth; no mode hopping or burst noise; high side-mode suppression; low relative intensity noise (R IN); good vibration resistance and high/low-temperature performance.
Save to Favorites
Overview

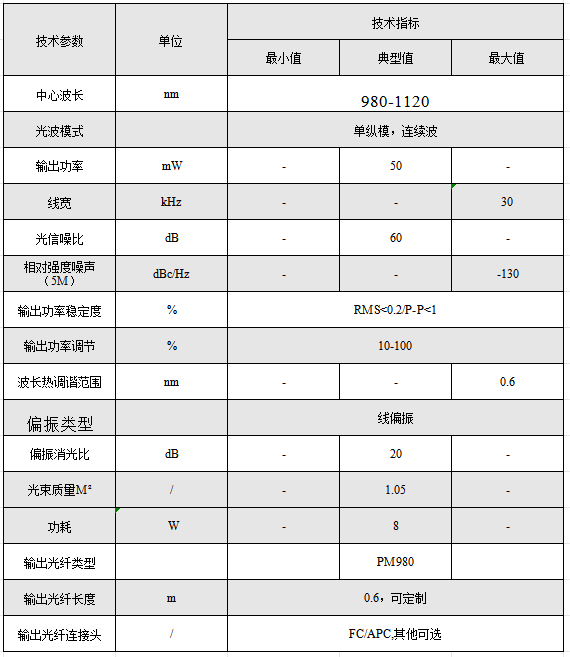

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 980-1120 nm |
| Optical Wave Mode | Single longitudinal mode , CW |
| Output Power | Typical ：50 mW |
| Linewidth | Max ：30 kHz |
| Optical signal-to-noise ratio | Typical ：60 dB |
| Relative Intensity Noise [5M] | Max ：-130 dBc/Hz |
| Output Power Stability | RMS<0.2 / P-P<1 |
| Output Power adjustment | 10-100 % |
| Wavelength Thermal Tuning Range | Max ：0.6 nm |
| Polarization type | Linear polarization |
| Polarization Extinction ratio | Typical ：20 dB |
| Beam quality M² | M²<1.05 |
| Operating voltage | 12 or other |
| Power consumption | Typical ：8 W |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Storage temperature | Min ：-40 °C； Max ：70 °C |
| Output Fiber Type | Typical ：PM980 |
| Output Fiber Length | 0.6, customizable |
| Output Fiber connector | FC/APC, Other optional |
| Specifications Dimensions | 175(L)*140(W)*25(H) |
