1.0μm Ultranarrow-Linewidth Single-Frequency Seed Source
The 1.0 μm ultranarrow-linewidth fiber laser is entirely independently owned intellectual property with internationally advanced performance. A special resonator structure combines noise suppression and linewidth narrowing to deliver ultranarrow output down to the kHz level. Features: ultranarrow linewidth; no mode hopping or burst noise; high side-mode suppression ratio; low relative intensity noise (RIN); good vibration resistance and high/low-temperature performance.
Save to Favorites
Overview

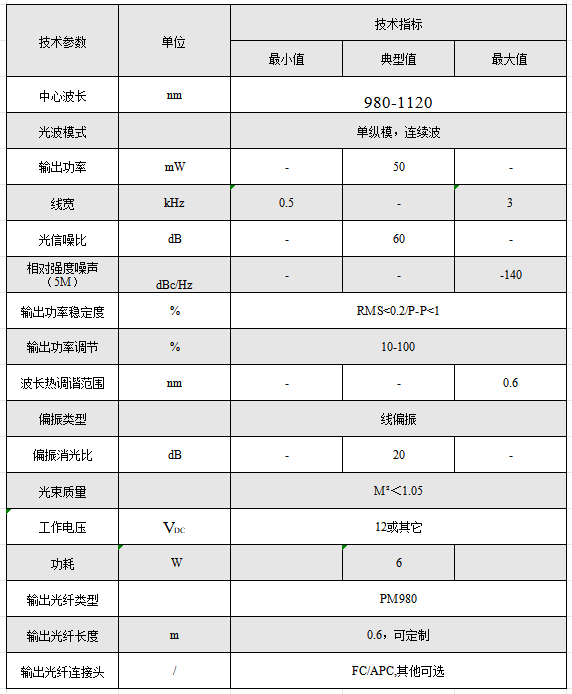

Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 980-1120 nm |
| Optical Wave Mode | Single longitudinal mode , CW |
| Output Power | Typical ：50 mW |
| Linewidth | Min ：0.4 kHz； Typical ：2 kHz； Max ：3 kHz |
| Optical signal-to-noise ratio | Typical ：60 dB |
| Relative Intensity Noise [5M] | Max ：-140 dBc/Hz |
| Output Power Stability | RMS<0.2 / P-P<1 |
| Output Power adjustment | 10-100 % |
| Wavelength Thermal Tuning Range | Max ：0.6 nm |
| Polarization type | Linear polarization |
| Polarization Extinction ratio | Typical ：20 dB |
| Beam quality M² | M²<1.05 |
| Operating voltage | 12 or other |
| Power consumption | Typical ：6 W |
| Operating temperature | Min ：-10 °C； Max ：45 °C |
| Storage temperature | Min ：-40 °C； Max ：70 °C |
| Output Fiber Type | Typical ：PM980 |
| Output Fiber Length | 0.6, customizable |
| Output Fiber connector | FC/APC, Other optional |
| Specifications Dimensions | 175(L)*140(W)*25(H) |
