TR-A-07-12NGR Portable Integrated Green Laser TR-A-12NGR
Operating at 532nm green, this product combines air cooling and intelligent temperature control with M²<1.2 beam quality and <3% power fluctuation during continuous operation. High power and broad compatibility support efficient industrial engraving and volume metal/nonmetal production in manufacturing, packaging and other throughput-focused applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 532nm |
| Output Average Power [@50kHz] | >12W@50kHz |
| Max Single-pulse energy [@50KHz] | 0.24mJ@50KHz |
| Pulse Repetition Rate | 1-150KHz |
| Pulse width [@50KHz] | <20ns@50KHz |
| Average Power stability [over 12 hours] | <3% over 12 hours |
| Spatial Mode | TEM00 (M²< 1.2) |
| Spot roundness | > 90% |
| Output port Spot size | 0.8mm |
| Beam Divergence Angle | <0.2mRad |
| Beam Pointing Stability | <20µrad/ºC |
| Degree of polarization [Horizontal] | > 100:1 Horizontal |
| Warm-Up Time | <30mins |
| Operating environment Temperature | 15℃-30℃ |
| Operating environment Humidity [non-condensing] | 20 -80 non-condensing |
| Cooling method | Air |

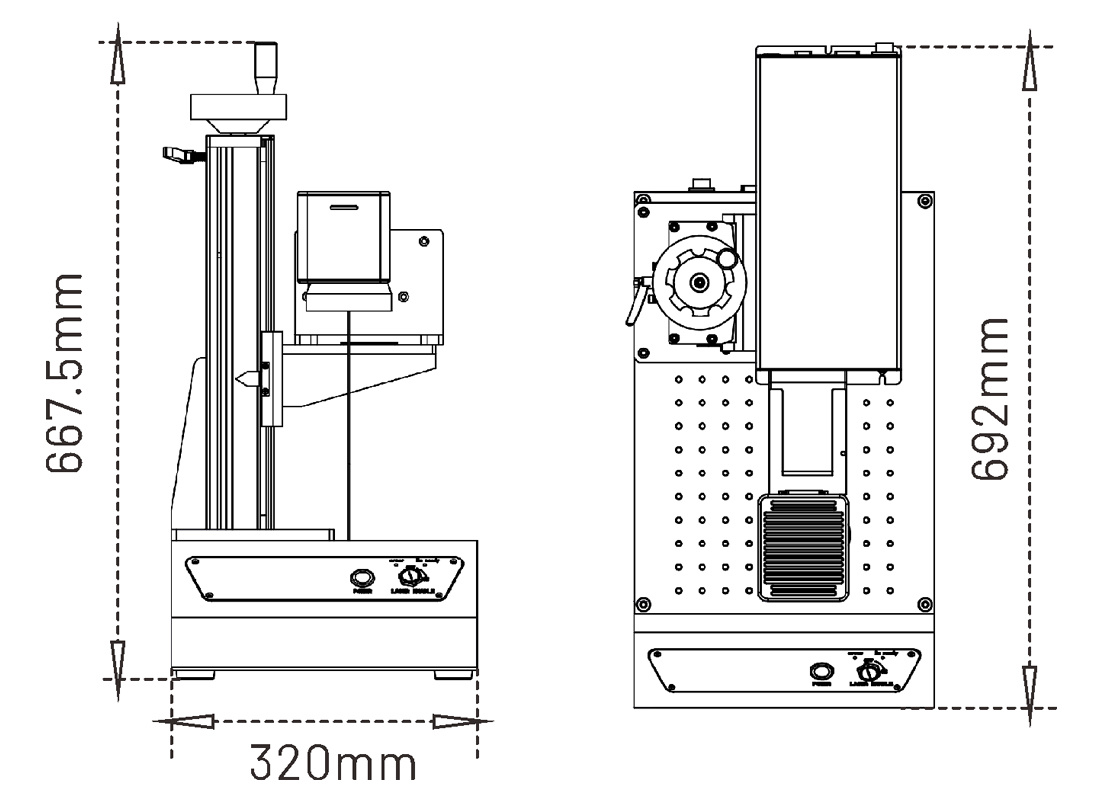

| Volume | 692 mm × 320 mm × 667.5 mm |
| Weight | 23KG |
