TR-A-03-05NUV Portable Integrated Ultraviolet Laser TR-A-05NUV
Using all-solid-state ultraviolet laser technology at 355nm, this product offers selectable 3W-5W power, an integrated air-cooling system and a compact body weighing 23kg overall. It supports static and low-speed dynamic marking for miniaturized, flexible production.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 355nm |
| Output Average Power [@40kHz] | >5W@40kHz |
| Max Single-pulse energy [@40KHz] | 0.12mJ@40KHz |
| Pulse Repetition Rate | 1-150KHz |
| Pulse width [@40KHz] | <18ns@40KHz |
| Average Power stability [over 12 hours] | <3% over 12 hours |
| Spatial Mode | TEM00 (M²< 1.2) |
| Spot roundness | > 90% |
| Output port Spot size | 0.8mm |
| Beam Divergence Angle | <0.2mRad |
| Beam Pointing Stability | <20µrad/ºC |
| Degree of polarization [Horizontal] | > 100:1 Horizontal |
| Warm-Up Time | <30mins |
| Operating environment Temperature | 15℃-30℃ |
| Operating environment Humidity [non-condensing] | 20 -80 non-condensing |
| Cooling method | Air |

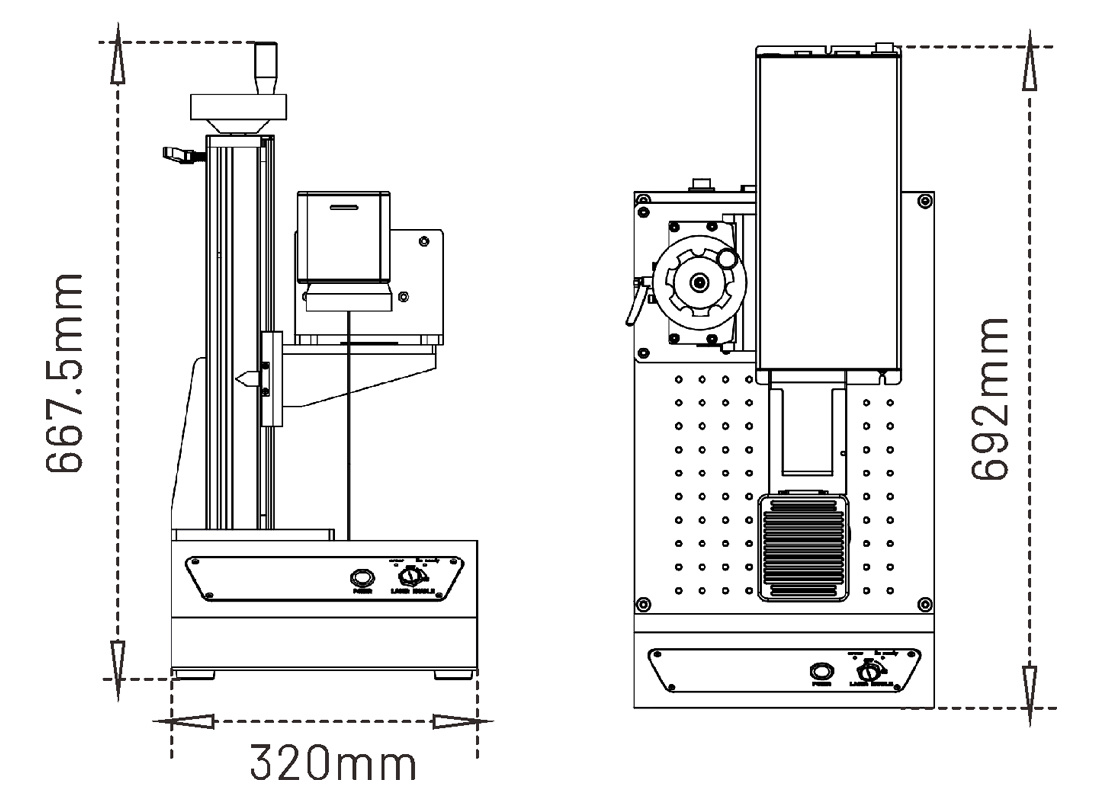

| Volume | 692 mm × 320 mm × 667.5 mm |
| Weight | 23KG |
