TOOL-LW-03-07NUV Portable Integrated Ultraviolet Laser TOOL-LW-07NUV
Using 355nm ultraviolet cold-light-source technology, this product offers selectable 3W-7W power, miniature water cooling and a precision galvanometer module at just 17kg. Static/dynamic processing enables damage-free marking of brittle or ultrathin glass, ceramics and polymer films for workshops, laboratories and mobile outdoor work.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 355nm |
| Output Average Power [@40KHz] | >7W@40KHz |
| Max Single-pulse energy [@30KHz] | 0.23mJ@30KHz |
| Pulse Repetition Rate | 30-150KHz |
| Pulse width [@40KHz] | <15ns@40KHz |
| Average Power stability [over 12 hours] | <3% over 12 hours |
| Spatial Mode | TEM00 (M²< 1.2) |
| Spot roundness | > 90% |
| Output port Spot size | 3mm |
| Beam Divergence Angle | <0.2mRad |
| Beam Pointing Stability | <20µrad/ºC |
| Degree of polarization [Horizontal] | > 100:1 Horizontal |
| Warm-Up Time | <30mins |
| Operating environment Temperature | 15℃-30℃ |
| Operating environment Humidity [non-condensing] | 20 -80 non-condensing |
| Cooling method | Water |

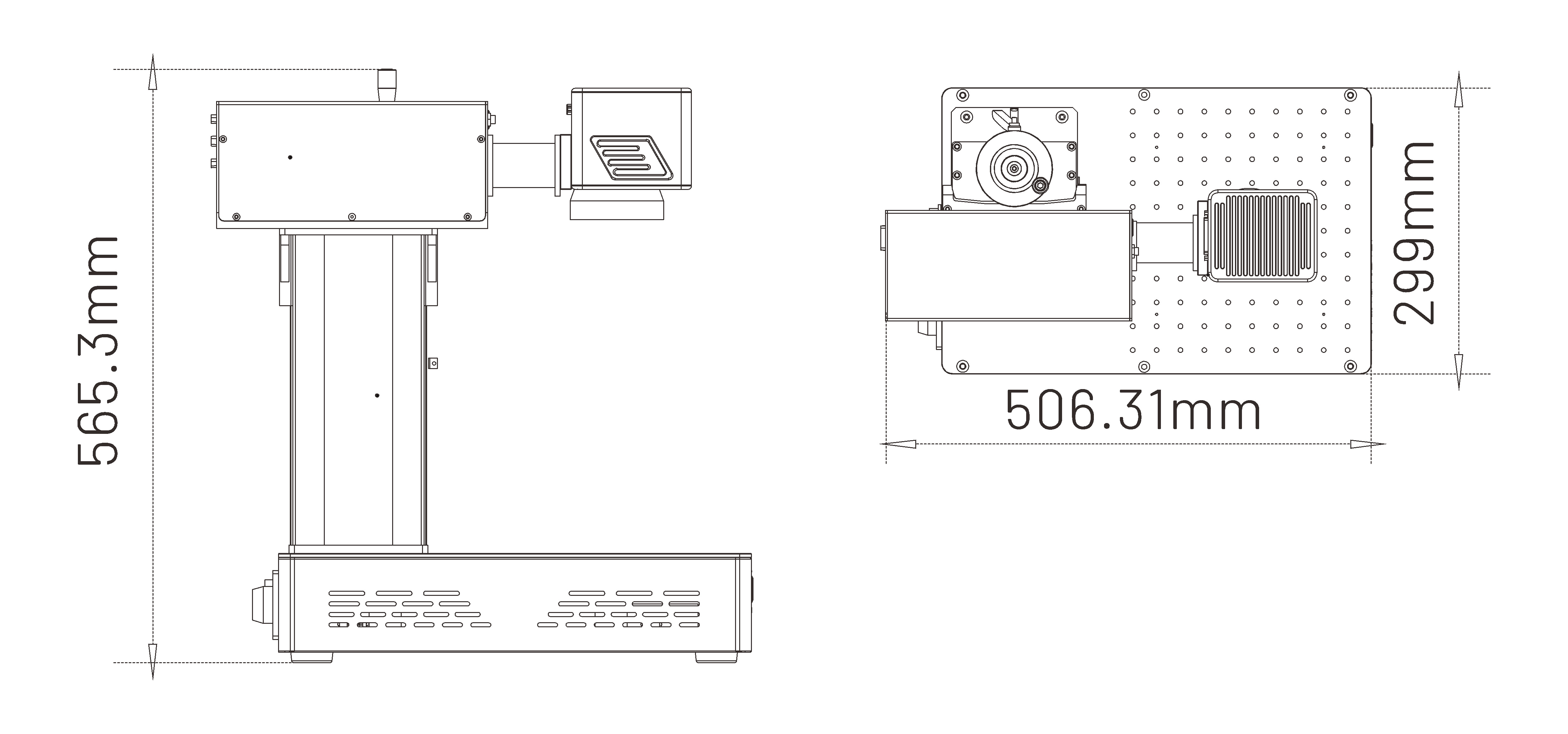

| Volume | 506.31 mm × 299 mm × 565.3 mm |
| Weight | 17KG |
