HANDHELD Second-Generation Ultraviolet Laser Marking Module HANDHELD1-A-05NUV-LMM
The handheld air-cooled nanosecond UV laser-marking module integrates a marking card, high-speed galvanometers and dual-red-light positioning for micrometer-level precision. Air cooling and a small body provide stable output and simplify integration. A dedicated handle enables flexible mobile printing and creative applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength | 355nm |
| Output Average Power [@40KHz] | >5W@40KHz |
| Max Single-pulse energy [@40KHz] | 0.125mJ@40KHz |
| Pulse Repetition Rate | 30-150KHz |
| Pulse width [@40KHz] | <15ns@40KHz |
| Average Power stability [over 12 hours] | <3% over 12 hours |
| Spatial Mode | TEM00 (M²< 1.2) |
| Spot roundness | > 90% |
| Output Aperture Spot Size (10 Times Beam Expansion) [10 Times Beam Expansion; ±0.5mm] | 3.5±0.5mm |
| Beam Divergence Angle | <0.2mRad |
| Beam Pointing Stability | <20µrad/ºC |
| Degree of polarization [Horizontal] | > 100:1 Horizontal |
| Warm-Up Time | <30mins |
| Operating environment Temperature | 15℃-35℃ |
| Operating environment Humidity [non-condensing] | 20 -80%non-condensing |
| Cooling method | Air |

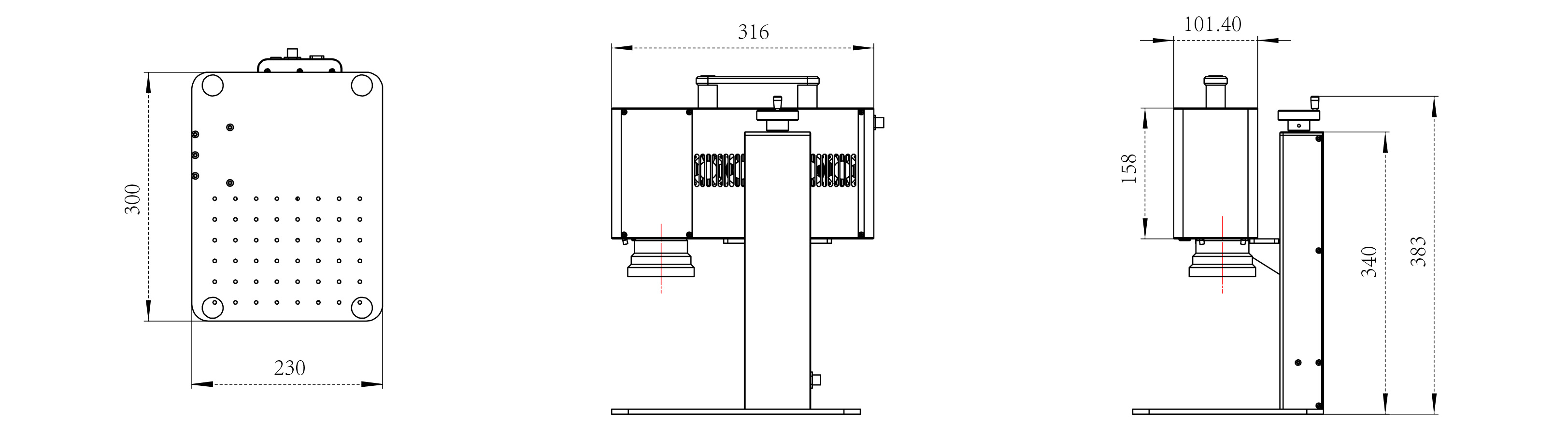

| Volume | 316 mm × 195.5 mm × 101.4 mm |
| Weight | 4.4KG |
Key Features
