Water-Cooled Screw Heat-Recovery Unit (Single Compressor) KDSR-030S

Water-Cooled Screw Heat-Recovery Unit (Single Compressor) KDSR-030S

Supplier
Szkaydeli
Part Number
KDSR-030S
Category
Semiconductor Manufacturing Equipment
Origin
China

KDSR series heat-recovery chillers combine two or three functions: cooling, space heating and domestic hot water production. Features: ① Multiple functions in one unit. In summer, cooling-only units can recover condenser heat that would otherwise be wasted while providing cooling, or can provide cooling alone. Heat-pump units provide cooling, heating with heat recovery, and domestic hot water. ② Adding a heat-recovery exchanger effectively increases heat-exchange area and improves heat transfer, reducing energy consumption. The overall coefficient of performance reaches 3.5~3.9 for air-cooled heat-recovery units and 5.6~6.3 for water-cooled heat-recovery units. ③ Two compressor choices. RLS/RLSF/RLSRF series heat-recovery chillers use advanced imported semi-hermetic twin-screw compressors with a 5:6 tooth ratio. Compressor unloading capacity controls allow stepped or stepless capacity adjustment. RLSQ/RLSQF/RLSQRF series heat-recovery chillers use imported hermetic scroll refrigeration compressors, offering high efficiency, low noise, low vibration, reliable operation and long service life. ④ The microcomputer control system provides comprehensive safety protection, communication, fault diagnosis and automatic adaptation. ⑤ Compact construction, a small footprint and simple piping require only an external water system, making installation and maintenance easy.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

KDSR series heat-recovery chillers combine two or three functions: cooling, space heating and domestic hot water production. Features: ① Multiple functions in one unit. In summer, cooling-only units can recover condenser heat that would otherwise be wasted while providing cooling, or can provide cooling alone. Heat-pump units provide cooling, heating with heat recovery, and domestic hot water. ② Adding a heat-recovery exchanger effectively increases heat-exchange area and improves heat transfer, reducing energy consumption. The overall coefficient of performance reaches 3.5~3.9 for air-cooled heat-recovery units and 5.6~6.3 for water-cooled heat-recovery units. ③ Two compressor choices. RLS/RLSF/RLSRF series heat-recovery chillers use advanced imported semi-hermetic twin-screw compressors with a 5:6 tooth ratio. Compressor unloading capacity controls allow stepped or stepless capacity adjustment. RLSQ/RLSQF/RLSQRF series heat-recovery chillers use imported hermetic scroll refrigeration compressors, offering high efficiency, low noise, low vibration, reliable operation and long service life. ④ The microcomputer control system provides comprehensive safety protection, communication, fault diagnosis and automatic adaptation. ⑤ Compact construction, a small footprint and simple piping require only an external water system, making installation and maintenance easy.

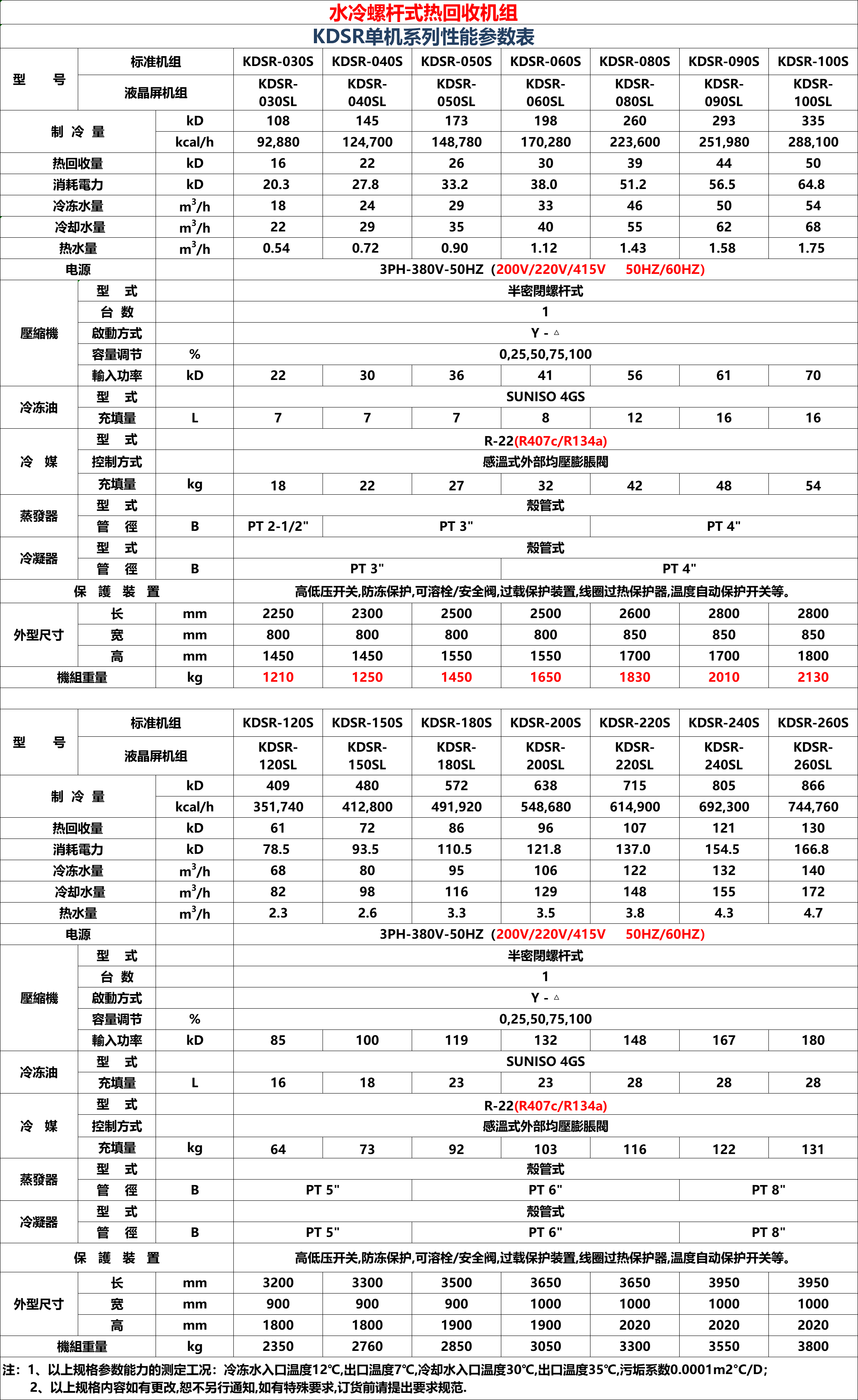

Specifications

ParameterValue
Cooling capacity [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]108 kD
Cooling capacity [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]92,880 kcal/h
Heat Recovery [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]16 kD
Power Consumption [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]20.3 kD
Chilled-Water Volume [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]18 m³/h
Cooling water flow rate [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]22 m³/h
Hot-Water Volume [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]0.54 m³/h
Power supply [Standard unit]3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ)
Compressor - Type [Standard unit]Semi-hermetic screw type
Compressor-Quantity [Standard unit]1
Compressor-Starting Method [Standard unit]Y - △
Compressor-Capacity Control [Standard unit]0,25,50,75,100 %
Compressor - Input Power [Standard Unit ; Measurement Conditions : Chilled Water Inlet Temperature 12°C, Outlet Temperature 7°C; Cooling Water Inlet Temperature 30°C, Outlet Temperature 35°C; Fouling Factor 0.0001m²°C/D]22 kD
Refrigeration Oil - Type [Standard unit]SUNISO 4GS
Refrigeration Oil - Fill Quantity [Standard unit]7 L
Refrigerant - Type [Standard unit]R-22(R407c/R134a)
Refrigerant - Control Method [Standard unit]Thermostatic expansion valve with external equalization
Refrigerant - Fill Quantity [Standard unit]18 kg
Evaporator-Type [Standard unit]Shell-and-tube type
Evaporator - Tube diameter [Standard unit]PT 2-1/2"
Condenser-Type [Standard unit]Shell-and-tube type
Condenser - Tube diameter [Standard unit]PT 3"
Protective device [Standard unit]High-/low-pressure switch, freeze protection, fusible plug/safety valve, overload protection, coil overheat protector, automatic temperature protection switch, etc.
External Dimensions - Length [Standard unit]2250 mm
External Dimensions - Width [Standard unit]800 mm
External Dimensions - High [Standard unit]1450 mm
Unit Weight [Standard unit]1210 kg
