Desktop Exposure Optical Engine LTP-sUHD-Px
The desktop exposure optical engine uses UV LEDs or lasers for illumination and a DLP chip for image modulation. Precision imaging optics provide large-format, high-precision, low-distortion exposure; multiple units can be tiled for larger exposure areas. It is suitable for 3D printing with resin, ceramics and elastomers. Key features: TEC air or water cooling, compact construction, easy maintenance and service life exceeding 10000 hours.
Save to Favorites
Overview

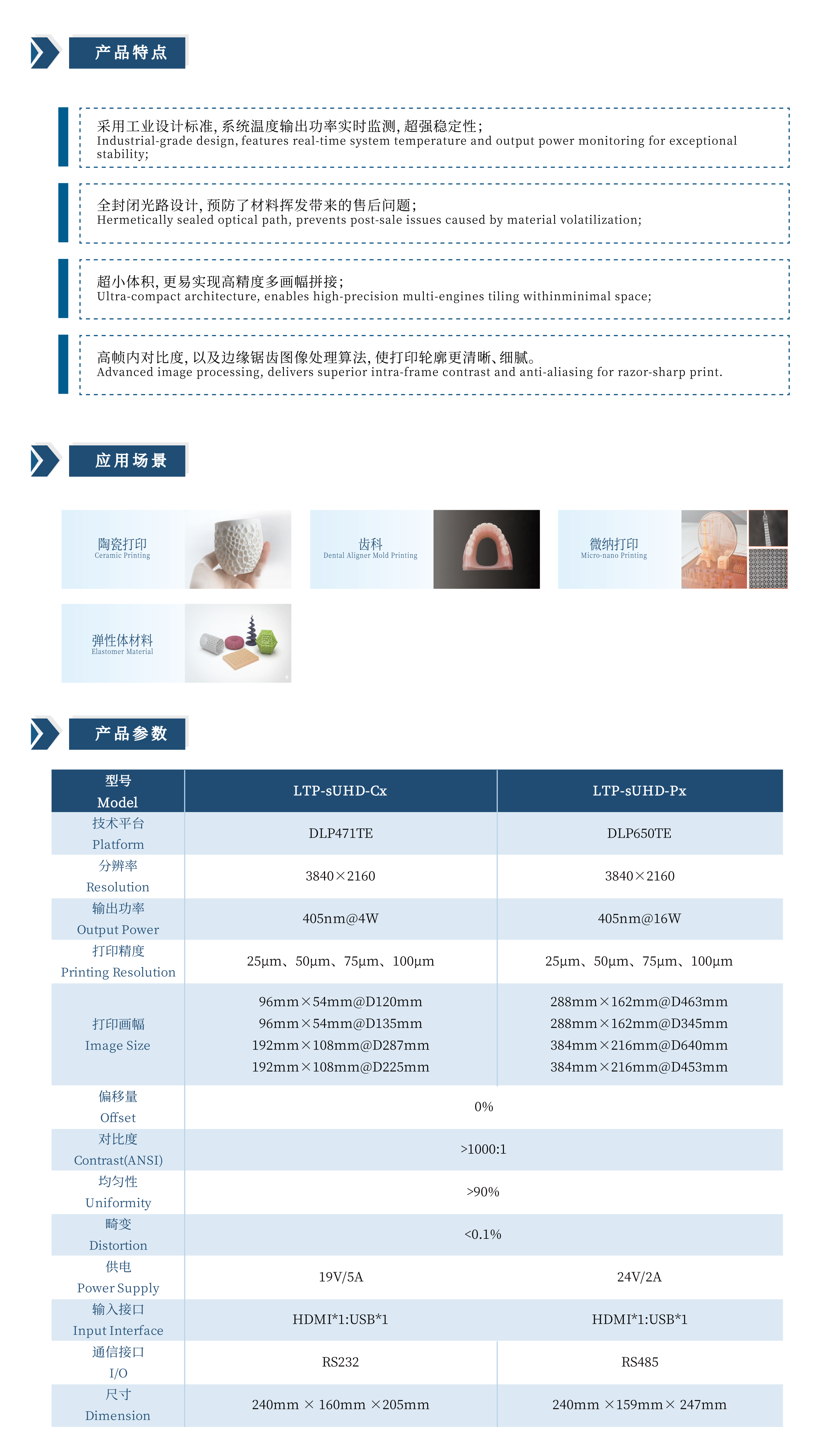

Specifications
| Parameter | Value |
|---|---|
| Technology Platform | DLP650TE |
| Resolution | 3840×2160 |
| Output Power [@16W] | 405nm@16W |
| Printing Accuracy | 25μm、50μm、75μm、100μm |
| Print Format | 288mm×162mm@D463mm；288mm×162mm@D345mm；384mm×216mm@D640mm；384mm×216mm@D453mm |
| Contrast [ANSI] | >1000:1 |
| Uniformity | >90% |
| Distortion | <0.1% |
| Power supply | 24V/2A |
| Input Interface | HDMI*1:USB*1 |
| Communication Interface | RS485 |
| Dimensions | 240mm×159mm×247mm |
Applications
Key Features
Datasheet
Please provide your email to download the datasheet.
