Multifunction Laser Module
Center wavelength: 785-1920nm (optional)
Save to Favorites
Overview

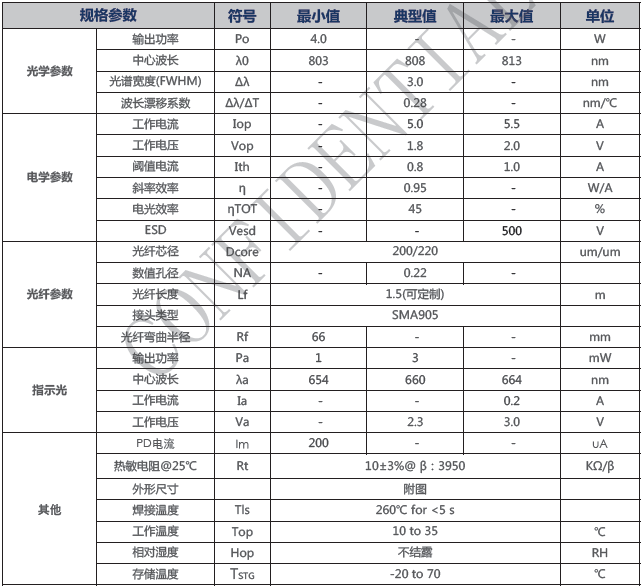

Specifications
| Parameter | Value |
|---|---|
| Optical Parameters - Output Power Po | Min ：4.0 W |
| Optical Parameters - Center Wavelength λ0 | Min ：803 nm； Typical ：808 nm； Max ：813 nm |
| Optical Parameters - Spectral Width (FWHM) Δλ | Typical ：3.0 nm |
| Optical Parameters - Wavelength Drift Coefficient Δλ/ΔT | Typical ：0.28 nm/°C |
| Electrical Specifications - Operating Current Iop | Typical ：5.0 A； Max ：5.5 A |
| Electrical Specifications - Operating Voltage Vop | Typical ：1.8 V； Max ：2.0 V |
| Electrical Specifications - Threshold Current Ith | Typical ：0.8 A； Max ：1.0 A |
| Electrical Specifications - Slope Efficiency η | Typical ：0.95 W/A |
| Electrical Specifications - Electrical-to-Optical Efficiency ηTOT | Typical ：45 % |
| Electrical Specifications - ESD Vesd | Max ：500 V |
| Fiber parameters - Numerical aperture NA | Typical ：0.22 |
| Fiber Parameters - Fiber Bend Radius Rf | Min ：66 mm |
| Aiming light - Output Power Pa | Min ：1 mW； Typical ：3 mW |
| Aiming light - Center wavelength λa | Min ：654 nm； Typical ：660 nm； Max ：664 nm |
| Aiming light - Operating current Ia | Max ：0.2 A |
| Aiming light - Operating voltage Va | Typical ：2.3 V； Max ：3.0 V |
| PD Current Im | Min ：200 uA |
| Fiber parameters - Fiber core diameter Dcore | 200/220 um/um |
| Fiber parameters - Fiber length Lf [Customizable] | 1.5(customizable) |
| Fiber parameters - Connector Type | SMA905 |
| Thermistor Rt [25°C] | 10±3%@β：3950 |
| Welding Temperature Tls [<5 s] | 260°C for <5 s |
| Operating temperature Top | 10 to 35 °C |
| Relative Humidity Hop | Non-condensing |
| Storage temperature TSTG | -20 to 70 °C |
