1030 nm High-Power Hundred-Femtosecond Fiber Laser
This hundred-femtosecond-class fiber laser increases power through cascaded fiber amplification, broadens the spectrum using fiber nonlinearity, and removes chirp with a free-space grating. It delivers high-power 1030 nm femtosecond pulses with pulse widths <150 fs and average power up to 10 W. Built-in automatic routines provide self-starting operation and system protection. Easy operation and maintenance support stable 7x24 operation.
Save to Favorites
Overview

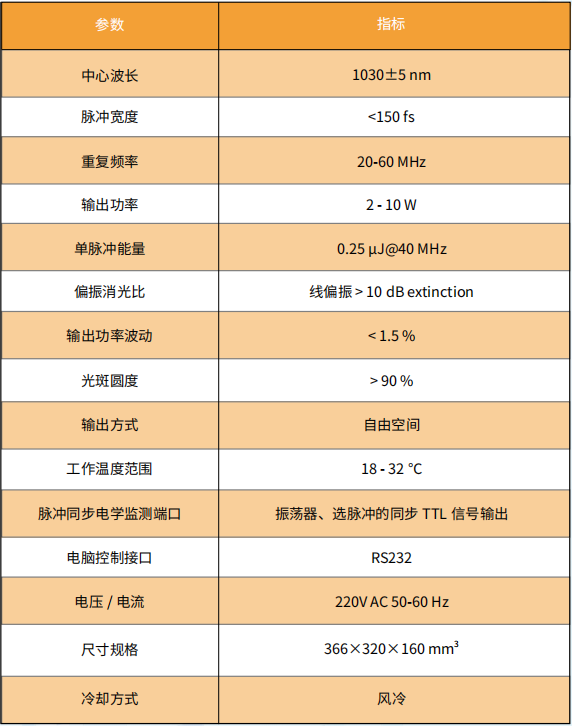

Specifications
| Parameter | Value |
|---|---|
| Center wavelength | 1030±5 nm |
| Pulse width | <150 fs |
| Repetition rate | 20-60 MHz |
| Output Power | 2-10 W |
| Single-pulse energy [40 MHz；@40 MHz] | 0.25 μJ@40 MHz |
| Polarization Extinction ratio [Linear polarization] | Linear polarization >10 dB extinction |
| Output Power fluctuation | <1.5% |
| Spot roundness | >90% |
| Output Method | Free Space |
| Operating temperature Range | 18-32°C |
| Electrical Pulse-Synchronization Monitoring Port | Synchronized TTL signal output for oscillator and pulse picker |
| Computer Control Interface | RS232 |
| Voltage / Current | 220V AC 50-60Hz |
| Dimensions Specifications | 366×320×160 mm³ |
| Cooling method | Air cooling |
