1030 nm High-Power Sub-Hundred-Femtosecond Fiber Laser
This femtosecond fiber laser uses self-similar fiber amplification and an integrated optomechanical/electrical design. Compact and broadly applicable, it provides high-power 1030 nm pulses with widths <60 fs and average power up to 20 W. Built-in automation supports self-starting, system protection, simple operation and maintenance, and stable 7x24 operation. It breaks solid-state lasers' dominance below 100fs and offers end users a new option.
Save to Favorites
Overview

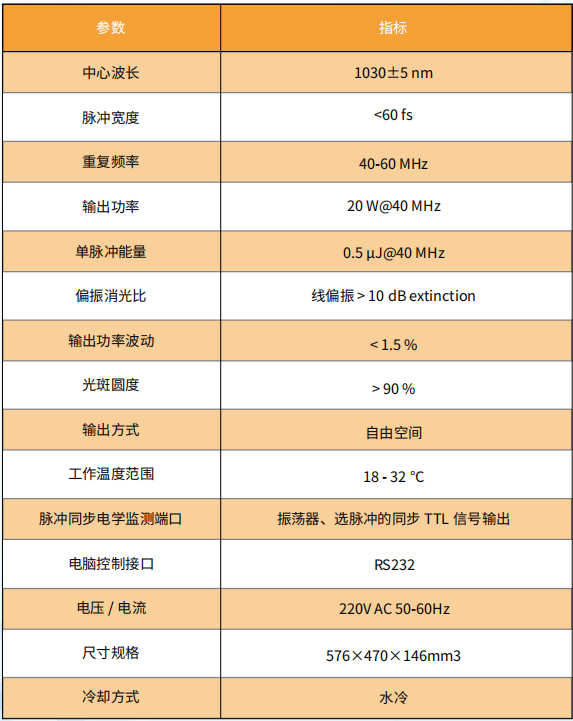

Specifications
| Parameter | Value |
|---|---|
| Center wavelength | 1030±5 nm |
| Pulse width | <60 fs |
| Repetition rate | 40-60 MHz |
| Output Power [40 MHz；@40 MHz] | 20 W@40 MHz |
| Single-pulse energy [40 MHz；@40 MHz] | 0.5 μJ@40 MHz |
| Polarization Extinction ratio [Linear polarization] | Linear polarization >10 dB extinction |
| Output Power fluctuation | <1.5% |
| Spot roundness | >90% |
| Output Method | Free Space |
| Operating temperature Range | 18-32°C |
| Electrical Pulse-Synchronization Monitoring Port | Synchronized TTL signal output for oscillator and pulse picker |
| Computer Control Interface | RS232 |
| Voltage / Current | 220V AC 50-60Hz |
| Dimensions Specifications | 576×470×146mm3 |
| Cooling method | Water cooling |
