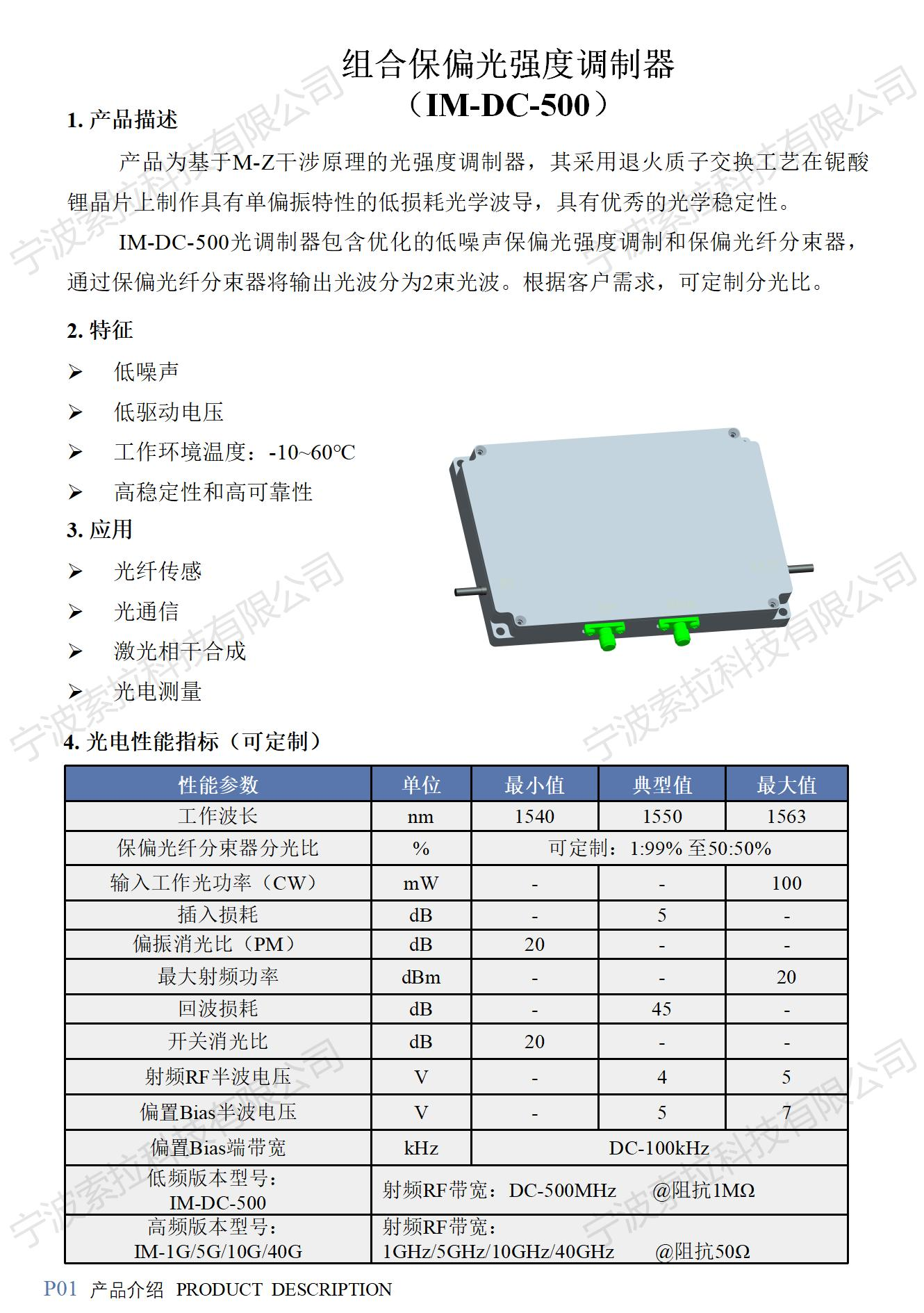

Combined Polarization-Maintaining Optical Intensity Modulator IM-DC-500
This optical intensity modulator uses M-Z interference. Annealed proton exchange forms low-loss, single-polarization waveguides on a lithium niobate wafer for excellent optical stability. The IM-DC-500 combines optimized low-noise PM intensity modulation with a PM fiber splitter that divides the output into 2 beams. The splitting ratio can be customized.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating wavelength [Customizable] | Min ：1540 nm； Typical ：1550 nm； Max ：1563 nm |
| Input Operating Optical power [customizable; CW] | Max ：100 mW |
| Insertion loss [Customizable] | Typical ：5 dB |
| Polarization Extinction ratio [customizable; PM] | Min ：20 dB |
| Max RF power [Customizable] | Max ：20 dBm |
| Return loss [Customizable] | Typical ：45 dB |
| Switching Extinction Ratio [Customizable] | Min ：20 dB |
| Radio Frequency RF Half-Wave Voltage [Customizable] | Typical ：4 V； Max ：5 V |
| Bias Bias Half-wave voltage [Customizable] | Typical ：5 V； Max ：7 V |
| Polarization-Maintaining Fiber Beamsplitter Split Ratio [Customizable] | 1:99% to 50:50% |
| Bias Port Bandwidth [Customizable] | DC-100kHz |
| Radio Frequency RF Bandwidth [Impedance 1MΩ; Low-Frequency Version] | DC-500MHz |
| Output Pigtail type [Modular] | PM1550；FC/APC |
| Modulation Interface Type [Modular] | SMA |
| Max Input Optical power [Modular] | 100 mW |
| Max Input Voltage [Modular] | ±15V |
