UltraField-Flat-Field Spectrometer
Full-band spectroscopy covers soft X-rays (SXR), extreme ultraviolet (EUV) and vacuum ultraviolet (VUV). A long-focal-length variable-line-spacing concave grating provides high-resolution flat-field spectroscopy across the full band, with online detection capability. Compatible sources include laser-produced plasma (LPP), discharge-produced plasma (DPP), high harmonics (HHG), free-electron lasers (FEL) and synchrotron radiation. It provides precise, efficient, multifunctional full-band analysis for advanced research and manufacturing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Exit Focal Lengthh | 235 mm |
| Focal Plane Width [Customizable on Request] | >22 mm(Customizable on Request) |
| Siltwidth [Continuous adjustable] | 0 - 0.3 mm Continuous adjustable |
| Grating Size | 50 mm x 30 mm |
| Vacuum Compatible | Best afford 10⁻⁴ Pa |
| Number ofSwitchable Gratings [Expandable to a Maximum of 6 Boards] | 3 (Expandable to a Maximum of 6 Boards) |
| Wavelength Range [Customizable on Request] | 1-140 nm / 5-350 nm(Customizable on Request) |
| System Dimensions System Size | ≤660 mm x 320 mm x 400 mm |
Key Features
Datasheet
Supplier Information
Related Products
-
FP-Cavity Scanning Fabry-Pérot Interferometer-DP-SFPIX Spectrometer and FP-Cavity Driver Module
Spectrometers
Dospectrum
Overall dimensions: 200mmX200mmX100mm Voltage / Power consumption: DC15V/W High-Voltage Output Range: 1~60V
-

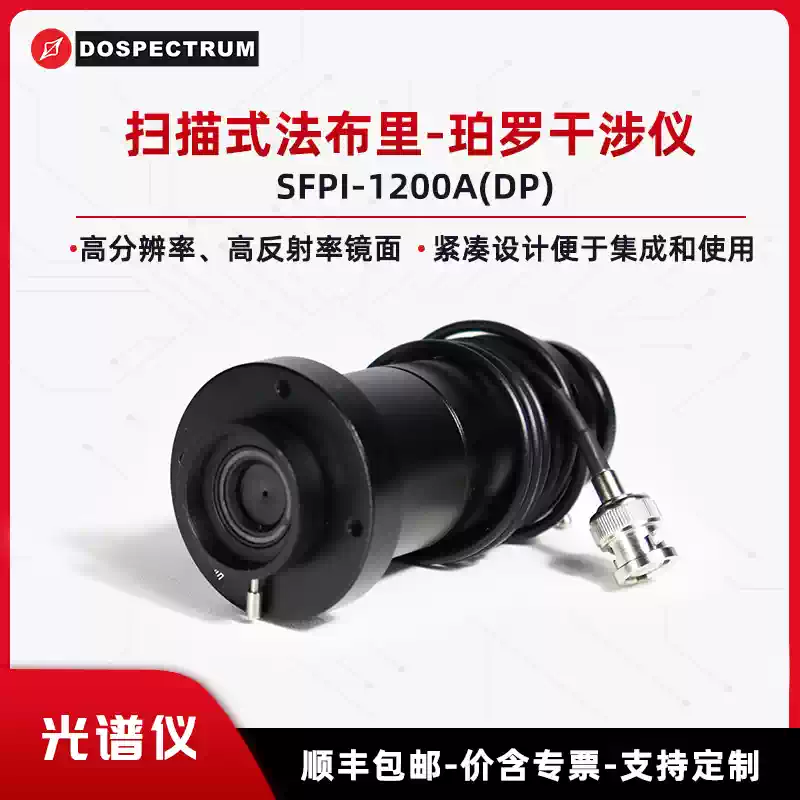

FP-Cavity Scanning Fabry-Pérot Interferometer-SFPI-1200A(DP) Spectrometer
Spectrometers
Dospectrum
Wavelength Range: 1275~2000nm Free Spectral Range: 1.5GHz Cavity Finesse [Typical 250]: >200( Typical 250)
-
FP-Cavity Scanning Fabry-Pérot Interferometer-SFPI-800A(DP) Spectrometer
Spectrometers
Dospectrum
Wavelength Range: 875~1275nm Free Spectral Range: 1.5GHz Cavity Finesse [Typical 250]: >200( Typical 250)
-

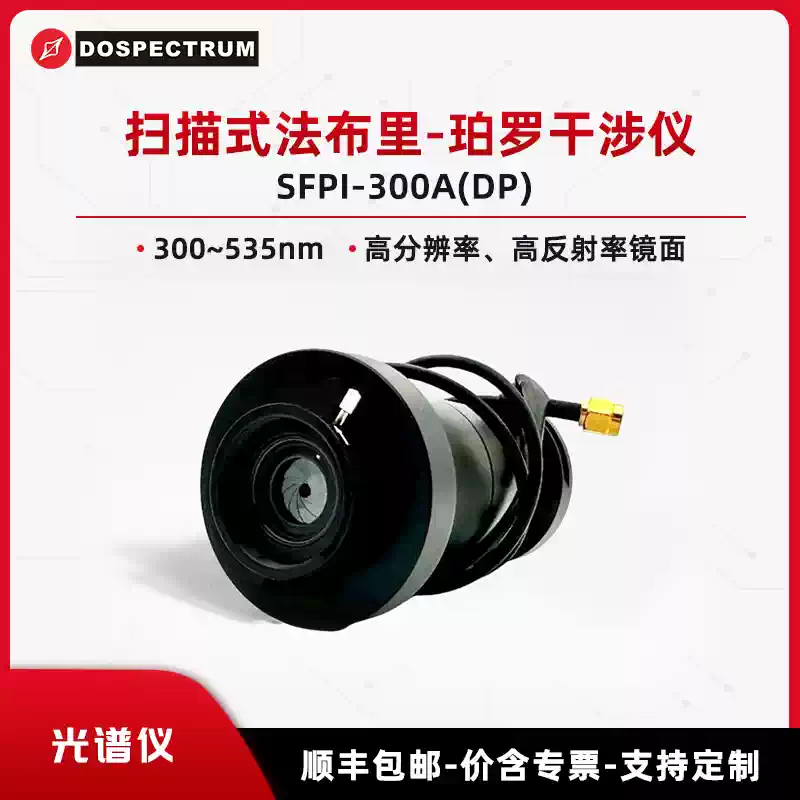

FP-Cavity Scanning Fabry-Pérot Interferometer-SFPI-300A(DP) Spectrometer
Spectrometers
Dospectrum
Wavelength Range: 300~535nm Free Spectral Range: 1.5GHz Cavity Finesse [Typical 250]: >200( Typical 250)
-

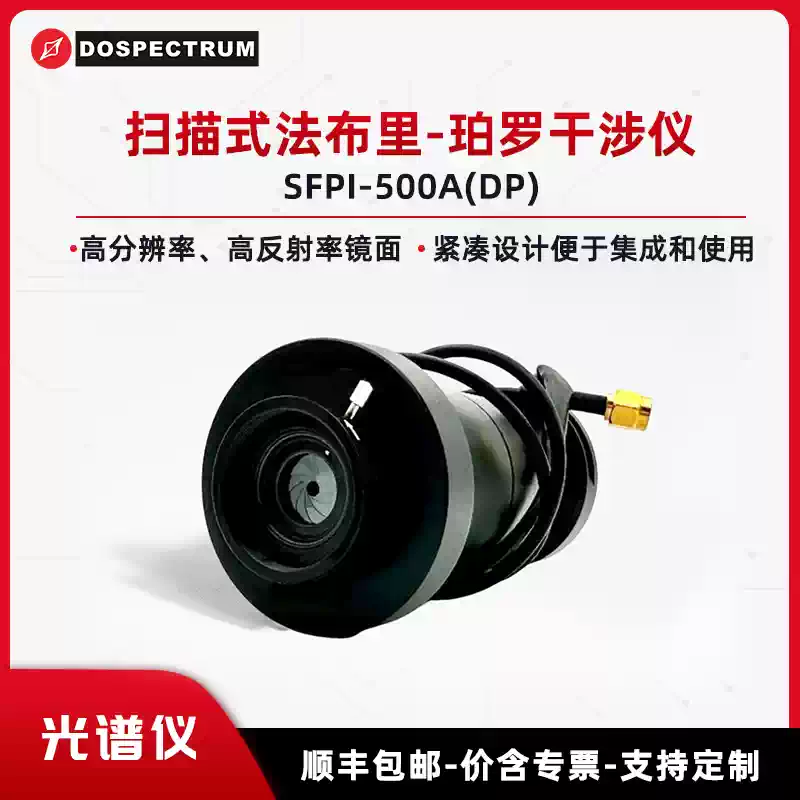

FP-Cavity Scanning Fabry-Pérot Interferometer-SFPI-500A(DP) Spectrometer
