ABP XY planar air-bearing stage (ABP-500)

Supplier

Jitri-uptech

Part Number

ABP-500

Specifications

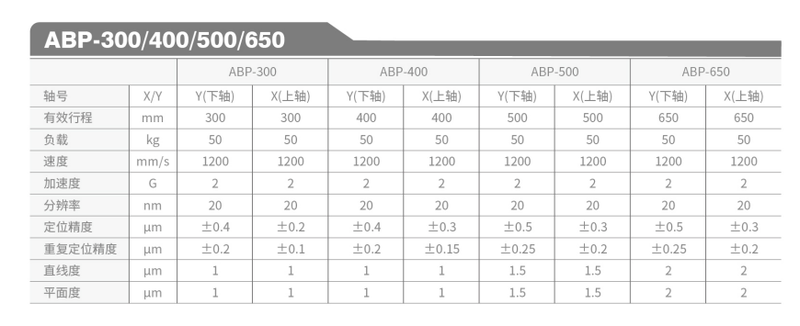

Parameter	Value
Effective Travel	500 mm
Load	50 kg
Speed	1200 mm/s
Acceleration	2 G
Resolution	20 nm
Positioning Accuracy [Y (Lower Axis)]	±0.5 μm
Positioning Accuracy [X (Upper Axis)]	±0.3 μm
Positioning Repeatability [Y (Lower Axis)]	±0.25 μm
Positioning Repeatability [X (Upper Axis)]	±0.2 μm
Straightness	1.5 μm
Flatness	1.5 μm

Key Features

Air-bearing stage support, completely frictionless, wear-free, oil-free; planar air-bearing structure, low center of gravity, high rigidity; sub-micron positioning and repeat positioning accuracy; maximum speed 1200mm/s, maximum acceleration up to 2G; straightness and flatness up to 1μm; fully air-bearing, magnetic or vacuum preload
