SLED
SLED mimi-butt 835nm | High-reliability industrial-grade superluminescent light source; FC/APC fiber output | Broad spectrum | Military environmental adaptability. Core features: Center wavelength: 835±10nm; Spectral width >12nm (FWHM); Output power 4.5±0.5mw@150mA; Butterfly package; FC/APC connector, 780HP polarization-maintaining/single-mode fiber; Complies with MIL-STD military environmental requirements
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 835 ± 10 nm |
| Spectral Width (FWHM) | > 12 nm |
| Output Power [150 mA] | 4.5 ± 0.5 mW @ 150 mA |
| Maximum drive current | ≥ 200 mA |
| Forward Voltage | ≤ 2.5 V |
| Fiber Type | 780-HP Single-mode Fiber |
| Fiber connector | FC/APC |

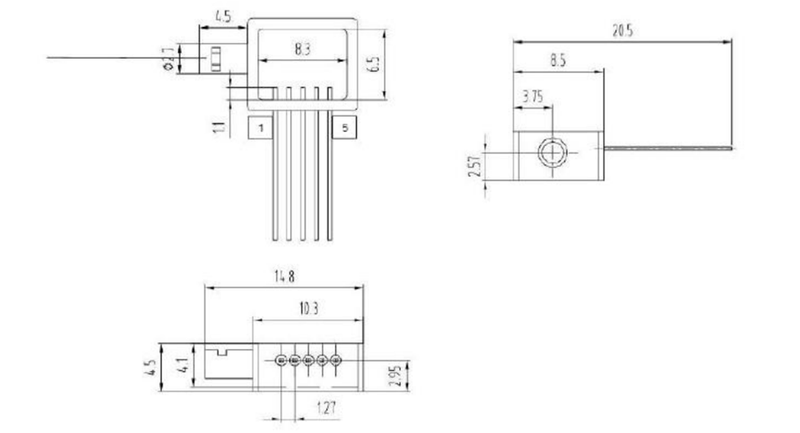

| Form Factor | MINI-BUTTREFLY 5-pin; 1-Thermistor; 2-Thermistor; 3-SLD Anode (+); 4-SLD Cathode (-); 5-Case / Ground |
| Operating Temperature | -40 ℃ ~ +74 ℃ |
| Storage Temperature | -51 ℃ ~ +85 ℃ |
| Lifetime | ≥ 3,000,000 triggers (5 Hz) |
| Laser Safety Class | Class 1M eye safety |
