IRt/c.20A Base Model

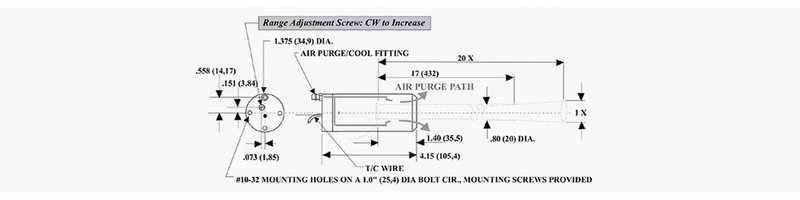

This models allow for the user to calibrate the IRt/c’s (IR thermocouple) to match a thermocouple in whatever temperature range they desire. The range adjustment screw is adjusted to calibrate for temperature range of interest and material properties (emissivity). Models for non-metals (HiE) and metals (LoE) are available.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Sensor Range | 260 to 1650 °C (500 to 3000 °F) or 540 to 1930 °C (1000 to 3500 °F) |
| Field of View | approximately 3 ° (20:1) |
| Minimum Spot Size | -- No Aperture: 20 mm (0.8”) at <400 mm (16”) -- ½” Aperture: 13 mm (0.5”) at <230 mm (9”) -- ¼” Aperture: 6 mm (0.25”) at <90 mm (3.5”) |
Key Features
Datasheet
Please provide your email to download the datasheet.
Invalid email format. Please try again.
Supplier Information
