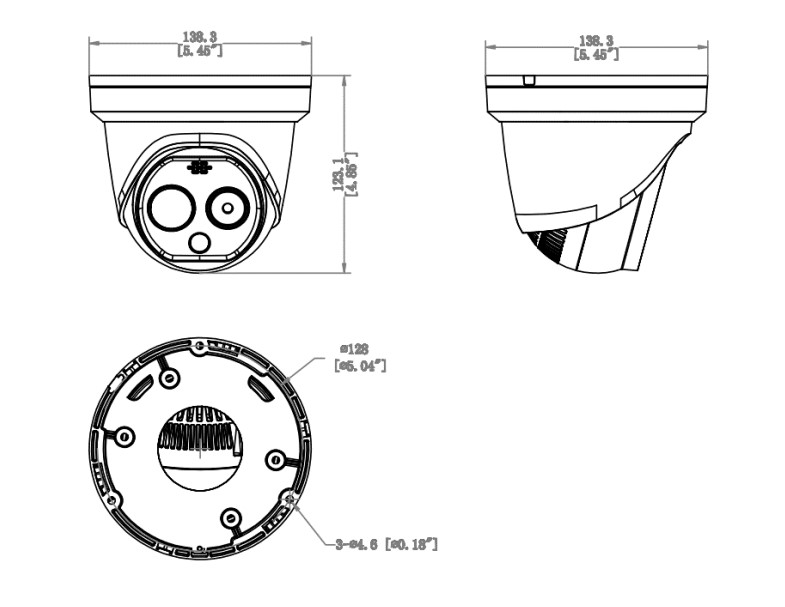

Human body temperature measurement binocular dome

Resolution: 1280×1024 Noise Equivalent Temperature Difference (NETD) [25°C,F#=1.0]: < 40mK(@25°C,F#=1.0) Pixel size: 12μm

An uncooled infrared thermal-imaging core with high 1280×1024 resolution and a network interface for easy integration.

Thermal imaging lens focal length: 150mm Temperature Measurement Range: -30°C-300 °C/200°C-800 °C Thermal imaging resolution: 1280×1024

The 1280 long-range temperature-measurement thermal camera extends beyond the conventional 50–100m measurement distance of thermal cameras to reach 300m, with accuracy stated as ±2℃/±2%℃ of reading. It suits long-distance temperature monitoring in molten-salt power generation and flare-stack combustion monitoring.

Thermal imaging lens focal length: 35mm Resolution: 1280×1024 Noise Equivalent Temperature Difference (NETD) [25 °C (77 °F) ，F# = 1.0]: ≤0.02 °C (20 mK) @ 25 °C (77 °F) ，F# = 1.0

The flagship handheld temperature-measurement thermal camera has a 1280×1024 megapixel-class infrared detector and ISR image super-resolution technology for clearer thermal images and higher measurement accuracy.

Resolution: 640×512 Noise Equivalent Temperature Difference (NETD) [25 °C (77 °F) ambient temperature, F# = 1.0]: < 0.03 °C (30 mK) @ 25 °C (77 °F) ambient temperature, F# = 1.0 Temperature Measurement Accuracy [whichever is greater]: ±2° or ±2%, Whichever Is Greater

The ultra-high-temperature flagship thermal camera offers 640×512 resolution and advanced image-processing algorithms for clearer images.

Resolution: 384 × 288 Noise Equivalent Temperature Difference (NETD) [25℃，F#=1.0]: ＜30mK（@25℃，F#=1.0） Temperature Measurement Accuracy [whichever is greater]: ±2℃ or ±2%, Whichever Is Greater

The HIKMICRO HM-TP2X-SQ/7W handheld infrared thermal camera accurately measures hot targets, helping on-site personnel quickly troubleshoot, make decisions and maintain safety.
