Yttrium aluminum garnet

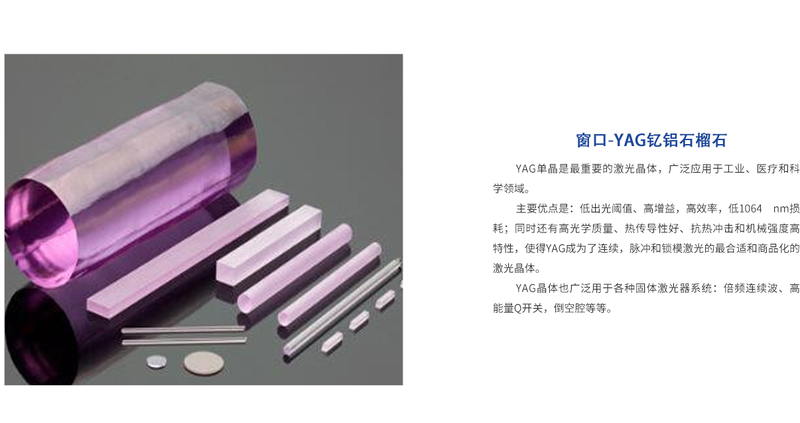

Single-crystal YAG is a leading laser crystal widely used in industrial, medical and scientific applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

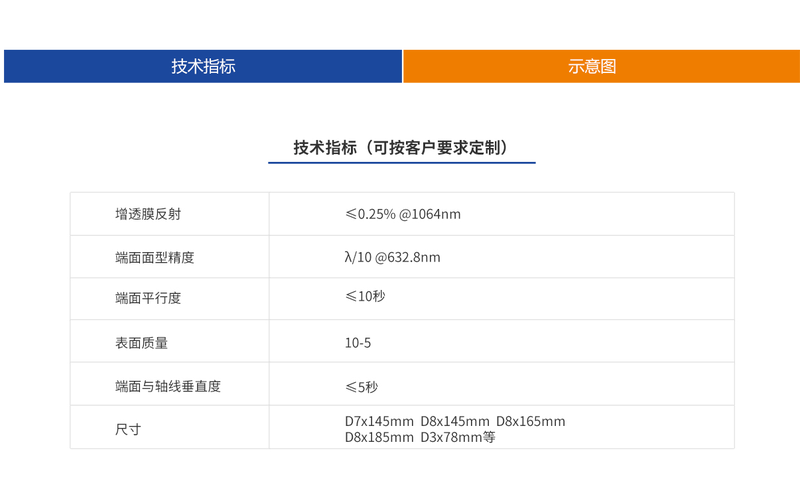

| Antireflection-coating Reflectance [1064nm] | ≤0.25% @1064nm |
| End-face Surface Figure Accuracy [632.8nm] | λ/10 @632.8nm |
| End-face Parallelism | ≤10 arcsec |
| Surface Quality | 10-5 |
| End-face Perpendicularity to the Axis | ≤5 arcsec |
| Dimensions | D7x145mm, D8x145mm, D8x165mm, D8x185mm, D3x78mm, etc. |

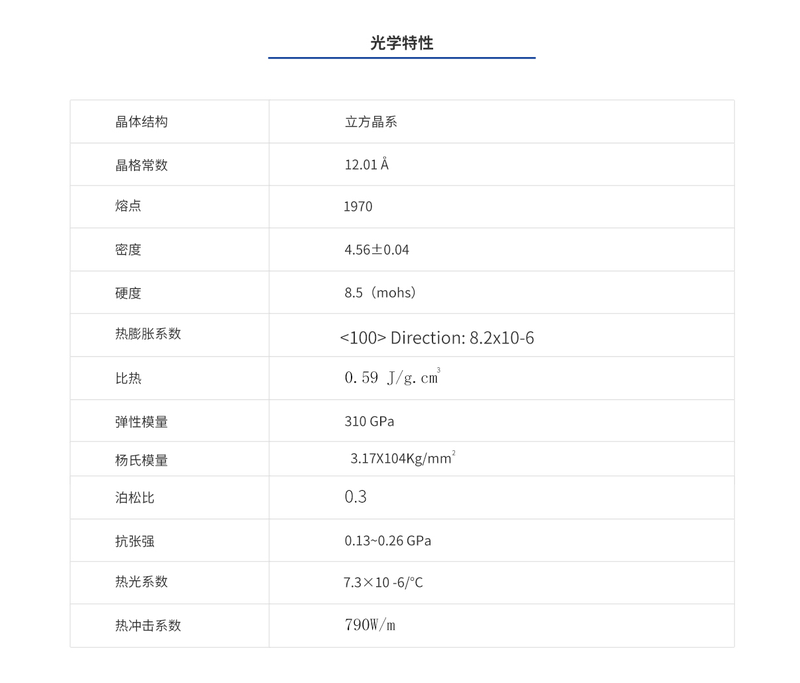

| Crystal Structure | Cubic crystal system |
| Lattice Constant | 12.01 Å |
| Melting Point | 1970 |
| Density | 4.56±0.04 |
| Hardness | 8.5（mohs） |
| Thermal Expansion Coefficient [<100> Direction] | <100> Direction: 8.2x10-6 |
| Specific Heat | 0.59 J/g.cm³ |
| Elastic Modulus | 310 GPa |
| Young's Modulus | 3.17X104Kg/mm² |
| Poisson's Ratio | 0.3 |
| Tensile Strength | 0.13~0.26 GPa |
| Thermo-optic Coefficient | 7.3×10-6/°C |
| Thermal Shock Coefficient | 790W/m |
Applications
Key Features
Datasheet
