Overview

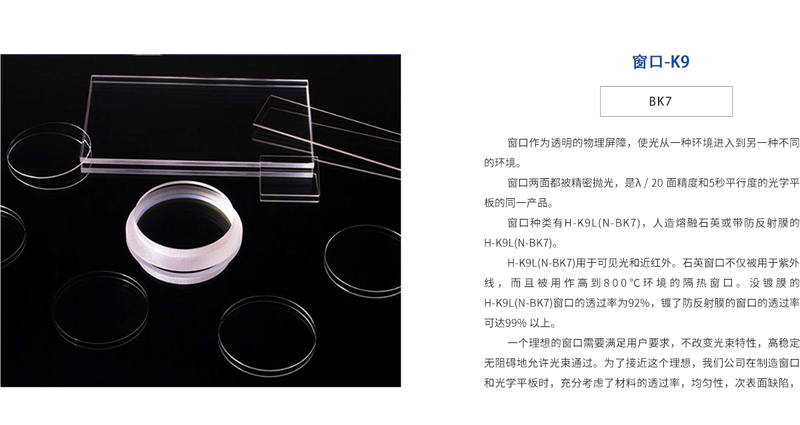

An optical window is a transparent physical barrier that transmits light between different environments. Both surfaces are precision-polished, equivalent to an optical flat with λ/20 surface accuracy and 5-arcsecond parallelism. Available materials are H-K9L (N-BK7), synthetic fused silica and antireflection-coated H-K9L (N-BK7). H-K9L (N-BK7) is used in the visible and near-infrared. Quartz windows are used for ultraviolet transmission and as heat-insulating windows in environments up to 800°C. Uncoated H-K9L (N-BK7) transmits 92%, while antireflection-coated windows can exceed 99%. An ideal window meets the user's requirements, allows stable, unobstructed transmission and does not change beam characteristics.

Specifications

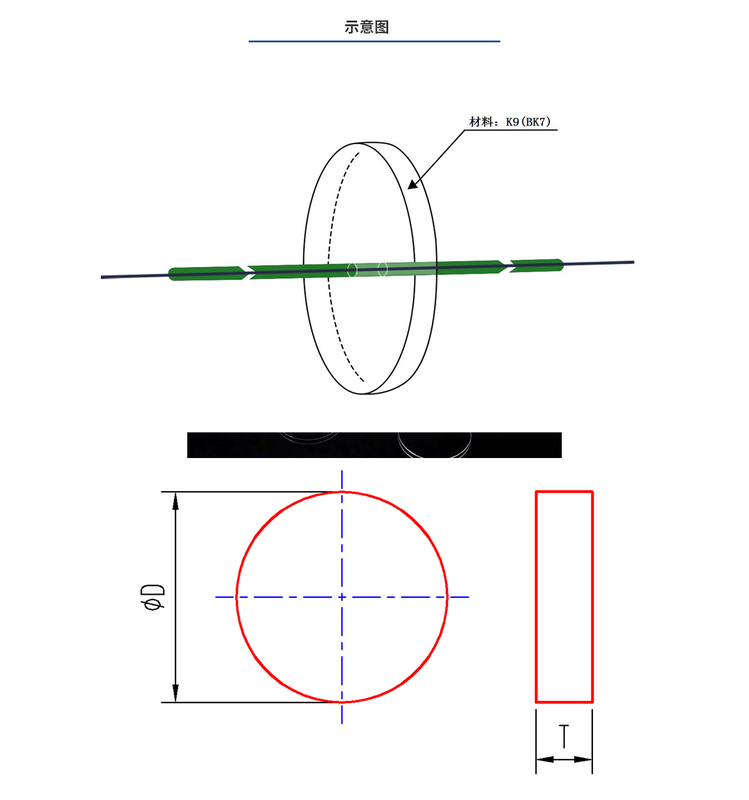

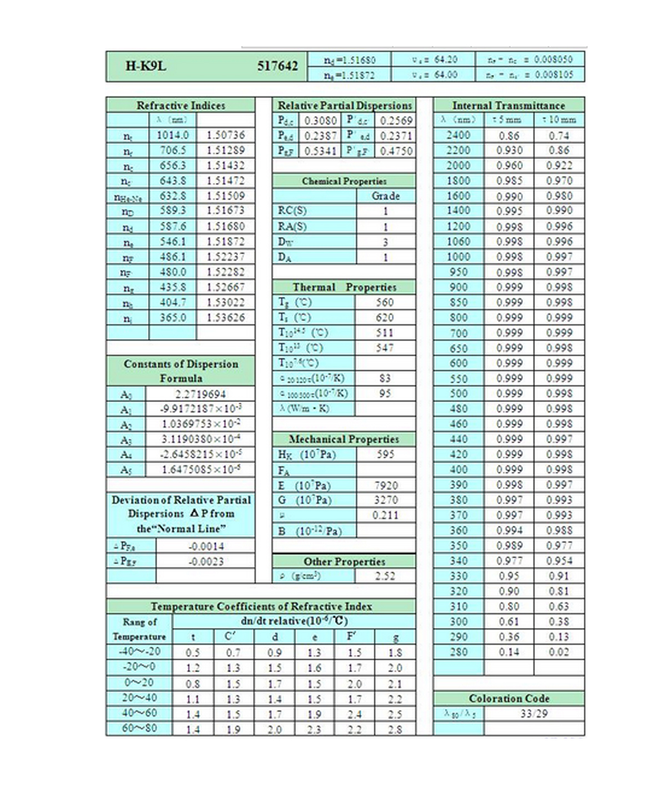

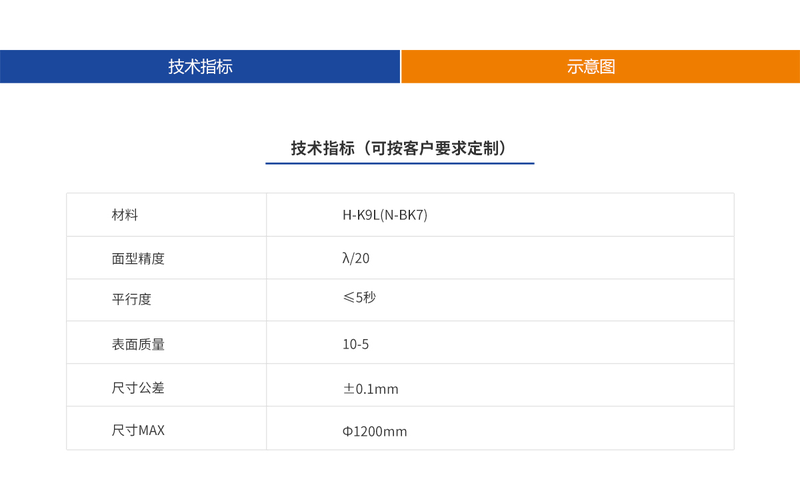

Parameter	Value
Material	H-K9L(N-BK7)
Surface Figure Accuracy	λ/20
Parallelism	≤5 arcsec
Surface Quality	10-5
Dimensional Tolerance	±0.1mm
Maximum Dimensions (Φ)	Φ1200mm
Refractive Indices [1014.0 nm]	1.50736
Refractive Indices [706.5 nm]	1.51289
Refractive Indices [656.3 nm]	1.51432
Refractive Indices [643.8 nm]	1.51472
Refractive Indices [632.8 nm]	1.51509
Refractive Indices [589.3 nm]	1.51673
Refractive Indices [587.6 nm]	1.51680
Refractive Indices [546.1 nm]	1.51872
Refractive Indices [486.1 nm]	1.52237
Refractive Indices [480.0 nm]	1.52282
Refractive Indices [435.8 nm]	1.52667
Refractive Indices [404.7 nm]	1.53022
Refractive Indices [365.0 nm]	1.53626
Constants of Dispersion Formula (A₀)	2.2719694
Constants of Dispersion Formula (A₁)	-9.9172187×10⁻³
Constants of Dispersion Formula (A₂)	1.0369753×10⁻²
Constants of Dispersion Formula (A₃)	3.1190380×10⁻⁴
Constants of Dispersion Formula (A₄)	-2.6458215×10⁻⁵
Constants of Dispersion Formula (A₅)	1.6475085×10⁻⁸
RC(S)	1
RA(S)	1
D_W	3
D_A	1
Internal Transmittance [2400 nm；5mm]	0.86
Internal Transmittance [2400 nm；10mm]	0.74
Internal Transmittance [2200 nm；5mm]	0.930
Internal Transmittance [2200 nm；10mm]	0.86
Internal Transmittance [2000 nm；5mm]	0.960
Internal Transmittance [2000 nm；10mm]	0.922
Internal Transmittance [1800 nm；5mm]	0.985
Internal Transmittance [1800 nm；10mm]	0.970
Internal Transmittance [1600 nm；5mm]	0.990
Internal Transmittance [1600 nm；10mm]	0.980
Internal Transmittance [1400 nm；5mm]	0.995
Internal Transmittance [1400 nm；10mm]	0.990
Internal Transmittance [1200 nm；5mm]	0.998
Internal Transmittance [1200 nm；10mm]	0.996
Internal Transmittance [1060 nm；5mm]	0.998
Internal Transmittance [1060 nm；10mm]	0.996
Internal Transmittance [1000 nm；5mm]	0.998
Internal Transmittance [1000 nm；10mm]	0.997
Internal Transmittance [950 nm；5mm]	0.998
Internal Transmittance [950 nm；10mm]	0.997
Internal Transmittance [900 nm；5mm]	0.999
Internal Transmittance [900 nm；10mm]	0.998
Internal Transmittance [850 nm；5mm]	0.999
Internal Transmittance [850 nm；10mm]	0.998
Internal Transmittance [800 nm；5mm]	0.999
Internal Transmittance [800 nm；10mm]	0.999
Internal Transmittance [700 nm；5mm]	0.999
Internal Transmittance [700 nm；10mm]	0.999
Internal Transmittance [650 nm；5mm]	0.999
Internal Transmittance [650 nm；10mm]	0.998
Internal Transmittance [600 nm；5mm]	0.999
Internal Transmittance [600 nm；10mm]	0.999
Internal Transmittance [550 nm；5mm]	0.999
Internal Transmittance [550 nm；10mm]	0.999
Internal Transmittance [500 nm；5mm]	0.999
Internal Transmittance [500 nm；10mm]	0.998
Internal Transmittance [480 nm；5mm]	0.999
Internal Transmittance [480 nm；10mm]	0.998
Internal Transmittance [460 nm；5mm]	0.999
Internal Transmittance [460 nm；10mm]	0.998
Internal Transmittance [440 nm；5mm]	0.999
Internal Transmittance [440 nm；10mm]	0.997
Internal Transmittance [420 nm；5mm]	0.999
Internal Transmittance [420 nm；10mm]	0.998
Internal Transmittance [400 nm；5mm]	0.999
Internal Transmittance [400 nm；10mm]	0.998
Internal Transmittance [390 nm；5mm]	0.998
Internal Transmittance [390 nm；10mm]	0.997
Internal Transmittance [380 nm；5mm]	0.997
Internal Transmittance [380 nm；10mm]	0.993
Internal Transmittance [370 nm；5mm]	0.997
Internal Transmittance [370 nm；10mm]	0.993
Internal Transmittance [360 nm；5mm]	0.994
Internal Transmittance [360 nm；10mm]	0.988
Internal Transmittance [350 nm；5mm]	0.977
Internal Transmittance [350 nm；10mm]	0.959
Internal Transmittance [340 nm；5mm]	0.977
Internal Transmittance [340 nm；10mm]	0.954
Internal Transmittance [330 nm；5mm]	0.95
Internal Transmittance [330 nm；10mm]	0.91
Internal Transmittance [320 nm；5mm]	0.90
Internal Transmittance [320 nm；10mm]	0.81
Internal Transmittance [310 nm；5mm]	0.80
Internal Transmittance [310 nm；10mm]	0.63
Internal Transmittance [300 nm；5mm]	0.61
Internal Transmittance [300 nm；10mm]	0.38
Internal Transmittance [290 nm；5mm]	0.36
Internal Transmittance [290 nm；10mm]	0.13
Internal Transmittance [280 nm；5mm]	0.14
Internal Transmittance [280 nm；10mm]	0.02
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；t]	0.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；C′]	0.7 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；d]	0.9 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；e]	1.3 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；F′]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-40~-20；g]	1.8 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；t]	1.2 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；C′]	1.3 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；d]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；e]	1.6 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；F′]	1.7 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [-20~0；g]	2.0 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；t]	0.8 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；C′]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；d]	1.7 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；e]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；F′]	2.0 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [0~20；g]	2.1 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；t]	1.1 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；C′]	1.3 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；d]	1.4 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；e]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；F′]	1.7 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [20~40；g]	2.2 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；t]	1.4 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；C′]	1.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；d]	1.7 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；e]	1.9 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；F′]	2.4 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [40~60；g]	2.5 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；t]	1.4 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；C′]	1.9 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；d]	2.0 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；e]	2.3 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；F′]	2.2 10⁻⁶/°C
Temperature Coefficients of Refractive Index (dn/dt) [60~80；g]	2.8 10⁻⁶/°C
