DT-980/982/983 Infrared Thermal Imager (DT-982)
The CEM DT-980/982/983 series intelligent interconnected infrared thermal imagers feature an innovative design, compact size, rugged durability, and high cost-performance. They also have WIFI function (983). This series of products can be directly connected to smartphones via USB, and through CEM's custom APP software, users' measurement needs can be realized on-site in real time, making them a great choice for economical entry-level enterprise users.
Save to Favorites
Overview

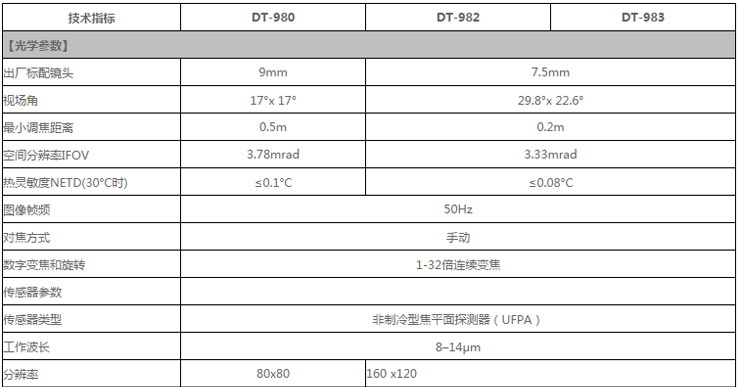

Specifications
| Parameter | Value |
|---|---|
| Factory Standard Lens | 7.5 mm |
| Field of view angle | 29.8 °x22.6° |
| Minimum Focusing Distance | 0.2 m |
| Spatial Resolution FOV | 3.33 mrad |
| Thermal Sensitivity NETD (at 30°C) | ≤0.08 °C |
| Image Frame Rate | 50 Hz |
| Focus Method | Manual |
| Digital Zoom and Rotation | 1-32x Continuous Zoom |
| Sensor Type | Uncooled Focal Plane Detector (UFPA) |
| Operating Wavelength | 8-14μm |
| Resolution | 160 x120 |
| Display | 2.8 ″ HD Color TFT |
| Image Display Mode | Infrared and Visible Light Images, Picture-in-Picture Fusion |
| Picture-in-Picture | Fusion of Visible Light Image and Infrared Image |
| Palette | Iron Red, Rainbow, Gray White, White Gray |
| Image Adjustment | Manual/Auto/Histogram |
| Range [Low Range] | -20 °C~150 °C |
| Range [High Range] | 0 °C~400 °C |
| Accuracy [Take the Larger Value] | ±2 °C (±3.6 °F) or ±2 % of the measured temperature, take the larger value |
| Spot Analysis | Center Point + High/Low Temperature |
| Emissivity | 0.01~1.0 adjustable; pre-defined material emissivity table |
| High/Low Temperature Detection | Automatically mark the highest and lowest temperature in the area |
| Measurement Calibration | Emissivity, Reflected Temperature |
| Laser/Illuminator | Less than class 2/White LED |
| Setting Commands | Unit, language, date, time, information |
| Language Selection | Multinational |
| Storage | Standard 8 GB card, maximum support 32 GB |
| Video Storage Format [60fps] | 720P@60 fps |
| Video Storage Mode | Infrared, Visible Light, Fusion |
| Image Storage Format | Standard JPEG with temperature data, maximum support 32 GB |
| Image Storage Mode | Infrared, Visible Light, Fusion |
| Visible Light Camera | 5 Megapixels |
| USB interface | USB Storage/USB Camera |
| Video output | HDMI HD Output |
| WiFi Function | None |
| Battery | Rechargeable Lithium Battery, up to four hours of use |
| Input Voltage [DC] | DC 5 V |
| Power Management | Auto Power Off and Sleep Mode |
| Operating ambient temperature | -20 °C~50 °C(-4 °F~122 °F) |
| Storage Temperature Range | -40 °C~70 °C(-40 °F~158 °F) |
| Relative Humidity | 10 %RH~90 %RH |
| IP Rating | IP65 |
| Drop Resistance Rating | 2 m drop |
| Impact Resistance [IEC60068-2-29] | 25 g(IEC60068-2-29) |
| Vibration Resistance [IEC60068-2-6] | 25 g(IEC60068-2-6) |
