Three-lead composite type photoresistor series Dual Elements Photocells Series (GLF5528)

Packages

Three-lead composite type photoresistor series Dual Elements Photocells Series (GLF5528)

Supplier

Lida-oe

Part Number

GLF5528

Specifications

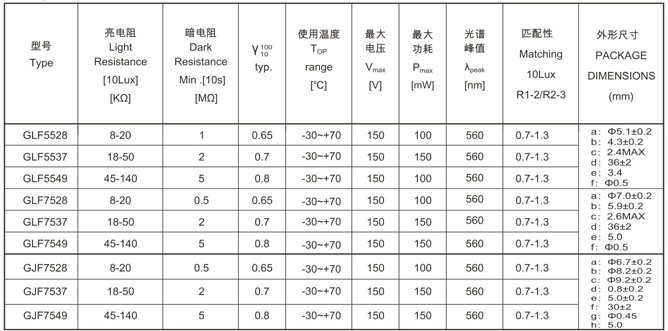

Parameter	Value
Light resistance Light Resistance [25℃；10Lux]	8-20 kΩ
Dark resistance Dark Resistance [25℃；10s]	Minimum value 1 MΩ
Y¹⁰⁰₁₀ [25℃]	Typical value 0.65
Operating temperature (T_OP) [25℃]	-30~+70 °C
Maximum Voltage (Vₘₐₓ) [25℃]	150 V
Maximum power dissipation (Pₘₐₓ) [25℃]	100 mW
Spectral peak (λₚₑₐₖ) [25℃]	560 nm
Matching Matching R1-2/R2-3 [25℃；10Lux]	0.7-1.3

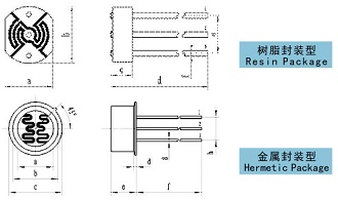

Outline dimensions-a	Φ5.1±0.2 mm
Outline dimensions-b	4.3±0.2 mm
Outline dimensions-c	2.4 mm MAX
Outline dimensions-d	36±2 mm
Outline dimensions-e	3.4 mm
Outline dimensions-f	Φ0.5 mm

Datasheet

Please provide your email to download the datasheet.

Your name

Email Address

Invalid email format. Please try again.

Send Request

Supplier Information

Lida-oe

View Supplier →

Nanyang Lida Optoelectronic Co., Ltd. is a domestically renowned and internationally known manufacturer of optical components. Main business scope: research and development, design, production, sales, and after-sales service of precision optical parts, optical thin-film products, optical lenses, optical engines, digital projection products, optical auxiliary materials, photoresistors, optoelectronic instruments, and related products. Product application areas: high-precision optical systems such as digital cameras, digital projectors, digital high-definition large-screen projection TVs, and DVDs. The company's main products are sold to countries and regions such as Japan, the United States, Germany, South Korea, Hong Kong, and Taiwan. The company has long cultivated and developed optical thin-film technology as its core technology. At present, it has formed a relatively complete optical thin-film technology industry chain, with strong equipment levels and large-scale production capacity for optical coating products. In the past three years, the company has closely followed the development trend of the optoelectronic industry, continuously increased market development efforts, and continuously optimized and adjusted its product and market structure. In the intelligent terminal field, it has successfully entered the supply chain systems of well-known domestic and foreign terminal manufacturers; it has successively won multiple honors such as the China Optoelectronic Expo Award and provincial and ministerial science and technology progress awards; the Nanyang High-tech Zone Optoelectronic Industrial Park, led by the company, has developed into a national-level high-tech industrial cluster, successfully radiating and driving more than 200 surrounding optoelectronic enterprises. The company's strategy is: "With optical thin-film technology as the core, build China's No. 1 optoelectronic brand, and build a world-class enterprise in functional thin films and advanced optical manufacturing."
